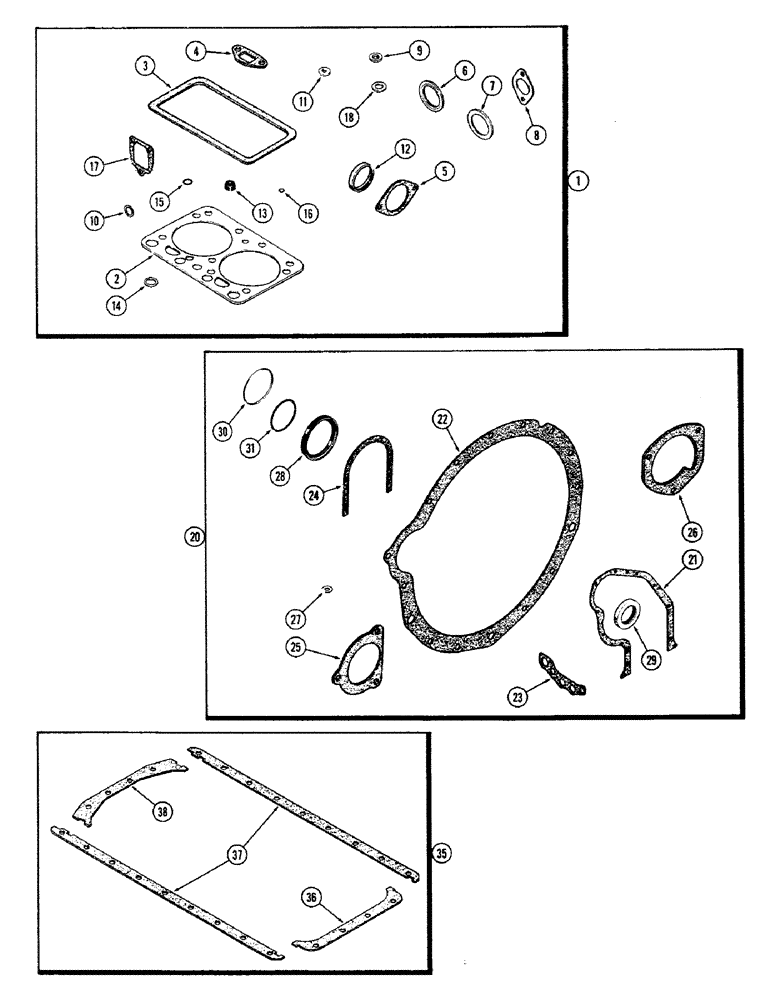

Запчасти Case 680CK (024) - ENGINE GASKET KITS, (267) DIESEL ENGINE

1

A40575

KIT

VALVE GRIND KIT (See note)

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A27972

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A21035

GASKET

- thermostat housing

1шт.

6

A11889

GASKET

- exhaust manifold

4шт.

7

A11888

MANIFOLD GASKET

- intake manifold

2шт.

8

A21055

MANIFOLD GASKET

- intake manifold elbow

1шт.

9

A23685

GASKET

- breather tube to cyl. hd. cover

2шт.

10

A10679

GASKET

- nozzle holder stud

4шт.

11

A23684

GASKET

GASKET - cyl. hd. cover studs

4шт.

12

A21034

SEAL

SEAL - thermostat

1шт.

13

A10726

SEAL

SHIELD - oil, intake valve stem

4шт.

14

A7669

RING

- cyl. head water passage

4шт.

15

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - cyl. head oil passage

2шт.

16

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

17

A22939

GASKET

- decomp. lever hsg. (Not used this appl.)

2шт.

18

A34133

GASKET

- breather, Serial Range: tube-cover

2шт.

20

A40348

KIT

CYLINDER BLOCK KIT (See note)

1шт.

21

A33018

GASKET

- timing gear cover

1шт.

22

A11649

GASKET

- cyl. block to conv. hsg. (Not used this appl.)

1шт.

23

A21084

GASKET

- oil filter base

1шт.

24

A32830

GASKET

- rear oil retainer

1шт.

25

A27933

GASKET

- starter

1шт.

26

1342741C1

GASKET

- water pump body

1шт.

27

A22670

SHIM,.005" Thk

Balancer to block .005" Thk

4шт.

27

A22671

SHIM,.010" Thk

Balancer to block .010" Thk

4шт.

28

A23085

OIL SEAL

- oil, crankshaft, rear

1шт.

29

A57342

SEAL

- oil, crankshaft, front (Replaces A23433)

1шт.

30

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - fuel pump to drive housing

1шт.

31

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crkshaft (Not used this appl.)

1шт.

35

A7616

GASKET KIT

- oil pan (See note)

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan - front (Order A7616)

1шт.

37

NSS

NOT SOLD SEPARAT

GASKET - oil pan - sides (Order A7616)

2шт.

38

NSS

NOT SOLD SEPARAT

GASKET - oil pan - rear (Order A7616)

1шт.
