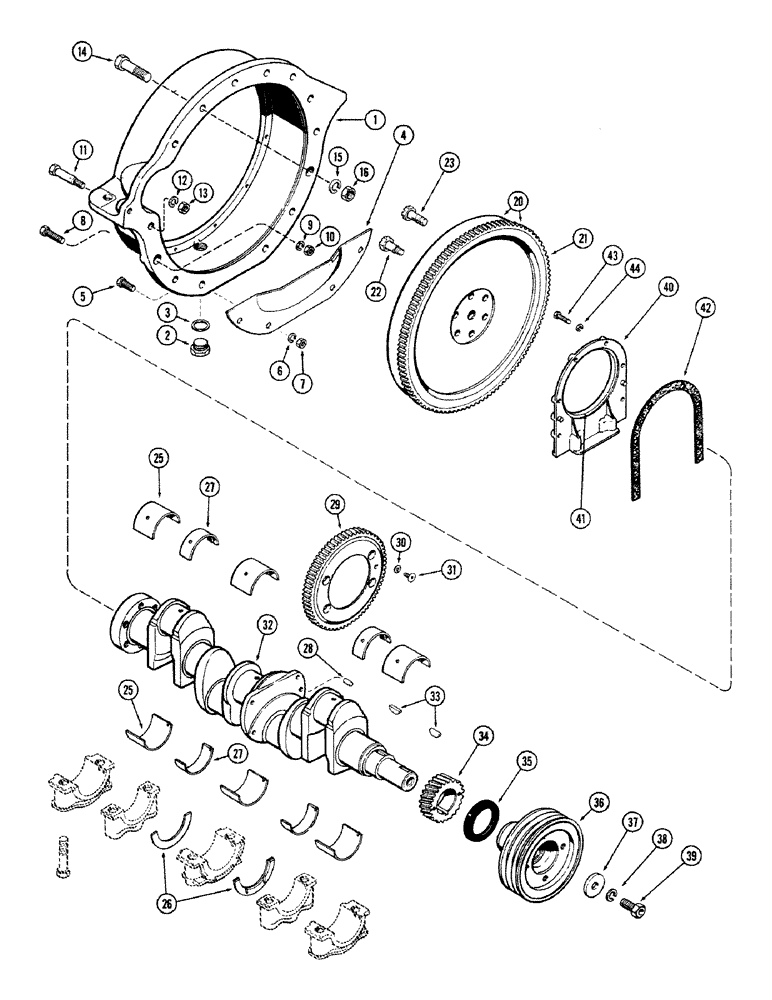

Запчасти Case 680CK (018) - FLYWHEEL AND HOUSING, (267) DIESEL ENGINE, CRANKSHAFT

1

A34710

HOUSING - flywheel (w/drain hose)

1шт.

2

A20917

PLUG

- drain, flywheel housing

1шт.

3

A20916

MANIFOLD GASKET

WASHER - drain plug, flywheel hsg.

1шт.

4

A14508

X

SHIELD - dust, clutch hsg.

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- (1/2" N. C. hex.)

2шт.

8

A20108

BOLT - flywheel hsg. (3/4 x 2-3/4" N. F. hex., spec.)

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

25-1112

NUT,3/4"-16, G5

- (3/4" N. F. hex.)

2шт.

11

A32607

STEP BOLT

- shoulder (1/2 x 3" N.C. spec.)

1шт.

11

A32608

STEP BOLT

BOLT - shoulder (1/2 x 2-3/16" N.C. spec.)

1шт.

12

92-8

LOCK WASHER,1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- (1/2" N. C. hex.)

2шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flywheel housing to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

14

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

- (1/2 x 1-3/4" N. F. hex.)

3шт.

15

92-8

LOCK WASHER,1/2"

6шт.

16

25-118

NUT,1/2"-20, G5

- (1/2" N. F. hex.)

3шт.

20

A34707

WASHER

FLYWHEEL ASSY. - eng. (w/ring gear)

1шт.

21

A27920

GEAR

- ring, flywheel

1шт.

22

A11549

STEP BOLT

BOLT - dowel, flywheel (9/16 x 1-17/32" N. F. spec.)

2шт.

23

A11550

BOLT (SPREADER)

BOLT - flywheel (5/8 x 1-1/2" N. C. spec.)

4шт.

25

A28687

LINING

LINER KIT - crankshaft brg. (Wide, std. size)

3шт.

25

A7182

KIT

LINER KIT - crankshaft brg. (Wide, -.002")

3шт.

25

A7188

BEARING LINER

LINER KIT - crankshaft brg. (Wide, -.010")

3шт.

25

A7194

KIT

LINER KIT - crankshaft brg. (Wide, -.020")

3шт.

25

A7200

KIT

LINER KIT - crankshaft brg. (Wide, -030")

3шт.

26

A27835

WASHER

- thrust, crankshaft (Std. size)

2шт.

27

A20394

LINING

LINER KIT - crankshaft brg. (Narrow, std. size)

2шт.

27

A20579

LINING

LINER KIT - crankshaft brg. (Narrow, -.002")

2шт.

27

A20582

LINING

LINER KIT - cranshaft brg. (Narrow, -.010")

2шт.

27

A20585

KIT

LINER KIT - crankshaft brg. (Narrow, -.020")

2шт.

27

A20588

KIT

LINER KIT - crankshaft brg. (Narrow, -.030")

2шт.

28

A8134

PIN

- dowel, balancer drive drive gear

1шт.

29

A22576

GEAR

- drive, balancer

1шт.

30

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

31

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - mtg., balancer gear

4шт.

32

A22578

CRANKSHAFT - engine (w/balancer)

1шт.

33

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & fan drive pulley #C, 5/16" x 1 1/8", HT

2шт.

34

A27837

GEAR

- crankshaft, front

1шт.

35

A23433

OIL SEAL

- oil, frt. crankshaft (2-5/8 x 3-5/8 x 1/2")

1шт.

36

A34702

X

PULLEY - fan drive

1шт.

37

A27903

WASHER

- fan drive pulley screw

1шт.

38

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

39

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- lower fan drive pulley (5/8 x 1-1/2" N. F. spec.)

1шт.

40

A32182

RETAINER

ASSY. - rear oil seal

1шт.

41

A23085

OIL SEAL

- oil (4-3/4 x 5-3/4 x 1/2")

1шт.

42

A32830

GASKET

- rear oil seal retainer

1шт.

43

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

44

92-6

LOCK WASHER,3/8"

6шт.
