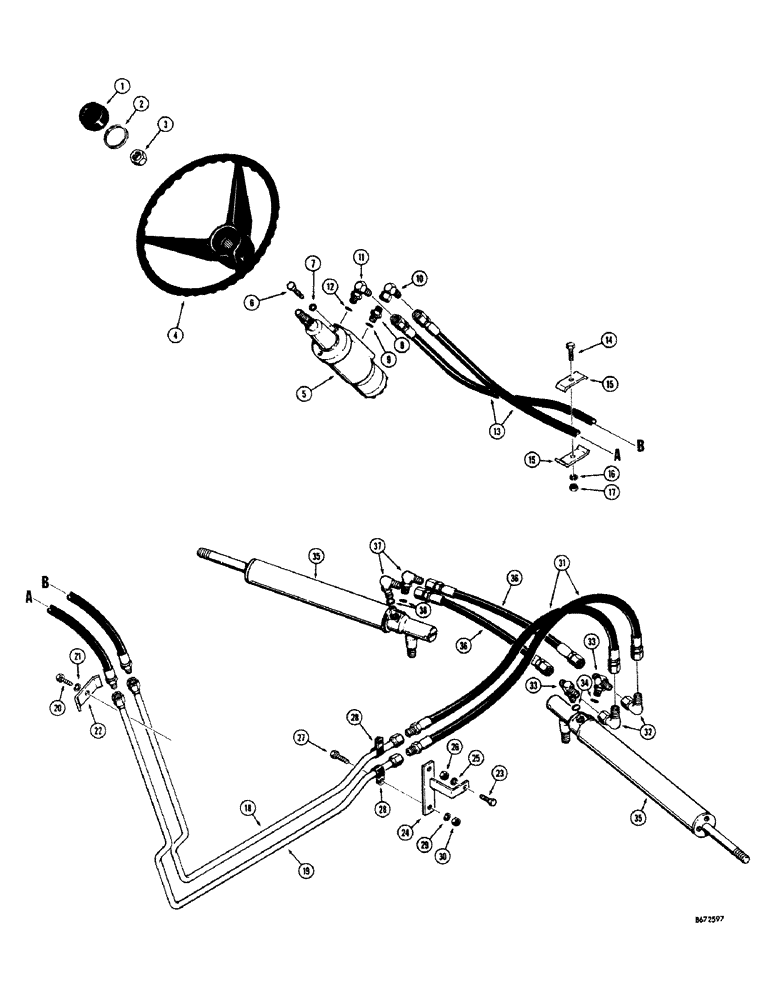

Запчасти Case 680CK (118) - STEERING WHEEL AND STEERING CYLINDER HYDRAULICS (41) - STEERING

1

C10569

MEDALLION - steering wheel

1шт.

2

A70392

RING

- retaining, medallion

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel to manual pump

1шт.

4

A37261

X

WHEEL - steering, 15" O.D.

1шт.

5

L13405

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, manual, Parts list Figure 120

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

7

92-5

LOCK WASHER,5/16"

3шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight

1шт.

10

218-981

X

ELBOW - swivel, 90 degrees

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

13

A36162

TUBE

HOSE - manual pump to steering cylinder (28-7/8" long)

2шт.

14

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

15

A14078

CLAMP

- hose

2шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

18

L10890

TUBE - manual steering pump to steering cylinders, rear port

1шт.

19

L10891

TUBE - manual steering pump to steering cylinders, front port 0.5" OD

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

A14078

CLAMP

- tube

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

L13413

BRACKET - tube clamp

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

NLS

NO LONGER SERVICED

- tube

2шт.

29

92-5

LOCK WASHER,5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

31

L13415

HOSE,0.38" ID x 17.25", SAE 100R1

ASSY, , Cylinder to Tube 0.38" ID x 17.25", SAE 100R1

2шт.

32

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- swivel, 90 degrees

2шт.

33

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, side

2шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

35

A55158

CYLINDER BLOCK

CYLINDER - steering, 1-3/4 I.D. x 9" stroke, Parts list Figure 120

2шт.

36

L12347

PIPE

HOSE - steering cylinder crossover (15-1/4" long)

2шт.

37

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degrees

2шт.

38

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
