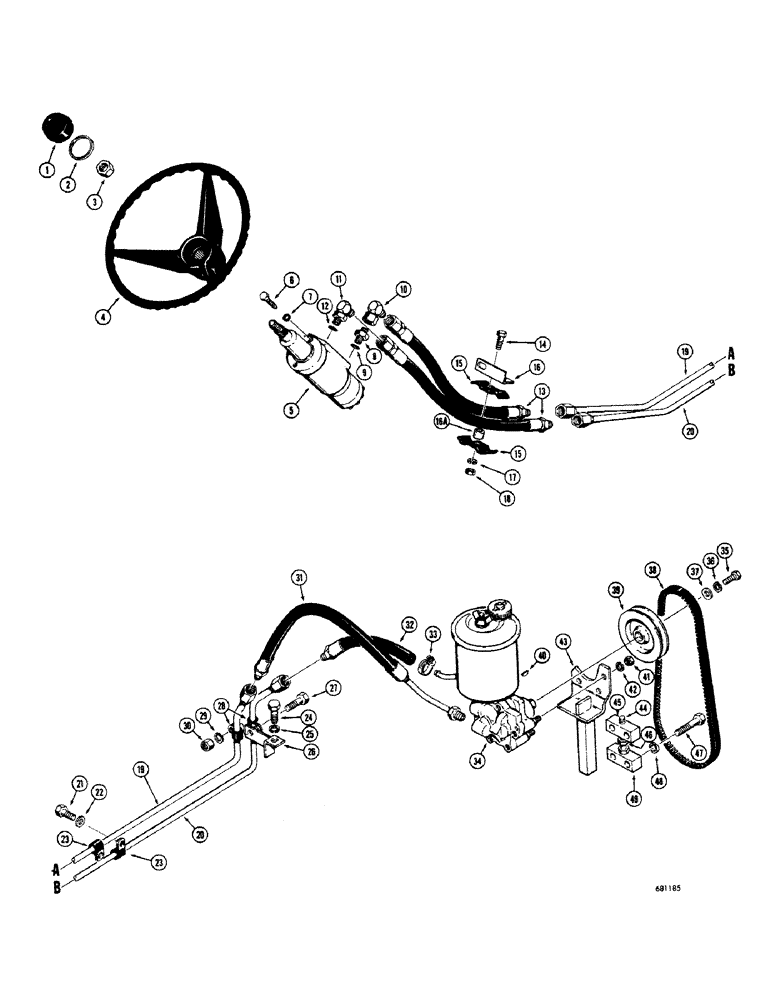

Запчасти Case 680CK (116) - STEERING WHEEL AND POWER STEERING HYDRAULICS (41) - STEERING

1

C10569

MEDALLION - steering wheel (When stock is exhausted, order L15282 cap for service)

1шт.

L15282

CAP

MEDALLION - steering wheel

1шт.

2

A70392

RING

- retaining, medallion (Used with C10569 medallion only)

1шт.

3

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel to manual pump

1шт.

4

A37261

X

WHEEL - steering, 15" O.D.

1шт.

5

L13405

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering, manual, Parts list Figure 120

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

7

92-5

LOCK WASHER,5/16"

3шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - male, straight

1шт.

10

218-981

X

ELBOW - swivel, 90 degrees

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

13

A36162

TUBE

HOSE - manual pump to power steering pump (28-7/8" long)

2шт.

14

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

15

R15257

CLAMP

- hose

2шт.

16

L13407

BRACKET - clamp

1шт.

16a

D33829

BUSHING

SPACER - clamp

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

19

L13799

TUBE - power steering pump to manual pump, pressure 0.5" OD

1шт.

20

L13800

TUBE,0.5" OD

- manual pump to power steerng pump, return

1шт.

21

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

22

195-24

WASHER,5/16"

2шт.

23

49836

CLAMP

- tube

2шт.

24

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

HHCS - 7/16" - 18 NC x 1"

1шт.

25

92-7

LOCK WASHER,7/16"

1шт.

26

L13801

BRACKET - tube clamp mounting

1шт.

27

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

28

49836

CLAMP

- tube

2шт.

29

92-8

LOCK WASHER,1/2"

1шт.

30

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

31

L13804

HOSE

- at power steering pump, pressure (17-1/2" long)

1шт.

32

L13805

HOSE ASSY.

HOSE - at power steerng pump, return (7-1/4" long)

1шт.

33

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

1шт.

34

L15032

PUMP

- power steering, Parts list Figure 122

1шт.

35

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

36

92-5

LOCK WASHER,5/16"

1шт.

37

A34092

WASHER

- special, pulley

1шт.

38

L11111

BELT,55.00" L

Power steering 55.00" L

1шт.

39

L11577

PULLEY

- power steering

1шт.

40

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

41

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

3шт.

42

92-6

LOCK WASHER,3/8"

3шт.

43

L11575

BRACKET

- power steering pump mounting

1шт.

44

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

45

L13426

STRAP - mounting bracket, upper

1шт.

46

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., jam (5/16" - 18 NC)

1шт.

47

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

48

92-6

LOCK WASHER,3/8"

4шт.

49

L13427

STRAP

- mounting bracket, lower

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
