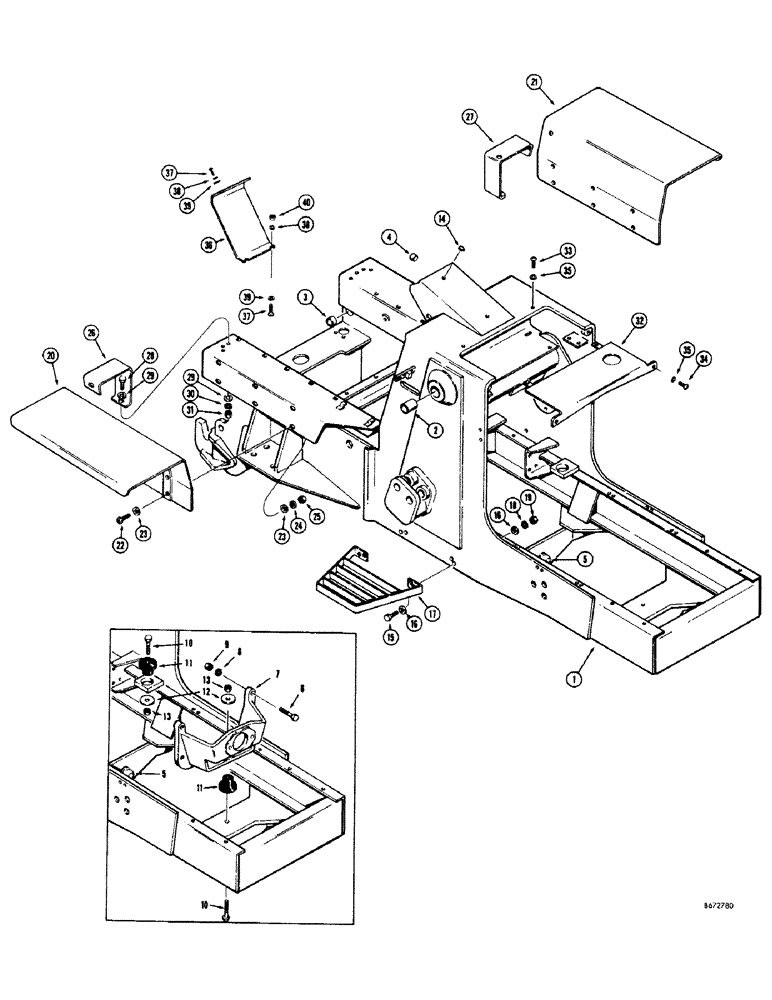

Запчасти Case 680CK (128) - CHASSIS, FENDERS, ENGINE MOUNTS AND RELATED PARTS (39) - FRAMES AND BALLASTING

1

L13552

CHASSIS ASSEMBLY - tractor

1шт.

2

D34506

BUSHING,51.02mm ID x 63.5mm OD x 63.5mm L

- loader lift frame pivot bracket

2шт.

3

A19288

BUSHING

- counterweight or backhoe upper mounting pin hole

2шт.

4

L10962

BUSHING - plate, manual steering pump mounting

1шт.

5

A27445

BALL

- radius frame pivot

1шт.

6

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

7

L10793

BRACKET

- equipment pump and engine mounting

1шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

25-1012

NUT,3/4"-10, G5

4шт.

10

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

HHCS - 5/8" - 11 NC x 4"

3шт.

11

A19067

MOUNTING PARTS

MOUNT - engine, rubber

3шт.

12

A17516

WASHER

- special

3шт.

13

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

3шт.

14

A56527

PLUG - cowl, cockpit

2шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

8шт.

16

195-25

WASHER,3/8"

- plain () 3/8"

16шт.

17

L13647

STEP

- cockpit entry

2шт.

18

92-6

LOCK WASHER,3/8"

8шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

20

L13646

FENDER - drive wheel, R.H.

1шт.

21

L13645

FENDER - drive wheel, L.H.

1шт.

22

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

12шт.

23

195-25

WASHER,3/8"

- plain () 3/8"

24шт.

24

92-6

LOCK WASHER,3/8"

12шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

12шт.

26

L11076

GUARD - rear light, R.H.

1шт.

27

L11075

GUARD - rear light, L.H.

1шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

29

195-21

WASHER,5/16"

- plain () 5/16"

8шт.

30

92-5

LOCK WASHER,5/16"

4шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

32

L13777

COVER - hydraulic tank

1шт.

33

77-48

SCREW,Truss, 1/4" - 20 x 1/2"

- truss head (1/4" - 20 NC x 1/2")

2шт.

34

77-412

SCREW

- truss head (1/4" - 20 NC x 3/4")

2шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

36

L11080

COVER - console access

1шт.

37

173-214

SCREW,Phil Rnd Hd, 1/4" - 20 x 3/4"

- Phillips head (1/4" - 20 NC x 3/4") Zinc plated

4шт.

38

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

39

195-518

WASHER,1/4", SAE

- plain (1/4") Zinc plated

4шт.

40

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.
