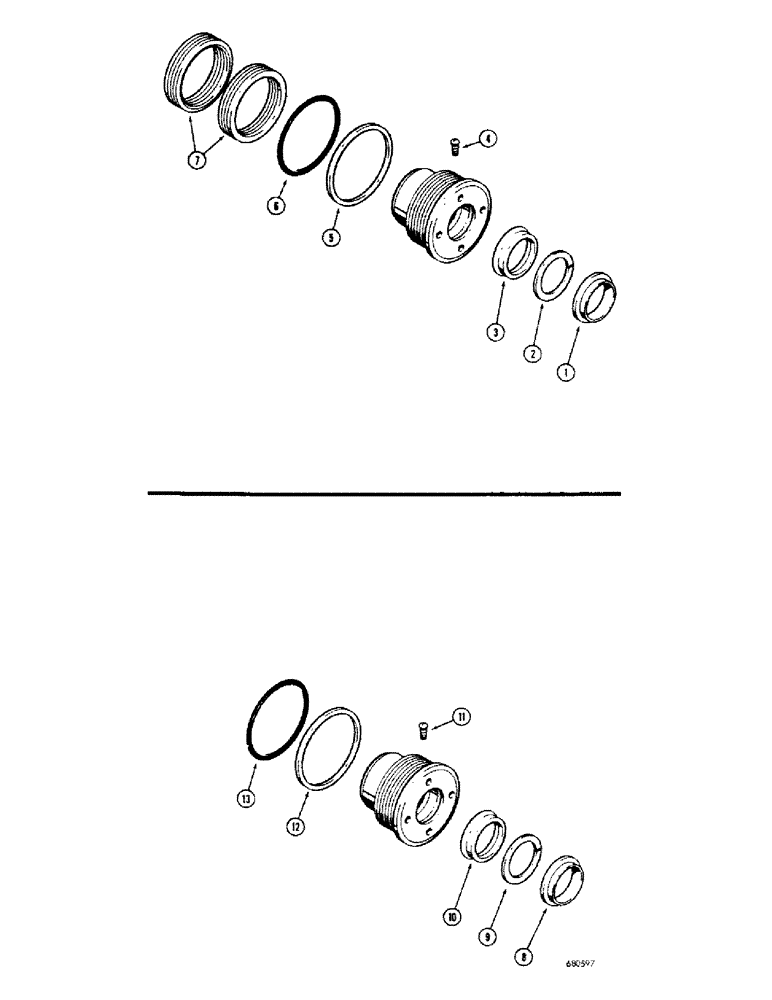

Запчасти Case 680CK (266) - CYLINDER PACKING KITS, 4" CYLINDER TUBE I.D. X 2-1/4" PISTON ROD (35) - HYDRAULIC SYSTEMS

D41210

X

KIT - cylinder packing, gland type cylinder

1шт.

1

D39360

WIPER

- piston rod

1шт.

2

D39539

RING

- backup, rod seal

1шт.

3

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27382

RING

- backup, gland seal

1шт.

6

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal

1шт.

7

D40689

PACKING

- piston

2шт.

D42877

GLAND

KIT - gland packing, D42877 cylinder

1шт.

8

D39360

WIPER

- piston rod, D42877 cylinder packing kit

1шт.

9

D39539

RING

- backup, rod seal, D42877 cylinder packing kit

1шт.

10

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod, D42877 cylinder packing kit

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42877 cylinder packing kit

1шт.

12

D27382

RING

- backup, gland seal, D42877 cylinder packing kit

1шт.

13

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D42877 cylinder packing kit

1шт.
