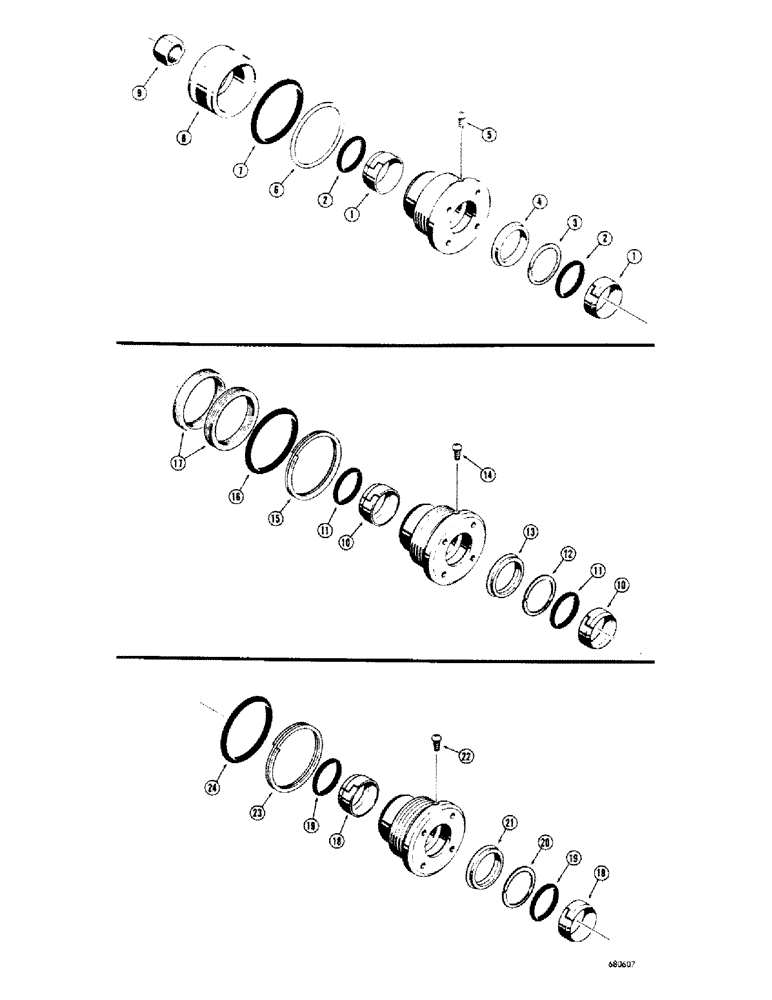

Запчасти Case 680CK (262) - CYLINDER PACKING KITS, 4" CYLINDER TUBE I.D. X 1-3/4" PISTON ROD (35) - HYDRAULIC SYSTEMS

D37359

SEAL KIT

KIT - cylinder packing, gland type cylinder

1шт.

When the cylinder packing kit is exhausted, use D42875 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D43112 piston packings and (1) D43113 bronze centering ring for service.

1шт.

1

D27432

SHIM

- piston rod

2шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

3

D28499

RING

- backup, piston rod seal

1шт.

4

D36970

CUP

SEAL - piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D36095

BACK-UP RING

- backup, gland seal

1шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal

1шт.

8

D36964

PACKING

- piston

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

D41400

X

KIT - cylinder packing, gland type cylinder (Order with 1 - D43113 bronze packing ring when used on cylinders not having bronze packing ring)

1шт.

When the cylinder packing kit is exhausted, use D42875 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D43112 piston packings and (1) D43113 bronze centering ring for service.

1шт.

10

D27432

SHIM

- piston rod, D41400 cyclinder packing kit

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper, D41400 cyclinder packing kit

2шт.

12

D28499

RING

- backup, piston rod seal, D41400 cyclinder packing kit

1шт.

13

D36970

CUP

SEAL - piston rod, D41400 cyclinder packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D41400 cyclinder packing kit

1шт.

15

D27382

RING

- backup, gland seal, D41400 cyclinder packing kit

1шт.

16

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D41400 cyclinder packing kit

1шт.

17

D40689

PACKING

- piston, D41400 cyclinder kit

2шт.

D42875

GASKET KIT

KIT - gland packing, D42875 cylinder

1шт.

When the cylinder packing kit is exhausted, use D42875 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit. When servicing an early production cylinder containing a fabric piston packing ring, order (2) D43112 piston packings and (1) D43113 bronze centering ring for service.

1шт.

18

D27432

SHIM

- piston rod, D42875 cylinder gland packing kit

2шт.

19

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper, D42875 cylinder gland packing kit

2шт.

20

D28499

RING

- backup, piston rod, D42875 cylinder gland packing kit

1шт.

21

D36970

CUP

SEAL - piston rod, D42875 cylinder gland packing kit

1шт.

22

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42875 cylinder gland packing kit

1шт.

23

D27382

RING

- backup, gland seal, D42875 cylinder gland packing kit

1шт.

24

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D42875 cylinder gland packing kit

1шт.
