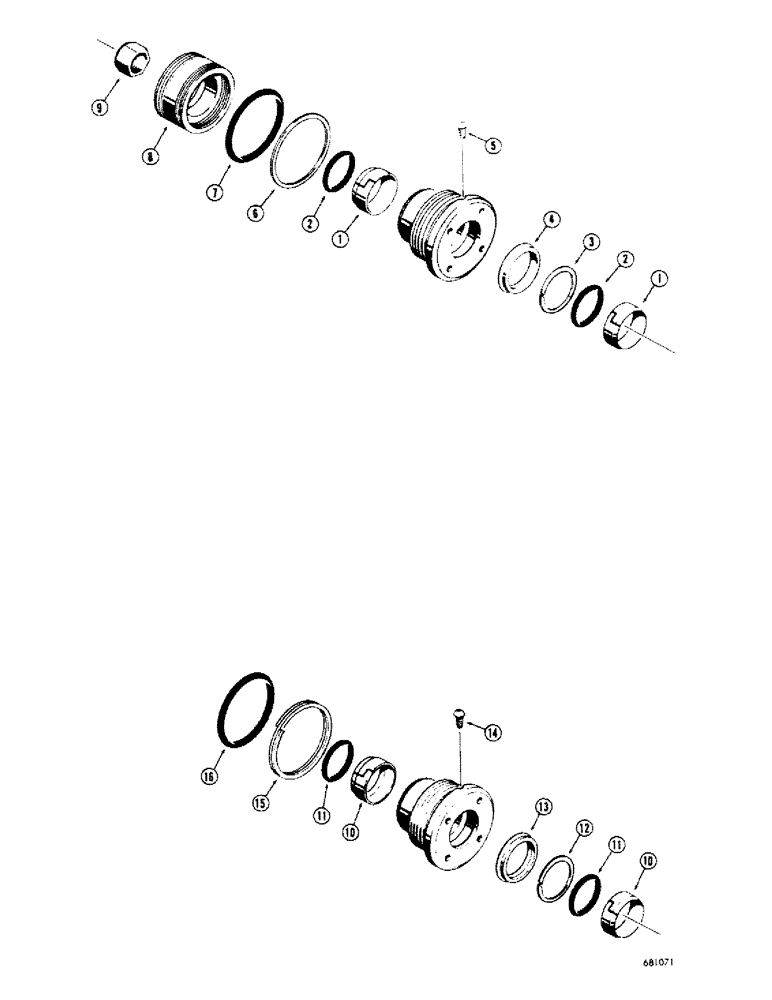

Запчасти Case 680CK (260) - CYLINDER PACKING KITS, 3-1/2" CYLINDER TUBE I.D. X 2" PISTON ROD (35) - HYDRAULIC SYSTEMS

D37357

KIT

- cylinder packing, gland type cylinder

1шт.

When D37357 cylinder packing kit is exhausted, use D42874 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit.

1шт.

1

D27380

SCRAPER RING

WIPER - piston rod

2шт.

2

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

3

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1шт.

4

D36971

RING

SEAL - piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

7

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland seal

1шт.

8

D36963

PACKING

- piston

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

D42874

PACKING GLAND

KIT - gland packing

1шт.

When D37357 cylinder packing kit is exhausted, use D42874 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit.

1шт.

10

D27380

SCRAPER RING

WIPER - piston rod, D42874 Cylinder Gland packing kit

2шт.

11

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper, D42874 Cylinder Gland packing kit

2шт.

12

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal, D42874 Cylinder Gland packing kit

1шт.

13

D36971

RING

SEAL - piston rod, D42874 Cylinder Gland packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42874 Cylinder Gland packing kit

1шт.

15

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal, D42874 Cylinder packing kit

1шт.

16

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D42874 Cylinder packing kit

1шт.
