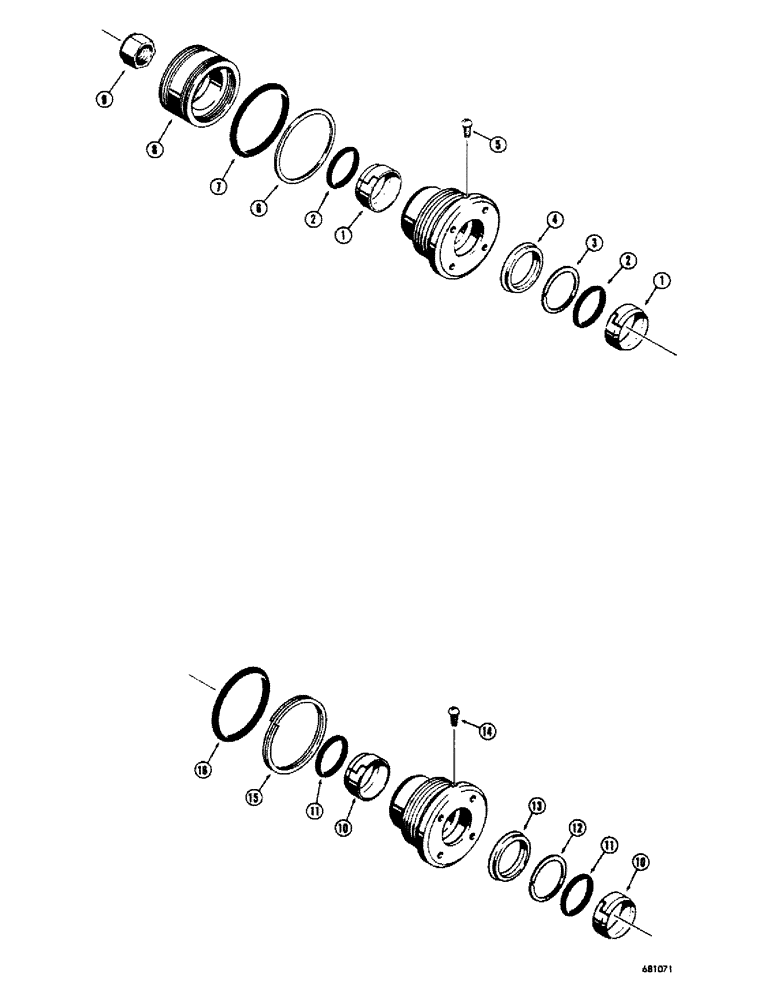

Запчасти Case 680CK (258) - CYLINDER PACKING KITS, 3" CYLINDER TUBE I.D. X 1-3/4" PISTON ROD (35) - HYDRAULIC SYSTEMS

D37355

KIT - cylinder packing, gland type cylinder

1шт.

When D37355 cylinder packing kit is exhausted, use D42872 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit.

1шт.

1

D27432

SHIM

- piston rod

2шт.

2

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

3

D28499

RING

- backup, piston rod seal

1шт.

4

D36970

CUP

SEAL - piston rod

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

6

D28049

RING

- backup, gland seal

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring, gland seal

1шт.

8

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF)

1шт.

D42872

GLAND

KIT - gland packing, D42872 cylinder kit

1шт.

When D37355 cylinder packing kit is exhausted, use D42872 gland packing kit for service. If complete cylinder packings are required, piston packings must be ordered as individual items plus (1) gland packing kit.

1шт.

10

D27432

SHIM

- piston rod, D42872 cylinder gland packing kit

2шт.

11

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper, D42872 cylinder gland packing kit

2шт.

12

D28499

RING

- backup, piston rod seal, D42872 cylinder gland packing kit

1шт.

13

D36970

CUP

SEAL - piston rod, D42872 cylinder gland packing kit

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42872 cylinder gland packing kit

1шт.

15

D28049

RING

- backup, gland seal, D42872 cylinder gland packing kit

1шт.

16

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring, gland seal, D42872 cylinder gland packing kit

1шт.
