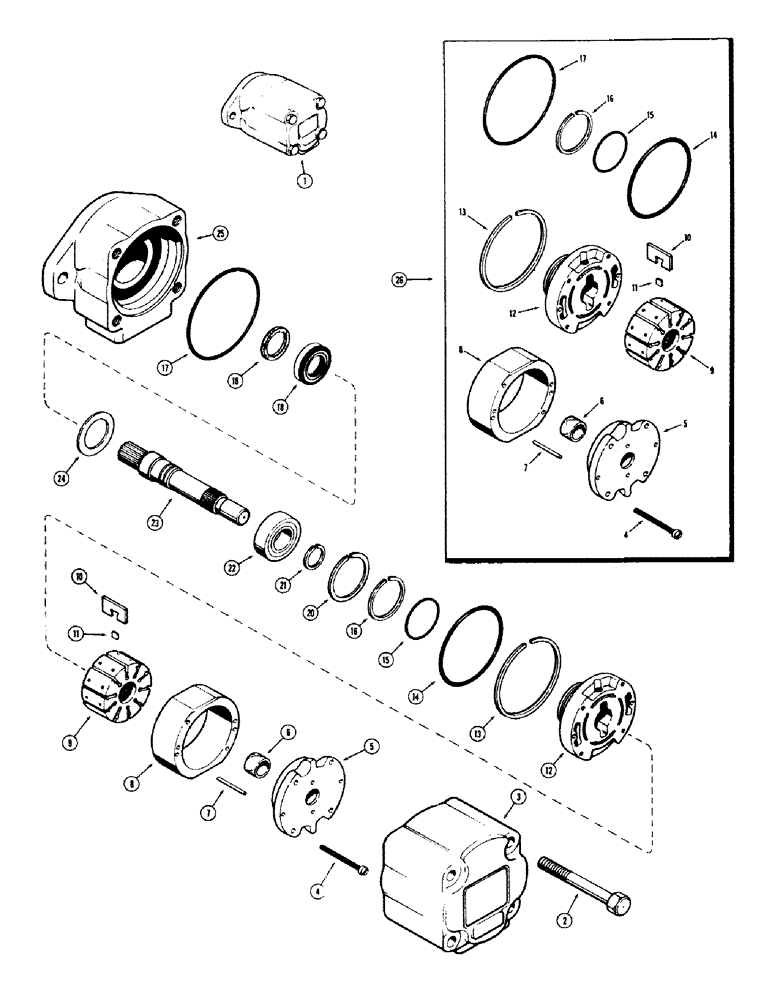

Запчасти Case 680CK (250) - L11273 EQUIPMENT PUMP, USED BEFORE TRACTOR SERIAL NO. 9101905 (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L11273
PUMP ASSEMBLY - hydraulic, 27 G.P.M. at 2000 P.S.I at 2000 R.P.M. (Vickers no. 25V17A-11C10L)
1шт.
2
13-868
BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5
4шт.
3
L30569
COVER
- inlet
1шт.
4
L30551
SCREW - special
2шт.
Part of rotor kit P/N L30566.
1шт.
5
NSS
NOT SOLD SEPARAT
PLATE - wear (Order L30566 rotor kit for service)
1шт.
Part of rotor kit P/N L30566.
1шт.
6
NSS
NOT SOLD SEPARAT
BUSHING - wear plate
1шт.
Part of rotor kit P/N L30566.
1шт.
7
L30548
PIN - headless
2шт.
Part of rotor kit P/N L30566.
1шт.
8
L30549
RING - wear
1шт.
Part of rotor kit P/N L30566.
1шт.
9
L30550
ROTOR - pump
1шт.
Part of rotor kit P/N L30566.
1шт.
L30567
KIT
- vane
1шт.
10
NSS
NOT SOLD SEPARAT
VANE - outer
10шт.
Part of rotor kit P/N L30566.
1шт.
11
NSS
NOT SOLD SEPARAT
INSERT - vane
10шт.
Part of rotor kit P/N L30566.
1шт.
12
NSS
NOT SOLD SEPARAT
PLATE - pressure, pump (Order L30566 kit for service)
1шт.
Part of rotor kit P/N L30566.
1шт.
L30568
SEAL KIT
KIT - seal
1шт.
13
L30564
RING
- backup
1шт.
Part of rotor kit P/N L30566.
1шт.
14
L30556
O-RING
SEAL - "O"ring (3-1/2" I.D. x 1/8")
1шт.
Part of rotor kit P/N L30566.
1шт.
15
L30555
O-RING
SEAL - "O"ring (1-47/64" I.D. x 1/8")
1шт.
Part of rotor kit P/N L30566.
1шт.
16
L30563
RING
- backup
1шт.
Part of rotor kit P/N L30566.
1шт.
17
L30557
O-RING
SEAL - "O"ring, body (3-55/64" I.D. x 1/8")
1шт.
Part of rotor kit P/N L30566.
1шт.
18
L30562
SEAL
- shaft, pump
1шт.
19
L30560
WIPER
- felt, shaft
1шт.
20
L30559
RING, LOCKING
RING - retaining, bearing (Outer)
1шт.
21
A27576
SNAP RING,#98, Ext
Ring, Snap, , bearing (inner) #98, Ext
1шт.
22
L30554
BEARING, BALL
BEARING - shaft
1шт.
23
L30545
SHAFT
- pump
1шт.
24
L30558
WASHER
- spacer
1шт.
25
D72834
FILTER
BODY - outlet, pump (Replaces L30565)
1шт.
26
L30566
KIT
- rotor, pump, Includes: Ref. 4 - 17
1шт.
Выбрано товаров: 42
