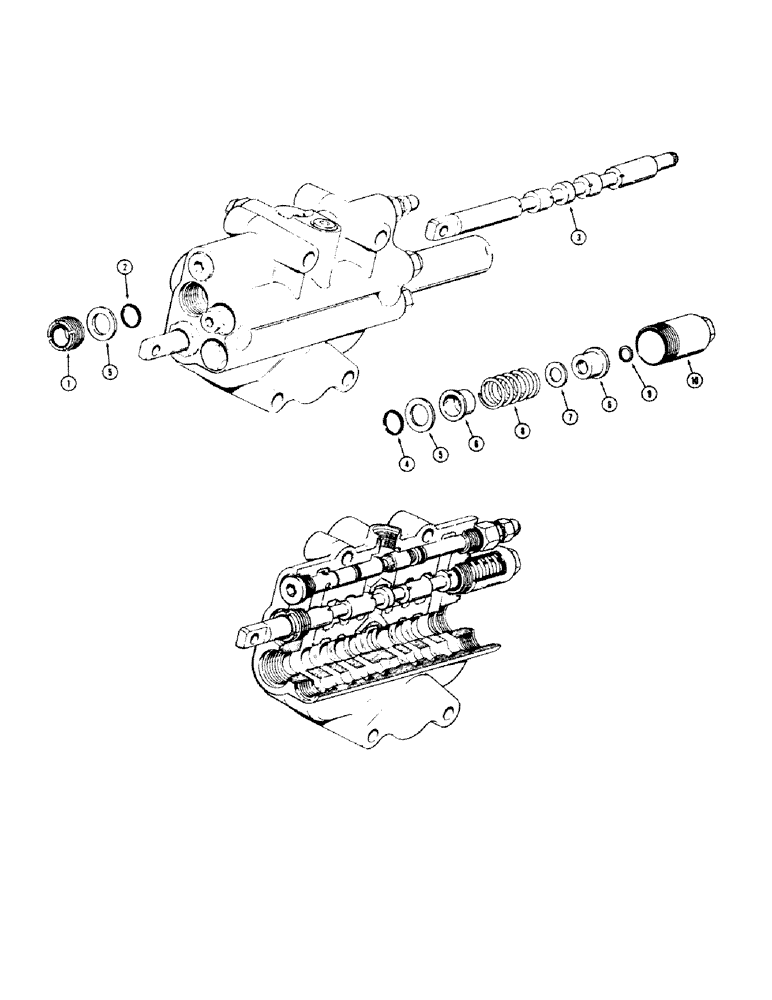

Запчасти Case 680CK (234) - THREE POSITION SPOOLS - DOUBLE ACTING, USED ON L15308 3 SPOOL VALVE ONLY (35) - HYDRAULIC SYSTEMS

D37051

SPOOL

ASSEMBLY - three position (Color code - blue or letter code - X), Serial Range: .73710"-.73719"

1шт.

D37052

SPOOL

ASSEMBLY - three position (Color code - yellow or letter code - Y), Serial Range: .73720"-.73729"

1шт.

D37053

SPOOL

ASSEMBLY - three position (Color code - green or letter code - Z), Serial Range: .73730"-.73740"

1шт.

1

L30744

GLAND

AND WIPER - spool

1шт.

2

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

4

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

A14535

RETAINER

- seal

2шт.

6

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

7

A25286

WASHER

- special

1шт.

8

A14534

SPRING

- spool return

1шт.

9

A27020

RING

SNAP RING - spring retainer

1шт.

10

A14529

CAP

- spool

1шт.
