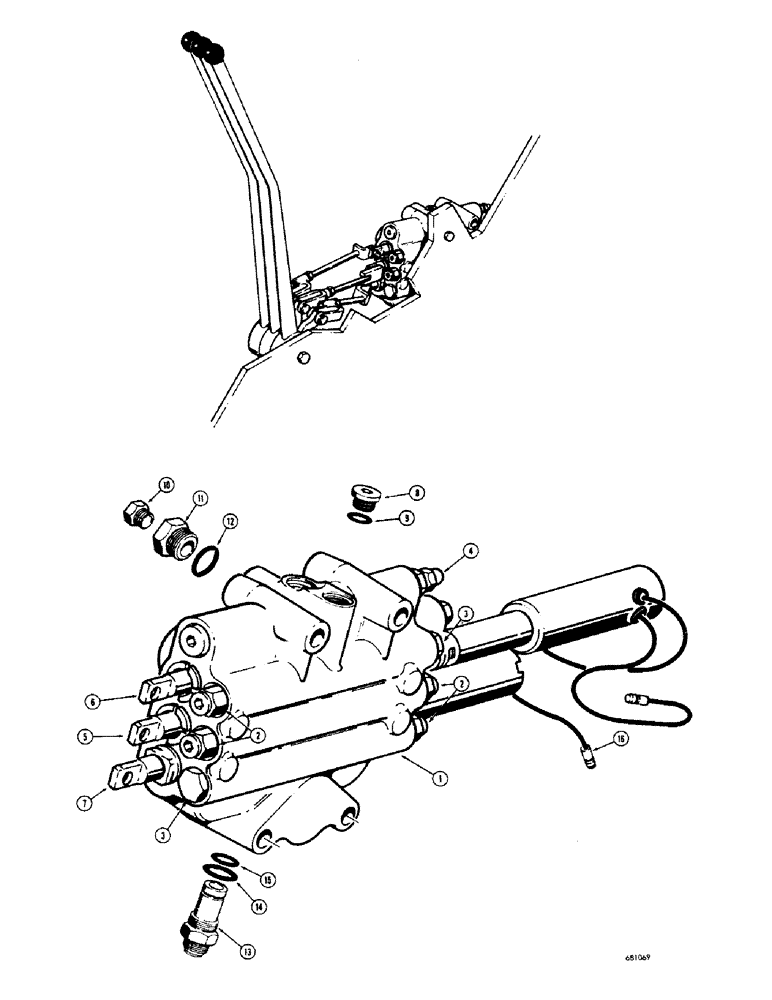

Запчасти Case 680CK (228) - L15308 LOADER CONTROL VALVE (3 SPOOL) (35) - HYDRAULIC SYSTEMS

1

L15308

VALVE

- loader control, three spool

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - secondary relief, Parts list Figure 236

4шт.

3

NSS

NOT SOLD SEPARAT

VALVE - check, Parts list Figure 236

2шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - three position with solenoid, Parts list Figure 232

1шт.

5

L30954

SPOOL

- three position with solenoid, Parts list Figure 232

1шт.

L30640

SPOOL - three position with solenoid, Parts list Figure 232

1шт.

L30955

SPOOL

- three position with solenoid, Parts list Figure 232

1шт.

L30956

SPOOL

- three position with solenoid, Parts list Figure 232

1шт.

6

D37050

SPOOL

- three position without solenoid (Parts list page 234)

1шт.

D37051

SPOOL

- three position without solenoid, Parts list Figure 234

1шт.

D37052

SPOOL

- three position without solenoid, Parts list Figure 234

1шт.

D37053

SPOOL

- three position without solenoid, Parts list Figure 234

1шт.

7

L30962

KIT

SPOOL - four position (When stock is exhausted, order L32150 spool for service), Parts list Figure 230

1шт.

L32150

SPOOL

- four position, Parts list Figure 230

1шт.

L30963

SPOOL - four position (When stock is exhausted, order L32151 spool for service), Parts list Figure 230

1шт.

L32151

SPOOL

- four position, Parts list Figure 230

1шт.

L30964

KIT

SPOOL - four position (When stock is exhausted, order L32152 spool for service), Parts list Figure 230

1шт.

L32152

SPOOL

- four position, Parts list Figure 230

1шт.

L30965

SPOOL - four position (When stock is exhausted, order L32153 spool for service), Parts list Figure 230

1шт.

L32153

SPOOL

- four position, Parts list Figure 230

1шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port Hex Soc, 3/4"-16 ORB

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, plug

1шт.

10

L30683

X

PLUG - pressure check adapter

1шт.

11

D38825

ADAPTER

- pressure check

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, adapter

1шт.

13

L30446

FITTING

CONNECTOR - power beyond

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, connector (Large)

1шт.

15

L32680

RING

SEAL - "O"ring, connector (Small) (Replaces A25590)

1шт.

16

L11778

CONNECTOR, ELEC

TERMINAL - electrical, bullet type

2шт.
