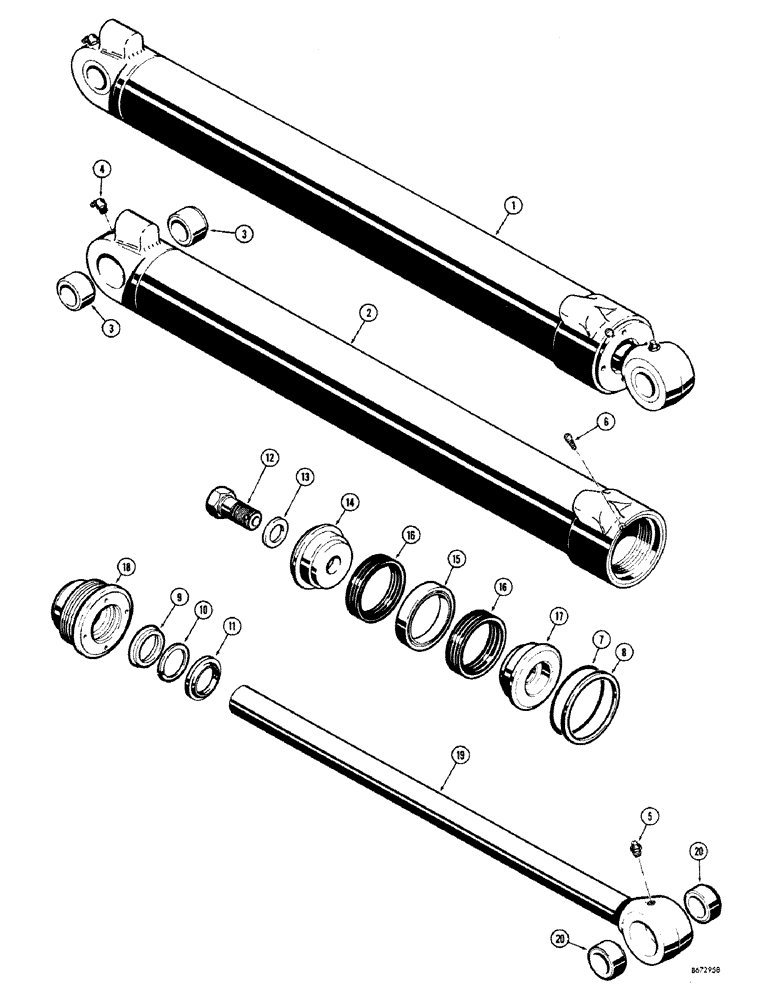

Запчасти Case 680CK (224) - D43575 BACKHOE CROWD CYLINDER (35) - HYDRAULIC SYSTEMS

1

D43575

CYLINDER ASSY.

CYLINDER - hydraulic, crowd (4-1/2" I.D. x 35-1/8" stroke)

1шт.

2

D43576

CYLINDER

TUBE - cylinder

1шт.

3

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- tube

2шт.

4

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D42878

GLAND

KIT - packing, gland type cylinder

1шт.

6

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

7

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

8

D38932

BACK-UP RING

RING - backup, gland seal

1шт.

9

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

SEAL - rod

1шт.

10

D39539

RING

- backup, rod seal

1шт.

11

D39360

WIPER

- rod

1шт.

12

D38425

BOLT

- special

1шт.

13

D36434

WASHER

- special

1шт.

14

D46931

PISTON

- split, bolt end

1шт.

15

D42474

PACKAGE, RINGS

RING - packing, piston

1шт.

16

D42503

PACKING

- piston, chevron

2шт.

17

D46425

PISTON

- split, eye end

1шт.

18

D39369

GLAND

ASSEMBLY - packing

1шт.

19

D38965

HOUSING

ROD - piston (2-1/4" dia.)

1шт.

20

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- rod

2шт.
