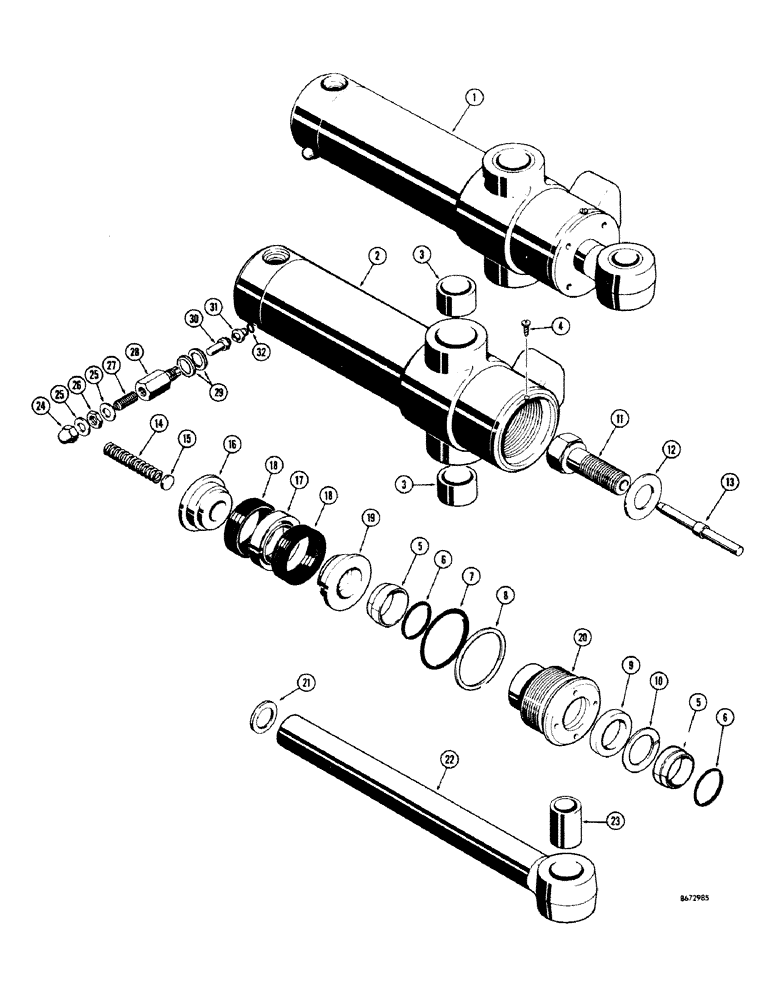

Запчасти Case 680CK (220) - D37625 AND D37626 BACKHOE SWING CYLINDERS (35) - HYDRAULIC SYSTEMS

1

D37625

CYLINDER ASSY.

CYLINDER - hydraulic, swing (L.H.) 4" I.D. x 11" stroke

1шт.

D37626

HYDRAULIC CYLINDER

CYLINDER - hydraulic, swing (R.H.) 4" I.D. x 11" stroke

1шт.

2

D37737

CYLINDER

TUBE - cylinder, L.H.

1шт.

D37738

CYLINDER

TUBE - cylinder, R.H.

1шт.

3

D30735

BUSHING,51.03mm ID x 60.33mm OD x 28.57mm L

- tube

2шт.

D42875

GASKET KIT

KIT - packing, gland type cylinder

1шт.

4

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

5

D27432

SHIM

- rod

2шт.

6

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

7

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

8

D27382

RING

- backup, gland seal

1шт.

9

D36970

CUP

SEAL - rod

1шт.

10

D28499

RING

- backup, rod seal

1шт.

11

D41359

BOLT,Hex, 1 1/4" - 12 x 63.5mm, Gr 8

- special

1шт.

12

D36434

WASHER

- special, bolt

1шт.

13

D38679

PIN

- restrictor

1шт.

14

D38683

SPRING

- pin

1шт.

15

D38684

SPACER

- spring

1шт.

16

D38686

PISTON

- split, bolt end

1шт.

17

D43113

PACKAGE

RING - packing, piston

1шт.

18

D43112

PACKING

- piston, chevron

2шт.

19

D38687

PISTON

- split, eye end

1шт.

20

D45072

GLAND

- packing

1шт.

21

D38676

WASHER

- special, rod

1шт.

22

D37736

PISTON ROD

ROD - piston (1-3/4" dia.)

1шт.

23

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- rod

1шт.

D42478

VALVE

CARTRIDGE - relief valve (Not preset) Must be set to correct pressure when installed on cylinder

1шт.

Relief valve has been relocated at closed end of cylinder on late production cylinders.

1шт.

24

129-526

CROWN NUT,Low, 3/8" - 24

- acorn (3/8" - 24 NF)

1шт.

25

23150

WASHER

GASKET - copper

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam (3/8" - 24 NF)

1шт.

27

D38814

ADJUSTMENT SCREW,3/8" - 24

SCREW - set, special

1шт.

28

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cartridge

1шт.

29

16219

GASKET

- special

2шт.

D40187

PACKAGE

KIT - seat and poppet

1шт.

30

NSS

NOT SOLD SEPARAT

POPPET - cartridge

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

D47557

VALVE

relief, for new cylinder

1шт.
