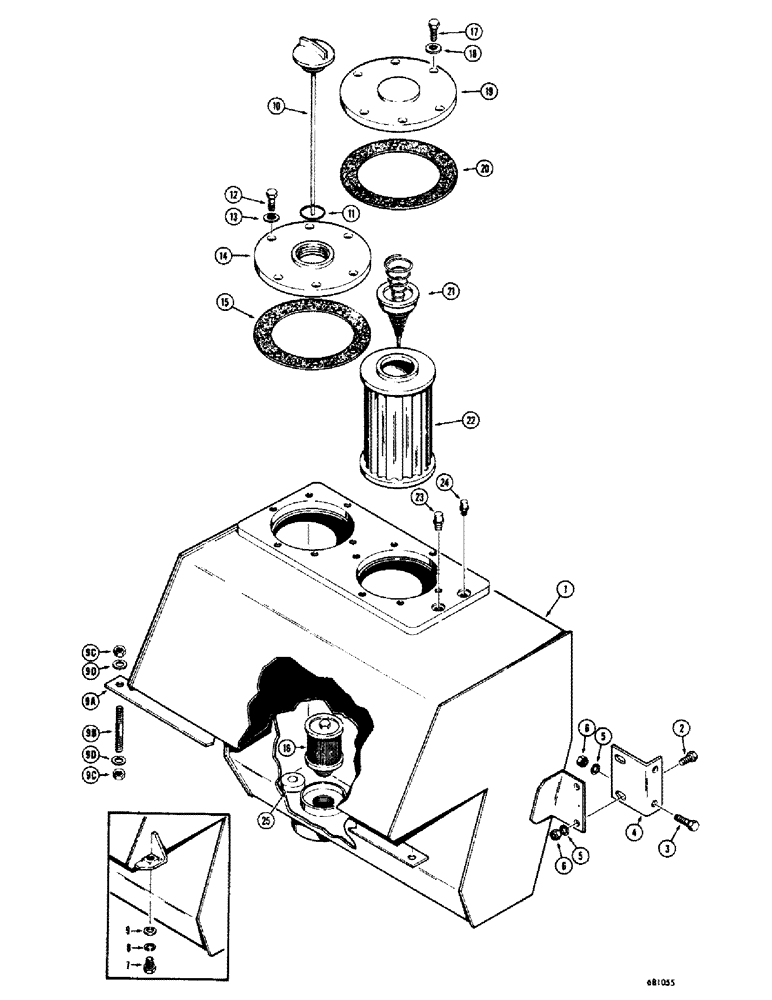

Запчасти Case 680CK (136) - HYDRAULIC TANK (35) - HYDRAULIC SYSTEMS

1

L13680

TANK - hydraulic oil reservoir (Used before tractor serial number 9101537) Order 1 - L15192 tank, 1 - L15158 brace, 2 - L15159 studs, 4 - 25-106 nuts and 2 - 92-6 washers for service

1шт.

L15192

TANK - hydraulic oil reservoir (Used on tractor serial number 9101537 and after)

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

4

L13681

BRACKET - tank mounting, front

2шт.

5

92-5

LOCK WASHER,5/16"

8шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

8шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used before tractor S/N 9101537 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

used before tractor serial number 9101537) 3/8"

2шт.

9

95-6

WASHER,3/8"

- standard wrot () Used before tractor serial number 9101537 3/8"

2шт.

9a

L15158

BRACE - tank mounting (Used on tractor serial number 9101537 and after)

1шт.

9b

L15159

STUD - tank mounting (Used on tractor serial number 9101537 and after)

2шт.

9c

25-106

NUT,3/8"-16, G5

- hex., (3/8" - 16 NC) Used on tractor serial number 9101537 and after

4шт.

9d

92-6

LOCK WASHER,3/8"

used on tractor serial number 9101537 and after 3/8"

4шт.

10

D36276

DIPSTICK

- hydraulic oil level gauge

1шт.

11

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "O" ring, dipstick

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

L15157

SEAL

- cover cap screws (When stock is exhausted, order F18408 seal for service)

6шт.

F18408

WASHER

SEAL - cover cap screws

6шт.

14

D34977

CAP

COVER - hydraulic tank, L.H.

1шт.

15

D34978

GASKET

- cover

1шт.

16

A18789

FILTER, ENGINE OIL

FILTER - hydraulic oil, suction line

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

18

L15157

SEAL

- cover cap screws (When stock is exhausted, order F18408 seal for service)

6шт.

F18408

WASHER

SEAL - cover cap screws

6шт.

19

D34976

COVER - hydraulic tank, R.H.

1шт.

20

D34978

GASKET

- cover

1шт.

21

D35996

VALVE PRESSURE RELIE

VALVE - filter bypass, 25 P.S.I.

1шт.

22

L13869

ELEMENT

FILTER - hydraulic oil, return line

1шт.

23

R15538

VALVE

- hydraulic tank, air inlet

1шт.

24

R15536

VALVE

- hydraulic tank, relief

1шт.

25

L15043

MAGNET

- hydraulic tank

1шт.
