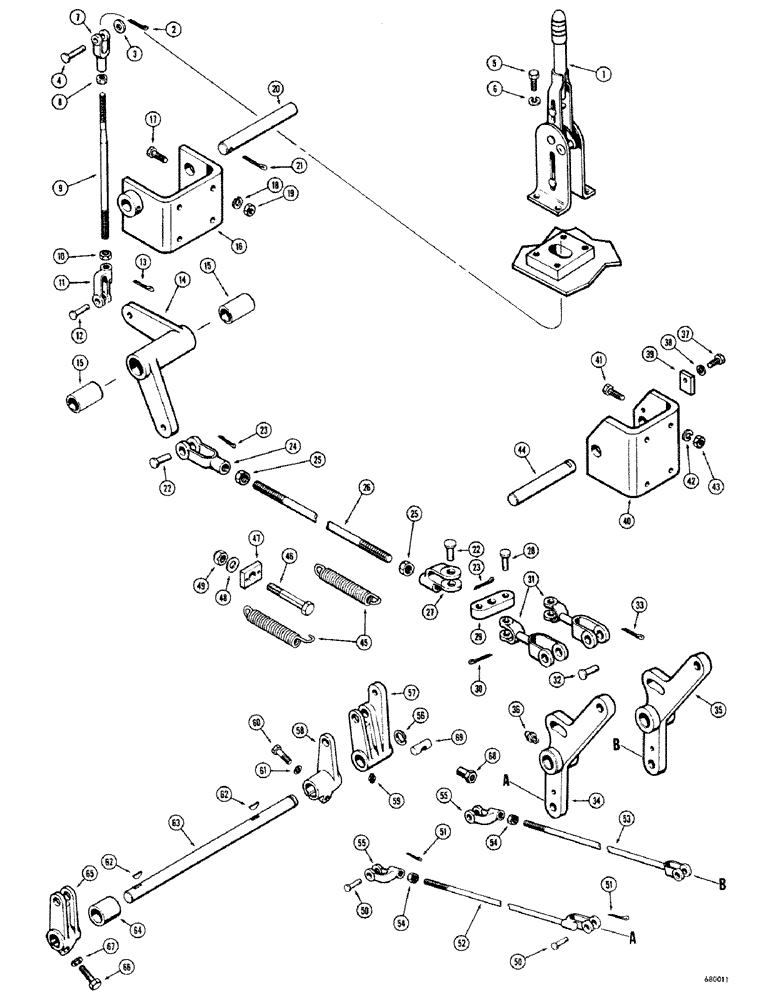

Запчасти Case 680CK (110) - PARKING BRAKE AND LINKAGE (33) - BRAKES & CONTROLS

1

A17214

LEVER

ASSEMBLY - parking brake

1шт.

2

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, steel (5/16")

1шт.

4

L30975

AXLE PIN,7.82mm OD x 39.69mm L

PIN - parking brake to control rod

1шт.

5

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end, adjustable (Upper)

1шт.

8

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

9

L11189

ROD - parking brake lever (At handle)

1шт.

10

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8" - 24 NF)

1шт.

11

L11182

YOKE,3/8" - 24

- rod end, adjustable (Lower)

1шт.

12

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

14

L13432

BELLCRANK - parking brake, rear

1шт.

15

L15247

BUSHING

- bellcrank

2шт.

16

L11213

BRACKET - rear bellcrank, parking brake

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

20

L11183

SHAFT - rear bellcrank pivot

1шт.

21

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

22

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

23

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

24

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end, adjustable (Rear)

1шт.

25

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

26

L11181

ROD - parking brake, intermediate

1шт.

27

L11174

YOKE - rod end, adjustable (Front)

1шт.

28

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - yoke

2шт.

29

L11180

LINK - parking brake

1шт.

30

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

31

L11212

YOKE AND ROD ASSEMBLY - parking brake, at front bellcrank

2шт.

32

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

33

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

34

L11206

BELLCRANK - brake, R.H. front

1шт.

35

L11207

BELLCRANK - brake, L.H. front

1шт.

36

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

37

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

38

92-5

LOCK WASHER,5/16"

1шт.

39

L11209

LOCK - shaft

1шт.

40

L11205

BRACKET - bellcrank mounting

1шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

44

L11208

SHAFT - bellcrank pivot

2шт.

45

CASA34224

SPRING

- bellcrank

2шт.

46

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

HHCS - 5/8" - 11 NC x 4-1/4"

1шт.

47

L11654

BRACKET - spring mounting

1шт.

48

95-10

WASHER,5/8"

- standard wrot () 5/8"

1шт.

49

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

50

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - rod yoke

4шт.

51

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

52

L11204

ROD - differential brake, R.H.

1шт.

53

L11203

ROD - differential brake, L.H.

1шт.

54

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

55

L11174

YOKE - rod end

2шт.

56

F62093

RING, SNAP

RING - snap shaft

1шт.

57

L11202

LEVER - differential brake, L.H.

1шт.

58

L12270

LEVER - differential brake, center

1шт.

59

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

60

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

61

92-8

LOCK WASHER,1/2"

1шт.

62

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

63

L11198

SHAFT - differential brake

1шт.

64

L11200

SPACER - shaft

1шт.

65

L11199

LEVER

- differential brake, R.H.

1шт.

66

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

67

92-8

LOCK WASHER,1/2"

1шт.

68

A27686

NUT

- brake trunnion rod retaining

2шт.

69

A27687

HARDWARE

TRUNNION - brake actuating

2шт.
