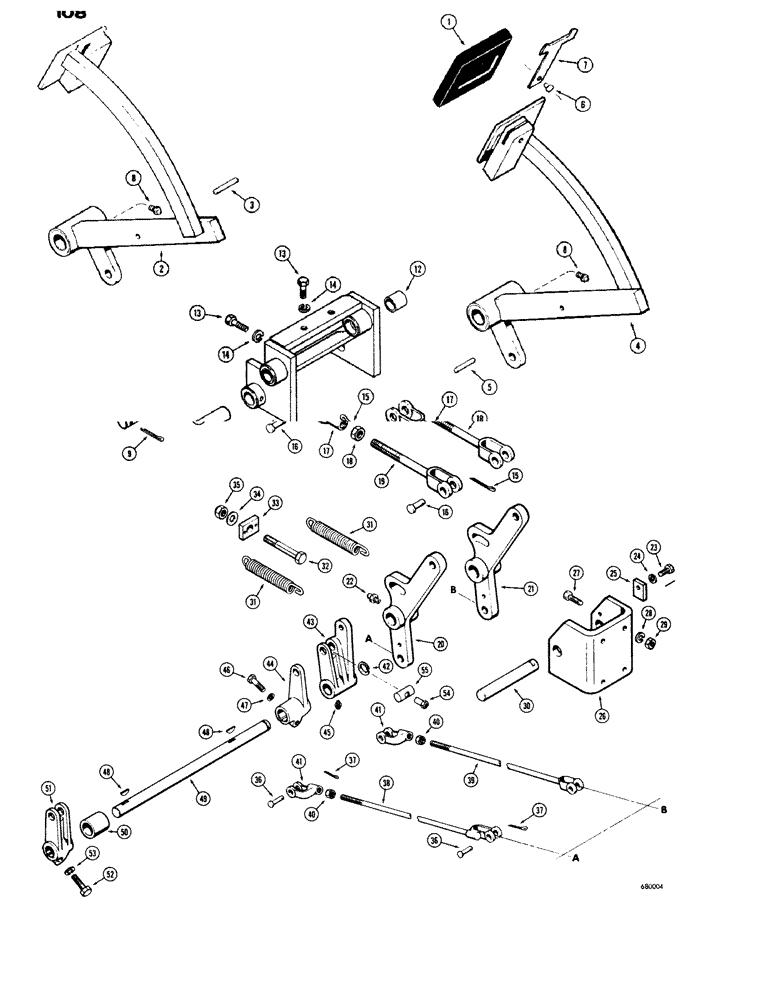

Запчасти Case 680CK (108) - BRAKE PEDALS AND LINKAGE (33) - BRAKES & CONTROLS

1

L11193

PAD

- brake pedal, rubber

2шт.

2

L13606

PEDAL ASSEMBLY - brake, R.H.

1шт.

3

135-261

PIN - roll, 1/4" dia. x 1-1/2"

1шт.

4

L13605

PEDAL AND LOCK ASSEMBLY - brake, L.H.

1шт.

5

135-261

PIN - roll, 1/4" dia. x 1-1/2"

1шт.

6

45-420

RIVET - brake lock, 1/4" dia. x 1-1/4" But Hd, 1/4" x 1 1/4"

1шт.

7

A29086

LOCK - brake pedal

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

9

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

10

L11184

SHAFT - brake pedal pivot

1шт.

11

L13607

BRACKET ASSEMBLY - brake pedals

1шт.

12

A55533

BUSHING

- bracket

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

14

92-6

LOCK WASHER,3/8"

5шт.

15

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

16

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - rod yoke

4шт.

17

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - rod end

2шт.

18

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

19

L11211

ROD - brake pedal

2шт.

20

L11206

BELLCRANK - brake, R.H.

1шт.

21

L11207

BELLCRANK - brake, L.H.

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

L11209

LOCK - shaft

1шт.

26

L11205

BRACKET - bellcrank mounting

1шт.

27

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

4шт.

30

L11208

SHAFT - bellcrank pivot

2шт.

31

CASA34224

SPRING

- bellcrank

2шт.

32

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

HHCS - 5/8" - 11 NC x 4-1/4"

1шт.

33

L11654

BRACKET - spring mounting

1шт.

34

95-10

WASHER,5/8"

- standard wrot () 5/8"

1шт.

35

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

36

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - rod yoke

4шт.

37

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

38

L11204

ROD - differential brake, R.H.

1шт.

39

L11203

ROD - differential brake, L.H.

1шт.

40

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

41

L11174

YOKE - rod end

2шт.

42

F62093

RING, SNAP

RING - snap, shaft

1шт.

43

L11202

LEVER - differential brake, L.H.

1шт.

44

L12270

LEVER - differential brake, center

1шт.

45

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

46

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

47

92-8

LOCK WASHER,1/2"

1шт.

48

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

49

L11198

SHAFT - differential brake

1шт.

50

L11200

SPACER - shaft

1шт.

51

L11199

LEVER

- differential brake, R.H.

1шт.

52

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

53

92-8

LOCK WASHER,1/2"

1шт.

54

A27686

NUT

- brake trunnion rod retaining

2шт.

55

A27687

HARDWARE

TRUNNION - brake actuating rod

2шт.
