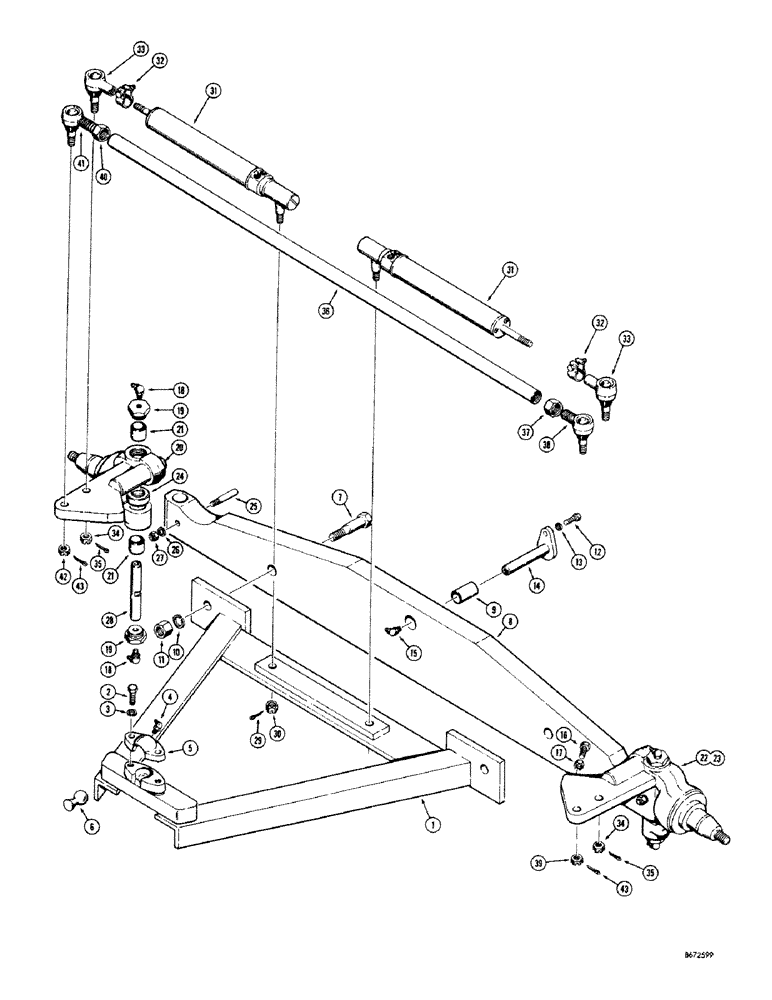

Запчасти Case 680CK (114) - FRONT AXLE, SPINDLES AND TIE RODS (25) - FRONT AXLE SYSTEM

1

L12345

RADIUS ROD WELDMENT - front axle

1шт.

2

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

5

L10887

CAP - ball socket

1шт.

6

A27445

BALL

- radius frame pivot, Serial Range: (Welded-chassis)

1шт.

7

A26659

STEP BOLT

BOLT - special, radius frame to front axle

2шт.

8

L13397

AXLE ASSEMBLY - front

1шт.

9

L11411

BUSHING

- axle

1шт.

10

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

11

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

2шт.

12

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

1шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

L11378

PIN - front axle pivot

1шт.

15

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

16

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

17

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC)

2шт.

18

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

4шт.

19

A27825

PLUG

- spindle

4шт.

20

L12344

SPINDLE

ASSEMBLY - steering, L.H.

1шт.

21

L11836

X

BUSHING - spindle, kingpin (When stock is exhausted, order L15250 bushing for service)

2шт.

L15250

BUSHING

- spindle, kingpin

2шт.

22

L12343

SPINDLE

ASSEMBLY - steering, R.H.

1шт.

23

L11836

X

BUSHING - spindle, kingpin (When stock is exhausted, order L15250 bushing for service)

2шт.

L15250

BUSHING

- spindle, kingpin

2шт.

24

A26658

THRUST BEARING,1.26" ID x 2.1875" OD x 0.63"

BEARING - thrust, front axle spindle

2шт.

25

A26490

LOCK ASSY

LOCK - king pin

2шт.

26

92-8

LOCK WASHER,1/2"

2шт.

27

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

2шт.

28

L12264

AXLE PIN

KING PIN - steering spindle

2шт.

29

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

30

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

2шт.

31

A55158

CYLINDER BLOCK

CYLINDER - hydraulic, steering, (1-3/4" I.D. x 9" stroke) Parts list Figure 120

2шт.

32

A27080

CLAMP

- cylinder

2шт.

33

A17137

BALL JOINT

- steering, Serial Range: cylinder-spindle

2шт.

34

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

1шт.

35

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

36

L13422

TUBE - tie rod 1.25" OD x 52.31" L

1шт.

37

L13418

X

NUT - lock, special (R.H. thread)

1шт.

38

L13421

BALL

JOINT - tie rod to spindle (R.H. thread)

1шт.

39

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

1шт.

40

L13419

NUT

- lock, special (L.H. thread)

1шт.

41

L13420

BALL JOINT

- tie rod to spindle (L.H. thread)

1шт.

42

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex., slotted (5/8" - 18 NF)

1шт.

43

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
