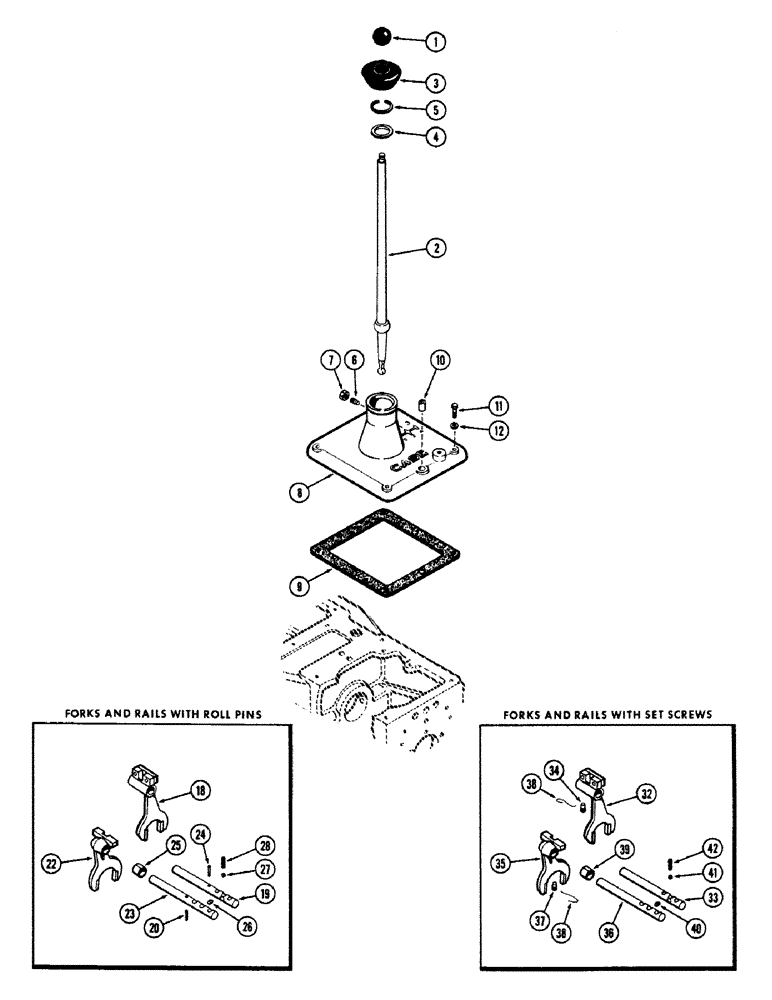

Запчасти Case 680CK (106) - TRANSMISSION GEAR SHIFT (21) - TRANSMISSION

1

A19416

BALL

KNOB - trans. axle shift lever

1шт.

2

A37161

LEVER - gear shift

1шт.

3

A57876

COVER

- dust, gear shift lever (Rubber)

1шт.

4

A7923

SEAT

- gear shift lever seat

1шт.

5

A26836

RING, SNAP

RING - snap, lever retaining

1шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- lever guide

1шт.

7

25-145

JAM NUT,Jam, 5/16"-18, G5

- lock, guide screw (5/16" N.C. half hex.)

1шт.

8

G1730

COVER - trans. case & shift control

1шт.

9

G10342

GASKET

- cover

1шт.

10

138-200

LOCK PIN,1/2" x 1", Slotted

Pin, , cover locating 1/2" x 1", Slotted

1шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover (3/8 x 1-1/4" N.C. hex.)

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

NLS

SHIFTER KIT - 1st & 2nd speed, 1st used trans. ser. no. 2244027

1шт.

18

A38248

FORK TEDDER

FORK - shifter (1st & 2nd speed), 1st used trans. ser. no. 2244027

1шт.

19

A38233

ROD

SHAFT - shifter rail (1st & 2nd) (7-5/16" long), 1st used trans. ser. no. 2244027

1шт.

20

138-2009

PIN,3/16" x 1", Coiled

1st used trans. S/N 2244027 3/16" x 1", Coiled

1шт.

A41468

PACKAGE, REPAIR

SHIFTER KIT - 3rd & 4th speed, 1st used trans. ser. no. 2244027

1шт.

22

A38234

FORK

- shifter (3rd & 4th speed), 1st used trans. ser. no. 2244027

1шт.

23

A38235

ROD

SHAFT - shifter rail (3rd & 4th) (7-3/16" long), 1st used trans. ser. no. 2244027

1шт.

24

138-2009

PIN,3/16" x 1", Coiled

1st used trans. S/N 2244027 3/16" x 1", Coiled

1шт.

25

G49617

SEAL PACKAGE

SPACER - shifter fork, 1st used trans. ser. no. 2244027

1шт.

26

A29060

PLUG

- shifter shafts inter-lock, 1st used trans. ser. no. 2244027

1шт.

27

211-11

BALL,3/8" Dia

- shaft detent (.), 1st used trans. ser. no. 2244027 3/8" Dia

2шт.

28

G47039

SPRING

- detent ball pressure, 1st used trans. ser. no. 2244027

2шт.

32

G13461

FORK

- shifter (1st & 2nd) (Order A41469), used prior to trans. ser. no. 2244027

1шт.

33

G10326

ROD

SHAFT - shifter rail (1st & 2nd) (7-5/16" long), used prior to trans. ser. no. 2244027

1шт.

34

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shifter fork (27/32" long), used prior to trans. ser. no. 2244027

1шт.

35

G10333

X

FORK - shifter (3rd & 4th), used prior to trans. ser. no. 2244027

1шт.

36

G17166

SHAFT - shifter rail (3rd & 4th) (7-3/16"), used prior to trans. ser. no. 2244027

1шт.

37

A29965

LOCK SCREW,3/8" - 24 x 11/16", Drilled

- lock, shifter fork (11/16" long), used prior to trans. ser. no. 2244027

1шт.

38

A29966

ELECTRICAL WIRE

WIRE - shift fork lock, used prior to trans. ser. no. 2244027

2шт.

39

G49617

SEAL PACKAGE

SPACER - shifter fork (3/4" O.D. x 11/16 x 18 Ga.), used prior to trans. ser. no. 2244027

1шт.

40

A29060

PLUG

- shifter shafts inter-lock, used prior to trans. ser. no. 2244027

1шт.

41

211-11

BALL,3/8" Dia

- shaft detent (.), used prior to trans. ser. no. 2244027 3/8" Dia

2шт.

42

G47039

SPRING

- detent ball pressure, used prior to trans. ser. no. 2244027

2шт.
