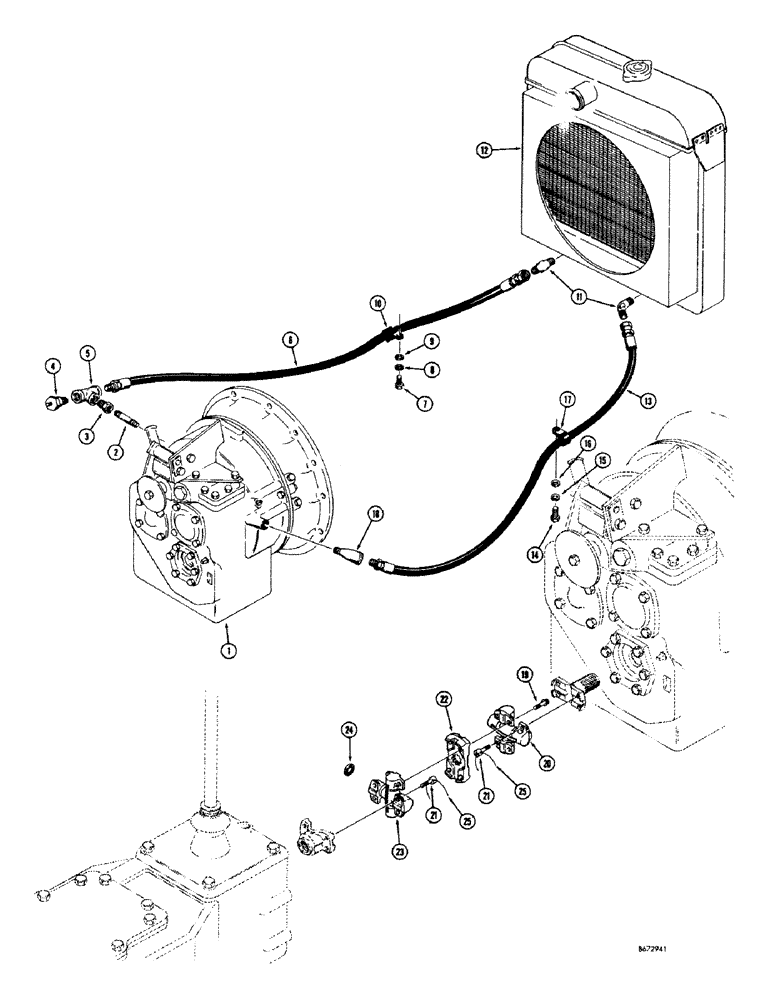

Запчасти Case 680CK (098) - FORWARD AND REVERSE TRANSMISSION COOLING SYSTEM (21) - TRANSMISSION

1

REF

INSTRUCTION

TRANSMISSION - forward and reverse, See Figures 88 thru 94 for parts lists

1шт.

2

221-164

FITTING,Nipple, 3/8" NPT x 2"

Pipe

1шт.

3

221-1056

BUSHING

REDUCING - hex., pipe (1/2" x 3/8" NPT)

1шт.

4

A13795

SENDER UNIT

SENDER Torque converter temperature gauge

1шт.

5

221-1424

TEE,Pipe, 1/2" NPT

1шт.

6

L11081

HOSE

Forward and reverse transmission to radiator (56" long)

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

195-25

WASHER,3/8"

1шт.

10

A27256

CLAMP

Hose

1шт.

11

218-1098

ELBOW,45 Degree, 3/4-14" 37 Degree x 1/2"-14, NPTF

Special, at radiator

2шт.

12

L11240

SPARE PART ASSEMBLY - engine and forward and reverse transmission cooling, See Figures 4 and 134 for related parts

1шт.

13

L11082

HOSE ASSY.

Radiator to forward and reverse transmission (62" long)

1шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

195-25

WASHER,3/8"

1шт.

17

A27256

CLAMP

Hose

1шт.

18

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

Street

1шт.

L11370

TOGGLE

UNIVERSAL JOINT -, Serial Range: transmission-engine

1шт.

19

L30496

SCREW,1 15/16"

Special, spider to plate, universal joint

4шт.

20

L30634

DIFF. SPIDER

AND BEARING KIT - universal (Not tapped), universal joint

1шт.

21

A14722

SCREW,5/16" x 1-1/16", Gr 8

Special, drilled head (Spider and bearing to engine or transmission yoke), universal joint

8шт.

22

L30493

PLATE

Coupling, center, universal joint

1шт.

23

L30633

KIT

SPIDER AND BEARING - universal (Tapped), universal joint

1шт.

24

A14721

WASHER

GASKET - cork, universal joint

8шт.

25

391-803

ELECTRICAL WIRE

WIRE Tie, #20 x 6", universal joint

4шт.
