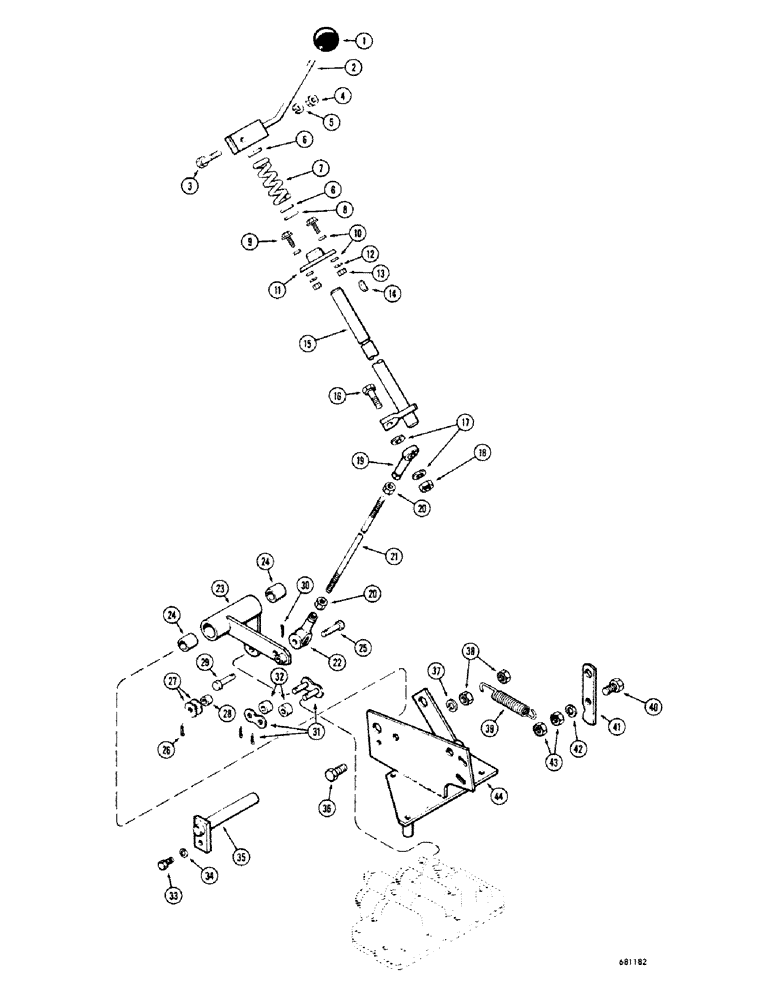

Запчасти Case 680CK (094) - FORWARD AND REVERSE CONTROLS (21) - TRANSMISSION

1

A14051

GRIP

BALL - handle

1шт.

2

L11084

HANDLE - shift

1шт.

3

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

5

92-5

LOCK WASHER,5/16"

1шт.

6

G49066

WASHER - special

2шт.

7

A30146

SPRING

- shaft

1шт.

8

L11094

RING - shaft retaining

1шт.

9

L11652

SCREW - special

2шт.

10

195-13

WASHER,#10

- plain (3/16")

4шт.

11

L11566

BEARING

- shift lever

1шт.

12

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

13

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

14

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

15

L11570

SHAFT - shift

1шт.

16

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

17

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

- special

2шт.

18

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

19

A35134

BEARING

EYE - rod end, self-aligning

1шт.

20

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., lock (5/16" - 24 NF)

2шт.

21

L11096

ROD

- shift link

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - rod

1шт.

23

L11571

BELLCRANK - shift assembly

1шт.

24

L10818

BUSHING

- bellcrank

2шт.

25

A8824

PIN

- bellcrank detent

1шт.

26

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

27

195-15

WASHER,#12

- plain (1/4")

2шт.

28

L11565

BEARING

- neutral start

1шт.

29

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

30

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

31

60961

DRAG LINK

CONNECTOR - link, forward and reverse

1шт.

32

L11102

SPACER

- forward and reverse shift

2шт.

33

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

L11107

SHAFT

- bellcrank pivot

1шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., lock (5/16" - 18 NC)

2шт.

39

R14163

VALVE SPRING

SPRING - neutral start lever

1шт.

40

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

41

L11564

BAR - neutral start detent

1шт.

42

92-5

LOCK WASHER,5/16"

1шт.

43

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex., lock (5/16" - 18 NC)

2шт.

44

L11574

BRACKET - bellcrank mounting

1шт.
