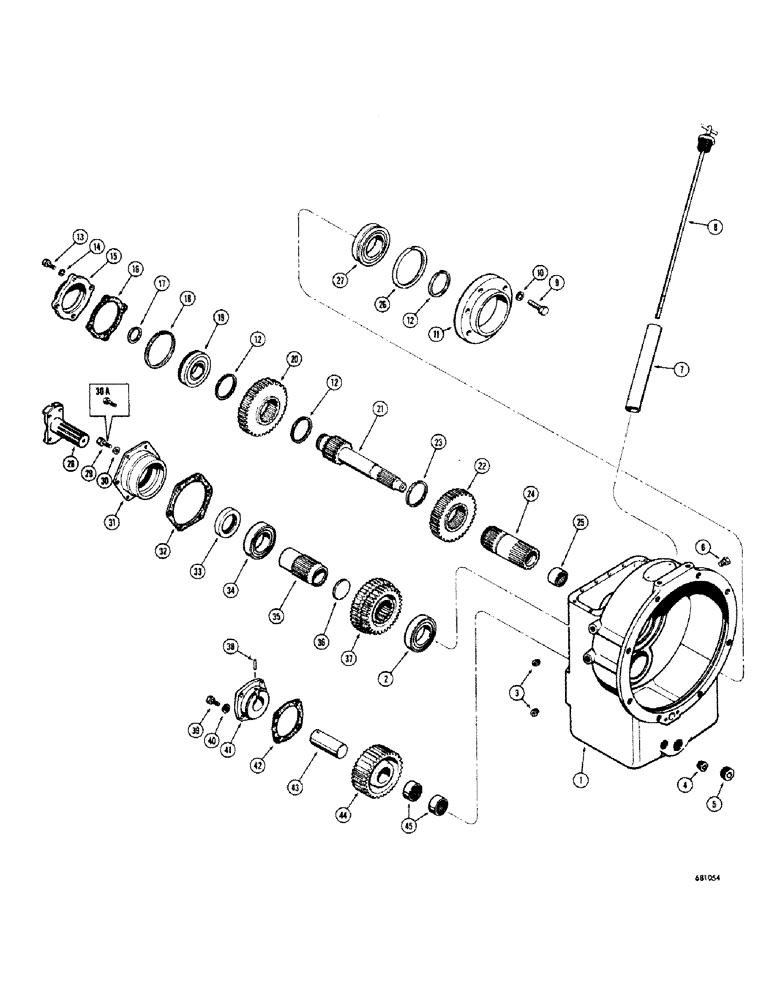

Запчасти Case 680CK (092) - POWER SHUTTLE TRANSMISSION AND HOUSING (21) - TRANSMISSION

L30468

X

HOUSING ASSEMBLY - transmission

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission, rear half

1шт.

2

G13075

BEARING, BALL

BEARING - housing

1шт.

3

221-1662

PLUG

- pipe, hex. head (1/4" NPT)

2шт.

4

221-654

PLUG,Hex Hd, 1/2"-14

- pipe, hex. head (1/2" NPT)

1шт.

5

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex. socket head (1" NPT)

1шт.

6

221-1662

PLUG

- pipe, hex. head (1/4" NPT)

1шт.

7

L15281

TUBE,1.005" OD x 8.3" L

- filler and dipstick

1шт.

8

L15280

DIPSTICK

- oil level

1шт.

NOTE:REF#8 SHOULD HAVE A LOOP HANDLE.

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

5шт.

10

92-5

LOCK WASHER,5/16"

5шт.

11

L30236

RETAINER

- bearing

1шт.

12

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

3шт.

13

L32122

BOLT

- locking and sealing

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

A14854

RETAINER - shaft bearing

1шт.

16

A14855

GASKET

- bearing retainer

1шт.

17

A14835

RING, SNAP

RING - snap, shaft

1шт.

18

A28153

RING

- snap, Serial Range: bearing-retainer

1шт.

19

A37733

BALL BEARING

BEARING - forward drive shaft (Replaces L30235)

1шт.

20

A14853

GEAR

- low and reverse (35 teeth)

1шт.

21

A14850

SHAFT

- forward drive

1шт.

22

A14859

GEAR - reverse

1шт.

L30230

SHAFT

ASSEMBLY - drive

1шт.

23

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap

1шт.

24

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

25

A14858

NEEDLE BEARING,Needle, 28.56mm ID x 34.94mm OD x 19.05mm W

BEARING - needle

1шт.

26

L30233

RING, SNAP

RING - snap, bearing

1шт.

27

G13607

BALL BEARING

BEARING - reverse

1шт.

28

A13914

YOKE

- stub, output

1шт.

29

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(Used with A17864 gasket only) Hex, 5/16"-18 x 7/8", G5, Full Thd

6шт.

30

A17864

SEAL

GASKET - output shaft bearing retainer (When stock is exhausted, order 1-L32122 bolt for service)

6шт.

30a

L32122

BOLT

- locking and sealing

6шт.

31

A14847

RETAINER

- output shaft bearing

1шт.

32

A14848

GASKET

- output shaft bearing retainer

1шт.

33

A14849

X

SEAL - oil, output shaft

1шт.

34

G13075

BEARING, BALL

BEARING - output shaft

1шт.

35

L30336

SHAFT

ASSEMBLY - output

1шт.

36

A7509

PLUG

- expansion

1шт.

37

L30470

GEAR

- countershaft

1шт.

38

A30589

PIN

- lock, shaft

1шт.

39

L32122

BOLT

- locking and sealing

4шт.

40

92-5

LOCK WASHER,5/16"

4шт.

41

A14843

CAP

RETAINER - idler shaft

1шт.

42

A14844

GASKET

- retainer

1шт.

43

A14841

SHAFT

- idler gear

1шт.

44

L30471

GEAR

ASSEMBLY - idler

1шт.

45

T15025

NEEDLE BEARING,Needle, 31.75mm ID x 38.11mm OD x 19.05mm W

BEARING - needle

2шт.
