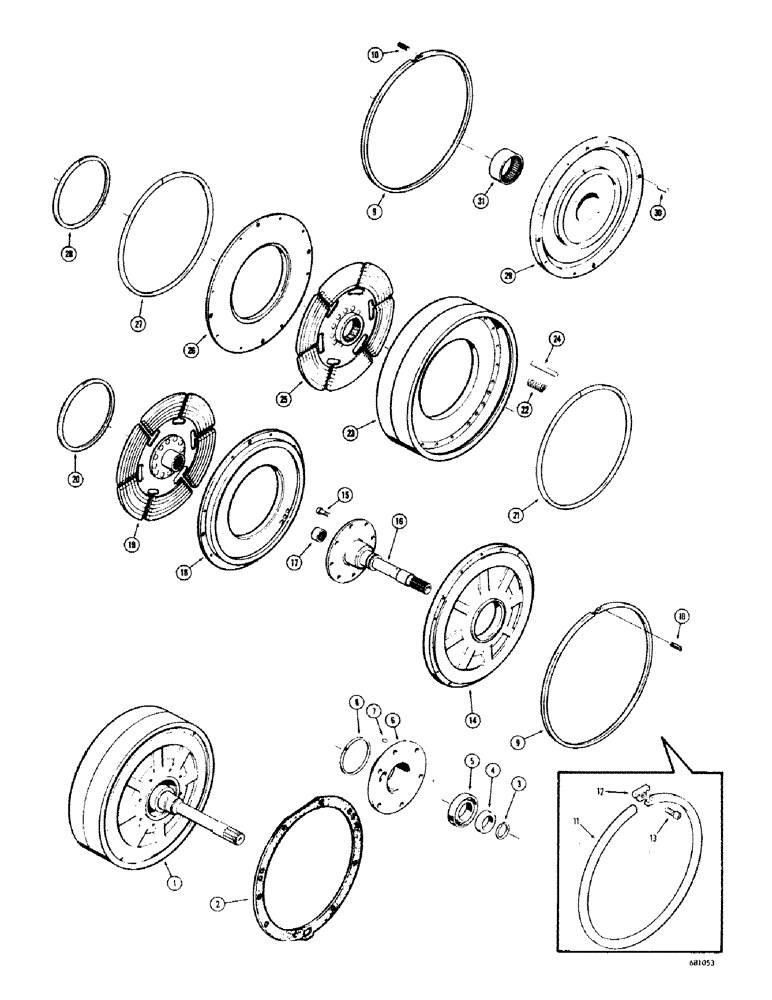

Запчасти Case 680CK (088) - FORWARD AND REVERSE CLUTCH (18) - CLUTCH

1

L30691

CLUTCH

CLUTCH ASSEMBLY - forward and reverse

1шт.

2

A14886

GASKET

GASKET - transmission housing

1шт.

3

L30484

RING, SNAP

RING SNAP RING - snap, input shaft

1шт.

4

L30483

SPACER

SPACER - bearing

1шт.

5

L30481

BEARING

SPARE PART BEARING - clutch

1шт.

L30479

CAP

RETAINER ASSEMBLY - bearing

1шт.

NOTE: ITEMS#2,3,4,5,AND 5A NOT PART OF L30691.

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - bearing

1шт.

7

L30245

PLUG

PLUG - retainer

2шт.

8

A14833

SEALING RING

RING - seal, cylinder to torque converter housing

2шт.

9

A14826

X

RING - snap, cylinder to plate (Used prior to transmission serial number 11018) When stock is exhausted, order 1-L32121, 1-L32120 and 1-L32084 for service

2шт.

10

L30693

SCREW

SCREW - Nylock (Used prior to transmission serial number 11018) When stock is exhausted, order 1-L32121, 1-L32120 and 1-L32084 for service

2шт.

11

L32121

RING, SNAP

RING SNAP RING - snap, cylinder to plate (Used on transmission serial number 11018 and after)

2шт.

12

L32120

PLATE ASSY.

PLATE - lock, snap ring (Used on transmission serial number 11018 and after)

2шт.

13

L32084

SCREW

SCREW - locking (Used on transmission serial number 11018 and after)

2шт.

L30695

SPARE PART CYLINDER AND SHAFT ASSEMBLY - clutch

1шт.

14

L30698

CYLINDER BLOCK

CYLINDER - front

1шт.

15

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - lock, 5/16" - 18 NC x 3/4"

8шт.

L30477

SHAFT

SHAFT ASSEMBLY - input

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

17

T32720

BEARING

BEARING - needle

1шт.

18

A14830

PISTON ASSY.

PISTON - clutch

1шт.

19

A14822

PLATE

PLATE - front, clutch

1шт.

19

A14822R

REMAN-CLUTCH PLATE

680CK S/N 9101501 To 9102281

1шт.

19

A14822C

CORE-CLUTCH PLATE

Return Number

1шт.

20

A14832

RING

RING - seal, inner

1шт.

21

A14831

RING

RING - seal, outer

1шт.

22

A14827

VALVE SPRING

SPRING - clutch retractor

24шт.

L30694

PLATE

PLATE ASSEMBLY - pressure

1шт.

L30694R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

L30694C

CORE-CLUTCH PLATE

Return Number, Plate Assembly, Pressure

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

24

A14829

AXLE PIN

PIN - pressure plate drive

4шт.

25

A14823

PLATE

PLATE - rear, clutch

1шт.

26

A14830

PISTON ASSY.

PISTON - clutch

1шт.

27

A14831

RING

RING - seal, outer

1шт.

28

A14832

RING

RING - seal, inner

1шт.

L30692

CYLINDER

CYLINDER AND BEARING ASSEMBLY - clutch

1шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER - rear

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - rear

2шт.

31

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle

1шт.
