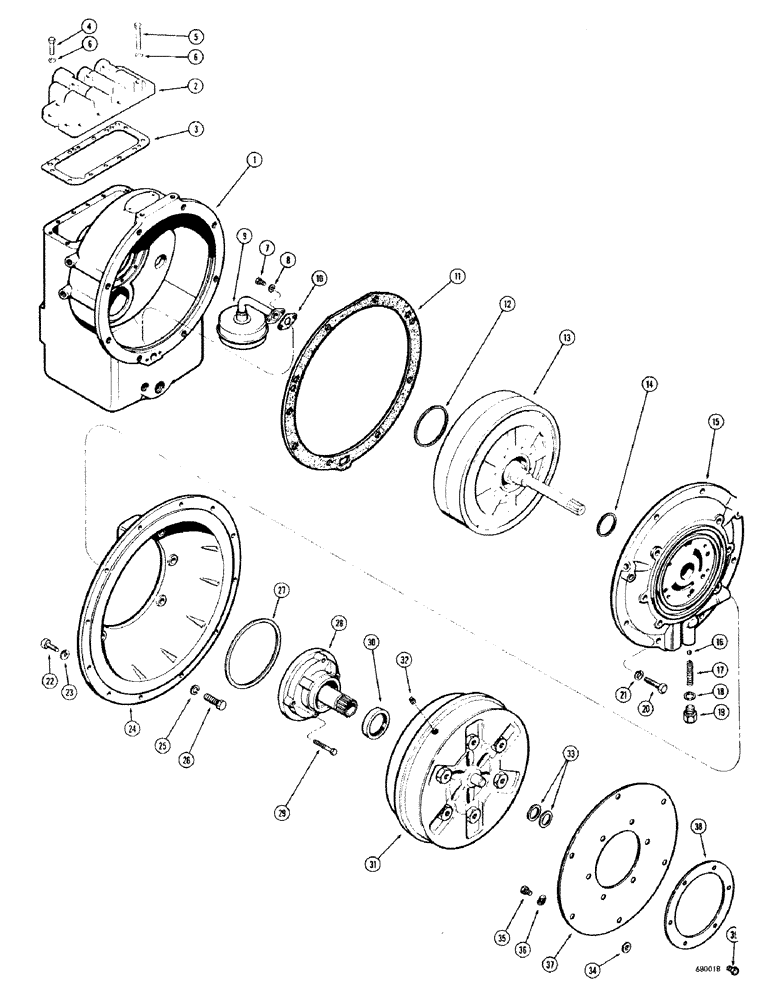

Запчасти Case 680CK (086) - TORQUE CONVERTER HOUSING AND PUMP (17) - TORQUE CONVERTER

1

L30468

X

HOUSING - transmission, Parts list Figure 92

1шт.

2

L30972

LOCK VALVE

VALVE ASSEMBLY - forward and reverse control, Parts list Figure 90

1шт.

3

L32119

GASKET

- valve body

1шт.

4

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

8шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

6

92-5

LOCK WASHER,5/16"

12шт.

7

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

A14838

SCREEN

- oil pump intake

1шт.

10

A14839

GASKET

- oil screen

1шт.

11

A14886

GASKET

- transmission housing

1шт.

12

L30237

SEAL

RING - sealing

2шт.

13

L30691

CLUTCH

ASSEMBLY - forward and reverse, Parts list Figure 88

1шт.

14

L30486

SEAL

RING - sealing

1шт.

15

L30482

ADAPTER

- transmission housing to torque converter housing

1шт.

16

211-11

BALL,3/8" Dia

- steel (.) 3/8" Dia

1шт.

17

L30251

VALVE SPRING

SPRING - pop valve

1шт.

18

A14810

WASHER

- special

1шт.

19

A14811

SEAT, VALVE

SEAT - spring, pop valve

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

6шт.

20

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

21

92-6

LOCK WASHER,3/8"

8шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

23

92-6

LOCK WASHER,3/8"

12шт.

24

L30485

O-RING

HOUSING - torque converter

1шт.

25

92-7

LOCK WASHER,7/16"

6шт.

26

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

6шт.

27

L30487

GASKET,140.49mm ID x 150.02mm OD x 3.02mm Thk

- pump

1шт.

28

L30488

PUMP

ASSEMBLY - torque converter charging

1шт.

28

137093A1R

REMAN-HYD PUMP

680CK, (S/N 9101501 TO 9102281), REMAN for Part No. L30488, N.A. Only

1шт.

28

137093A1C

CORE-HYDRAULIC PUMP

Return Number, For N.A. Only

1шт.

29

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

30

L30489

OIL SEAL

- pump

1шт.

31

L10815

CONVERTER

ASSEMBLY - torque

1шт.

32

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

33

L11172

SHIM,.0478" Thk

Pump engagement .0478" Thk

1шт.

34

195-2024

WASHER,3/8" x 7/8" x .065"

- flat, steel (3/8" I.D.)

1шт.

L11783

KIT

- torque converter drive

1шт.

35

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

- place (5/16" - 18 NC x 3/4")

6шт.

36

A14512

WASHER

- torque converter drive plate

6шт.

37

A14509

PLATE

- torque converter drive

1шт.

38

A14510

PLATE

- reinforcement

1шт.

39

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

- place (3/8" - 24 NF x 1/2")

6шт.
