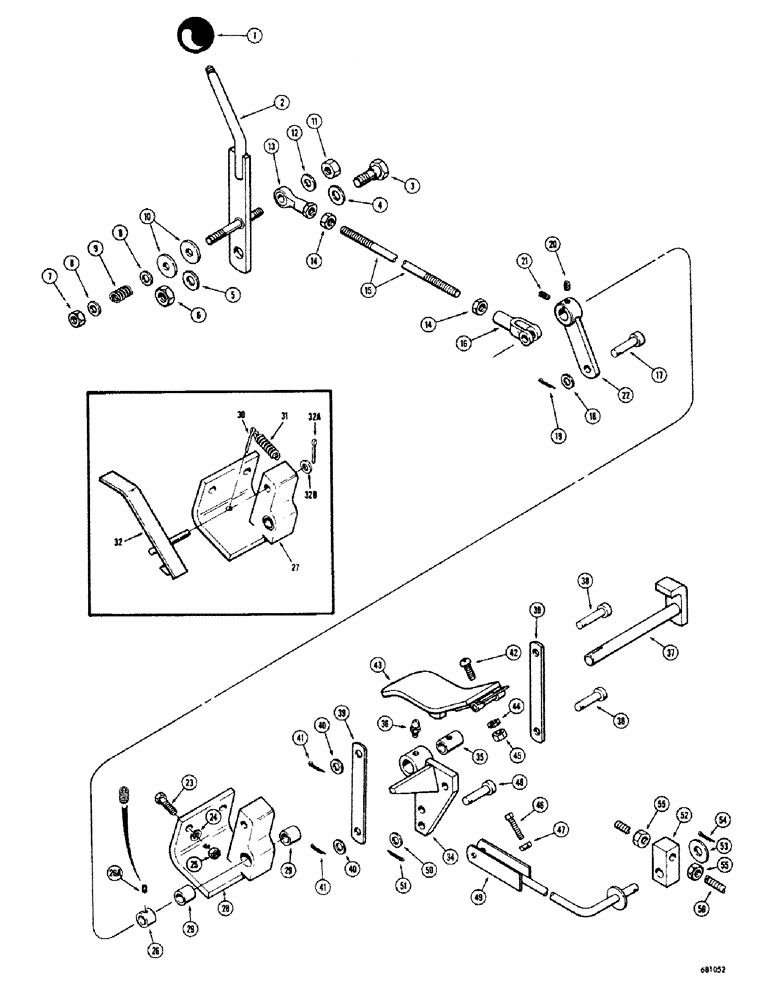

Запчасти Case 680CK (084) - THROTTLE CONTROL LINKAGE (10) - ENGINE

1

A18852

KNOB

- hand throttle

1шт.

2

L10846

LEVER - hand throttle

1шт.

3

L10850

BOLT - special

1шт.

4

195-41

WASHER,5/8"

- plain (5/16")

1шт.

5

195-33

WASHER,1/2"

- plain () 1/2"

1шт.

6

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

8

195-524

WASHER,5/16"

- plain, zinc plated () 5/16"

2шт.

9

A26546

SPRING

- hand throttle lever

1шт.

10

L10610

WASHER - special, lever slide

2шт.

11

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

1шт.

12

195-25

WASHER,3/8"

- plain () 3/8"

1шт.

13

A32398

BALL JOINT

ROD END - hand throttle connecting rod, bearing type

1шт.

14

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

2шт.

15

L10851

ROD - hand throttle connecting

1шт.

16

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - connecting rod

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

18

195-28

WASHER,3/8"

- plain () 3/8"

1шт.

19

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

20

181-216

SCREW - set, square head (1/4" - 20 NC x 1/2") Dog point

1шт.

21

85-48

SET SCREW,Sq Hd, 1/4"-20 x 1/2"

SCREW - set, square head (1/4" - 20 NC x 1/2") Cup point

1шт.

22

L10829

LEVER - hand throttle linkage pivot

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

26

L15114

COLLAR - throttle

1шт.

26a

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex. socket head (Cup point) 1/4" - 20 NC

1шт.

27

L15113

SUPPORT ASSEMBLY - throttle linkage

1шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT - throttle linkage

1шт.

29

L10818

BUSHING

- support

2шт.

30

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), (Diesel models only) 3/16" x 3/4"

1шт.

31

T34032

VALVE SPRING

SPRING - pedal return (Diesel models only)

1шт.

32

L15115

PEDAL - fuel shutoff (Diesel models only)

1шт.

32a

132-9

COTTER PIN

PIN - cotter, 1/16" dia. x 1"

1шт.

32b

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

1шт.

33

L10824

ARM ASSEMBLY - foot feed to linkage (Not illustrated)

1шт.

34

NSS

NOT SOLD SEPARAT

ARM - foot, Serial Range: feed-linkage

1шт.

35

A29946

BUSHING

- arm

1шт.

36

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

37

L10832

ARM - hand throttle engagement

1шт.

38

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

39

L10838

STRAP - foot feed connecting

2шт.

40

195-26

WASHER

WASHER - plain (3/8")

2шт.

41

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

2шт.

42

175-408

SCREW,Phil Truss Head, 1/4" - 20 x 3/4"

- truss head (1/4" - 20 NC x 3/4")

2шт.

43

L10835

PEDAL - foot feed

1шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

25-104

NUT,1/4"-20, G5

2шт.

46

181-621

SCREW - set, square head (1/4" - 20 NC x 1-1/4")

1шт.

47

25-104

NUT,1/4"-20, G5

1шт.

48

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

49

L12298

ROD - throttle control

1шт.

50

195-28

WASHER,3/8"

- plain () 3/8"

1шт.

51

132-27

COTTER PIN,3/32" x 7/8"

Pin, Split (Cotter), 3/32" x 7/8"

1шт.

52

L10845

ADAPTER BLOCK - throttle linkage

1шт.

53

195-28

WASHER,3/8"

- plain () 3/8"

1шт.

54

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

55

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex., jam (3/8" - 24 NF)

2шт.

56

A34709

ROD - throttle, at engine block (Diesel models only)

1шт.

A34713

ROD - throttle, at engine block (Gasoline models only)

1шт.
