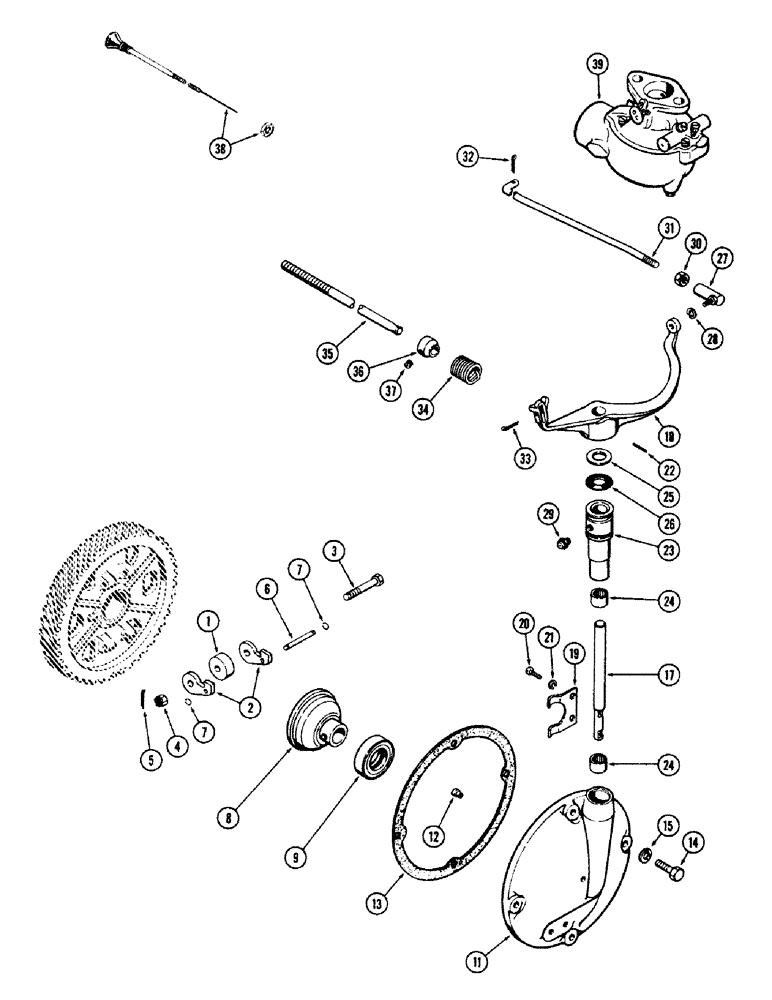

Запчасти Case 680CK (060) - GOVERNOR AND CONTROLS, (251) SPARK IGNITION ENGINE (10) - ENGINE

1

A7277

WEIGHT

- governor

2шт.

2

A33471

KIT

FINGER - governor (Set of 4)

1шт.

3

A17504

BOLT

- governor weight

2шт.

4

25-235

SLOTTED NUT

NUT - 5/16" N.F. hex., sltd.

2шт.

5

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

6

A7282

PIN,6.31mm OD x 47.63mm L

- bell, Serial Range: sleeve-fingers

2шт.

7

A7111

SNAP RING,#25, Ext

Ring, Snap, , bell sleeve pins #25, Ext

4шт.

8

A7284

SLEEVE - governor bell

1шт.

9

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, bell

1шт.

11

A20833

CAP ASSY. - timing gear cover

1шт.

12

A27869

BUTTON - thrust (Rubber bumper)

1шт.

13

A27867

GASKET

- timing gear cover cap

1шт.

14

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Cover Hex, 3/8"-16 x 1 1/8", G5, Full Thd

3шт.

14

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Cover Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

15

92-6

LOCK WASHER,3/8"

4шт.

A34716

LEVER ASSY. - governor shaft

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - governor

1шт.

18

NSS

NOT SOLD SEPARAT

LEVER - governor

1шт.

19

NSS

NOT SOLD SEPARAT

FINGER - governor

1шт.

20

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- finger to shaft, #10-32 x 5/8" rd. hd.

2шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, 3/16" x 1 5/8", Slotted

1шт.

23

A20835

SLEEVE - governor shaft bearing

1шт.

24

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - governor shaft

2шт.

25

A7293

WASHER

- thrust, governor shaft

1шт.

26

A7292

SEAL

- oil, governor shaft

1шт.

27

A10326

BALL JOINT

JOINT - ball, governor lever

1шт.

28

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

1шт.

30

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex.

1шт.

31

A24307

ROD

- governor, Serial Range: lever-carburetor

1шт.

32

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

33

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

34

A20868

SPRING

- governor

1шт.

35

A34713

ROD - throttle, front

1шт.

36

A20846

COLLAR

- stop, throttle rod

1шт.

37

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar, 1/4 x 1/4" N.C., sckt. hd.

1шт.

38

A36578

ROD

CHOKE ASSY

1шт.

39

A20813

CARBURETOR

ASSY, See Figure 58

1шт.
