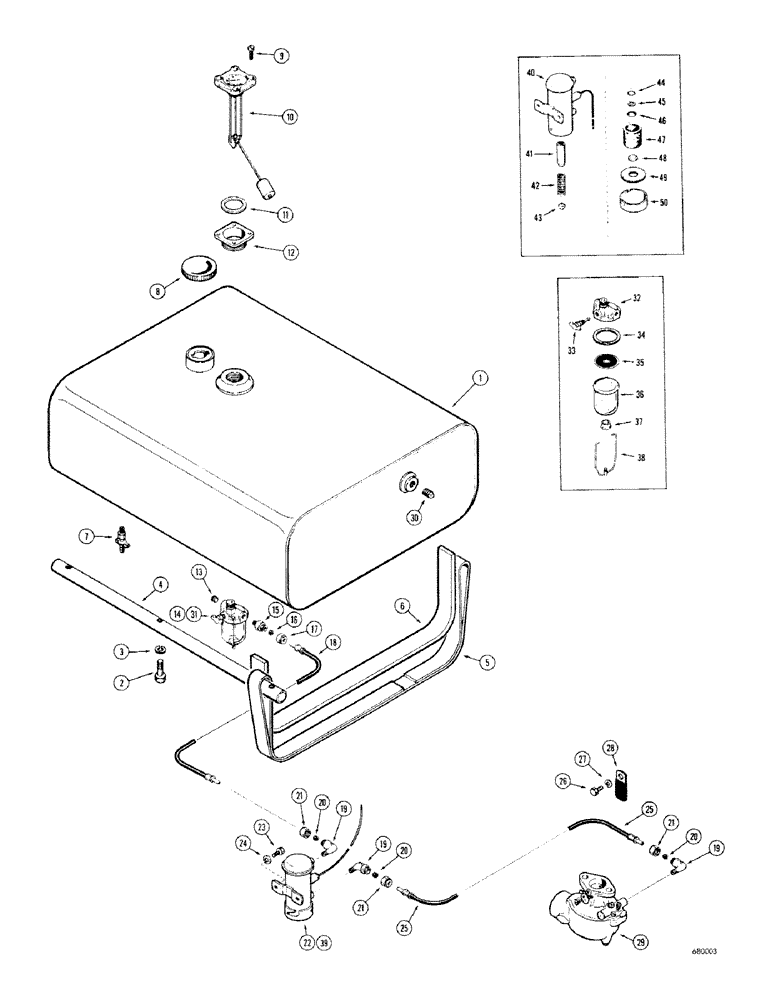

Запчасти Case 680CK (056) - FUEL TANK, (251) SPARK IGNITION ENGINE (10) - ENGINE

1

L11113

TANK ASSEMBLY - fuel

1шт.

2

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

6шт.

3

92-8

LOCK WASHER,1/2"

6шт.

4

L11119

ROD - fuel tank support

2шт.

5

L11114

STRAP - fuel tank mounting

2шт.

6

L11115

PAD - fuel tank

2шт.

7

217-102

PLUG, DRAIN

DRAIN COCK - fuel tank

1шт.

8

A18870

FILLER CAP

CAP - fuel tank, filler neck

1шт.

L11118

GAUGE

ASSEMBLY - fuel level

1шт.

9

71-410

SCREW

- fillister head (1/4" - 20 NC x 5/8")

4шт.

10

NSS

NOT SOLD SEPARAT

GAUGE - fuel level

1шт.

11

L11117

GASKET

- fuel gauge

1шт.

12

L11116

ADAPTER

- fuel gauge

1шт.

13

221-41

PLUG

- pipe, slotted headless (1/8" NPT)

1шт.

14

A26615

STRAINER ELEMENT

STRAINER ASSEMBLY - fuel (Parts list ref. no. 31 thru 38)

1шт.

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR ASSEMBLY - flex tube, straight

1шт.

15

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube, straight

1шт.

16

222-103

SLEEVE,5/16" Tube

- flex tube fitting 5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - flex tube fitting (5/16" tube O.D.)

1шт.

18

L11124

HOSE - strainer to fuel pump (10-1/2" long)

1шт.

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - flex tube, 90 degrees

3шт.

19

NSS

NOT SOLD SEPARAT

ELBOW - flex tube, 90 degrees

1шт.

20

222-103

SLEEVE,5/16" Tube

- flex tube fitting 5/16" Tube

1шт.

21

222-113

TUBE NUT,9/16"-24

NUT - flex tube fitting (5/16" tube O.D.)

1шт.

22

L11122

FUEL PUMP

PUMP - fuel, electric (Parts list ref. no. 39 thru 50)

1шт.

23

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

L11125

HOSE - fuel pump to carburetor (60" long)

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

A22880

CLIP

CLAMP - hose

2шт.

29

A20813

CARBURETOR

ASSEMBLY - engine fuel, Parts list Figure 58

1шт.

30

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

31

A26615

STRAINER ELEMENT

STRAINER ASSEMBLY - fuel, A26615 strainer

1шт.

32

A11215

BODY

- fuel strainer, A26615

1шт.

33

A11205

VALVE

- fuel shut-off, A26615 strainer

1шт.

34

A11203

GASKET

- bowl to body, A26615 fuel strainer

1шт.

35

A11202

SCREEN

- fuel strainer, A26615

1шт.

36

A11204

BOWL

- sediment, glass, A26615 fuel strainer

1шт.

37

A11210

ADJUSTER

NUT - bowl retaining, A26615 fuel strainer

1шт.

38

A11206

BAIL

- bowl hanger, A26615 fuel strainer

1шт.

39

L11122

FUEL PUMP

PUMP - fuel, electric, L11122

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - fuel pump, L11122

1шт.

41

A40310

PLUNGER

- fuel pump, L11122

1шт.

42

A40207

SPRING

- plunger, L11122 fuel pump

1шт.

43

A40313

CUP

VALVE - cup, L11122 fuel pump

1шт.

44

A40318

O-RING,0.429" ID x 0.106"

SEAL - "O" ring, L11122 fuel pump

1шт.

45

A40317

WASHER

- "O" ring retaining, L11122 fuel pump

1шт.

46

A40316

RETAINER

- washer, L11122 fuel pump

1шт.

47

A40314

FILTER CARTRIDGE

FILTER - fuel, L11122 pump

1шт.

48

A40311

MAGNET

- plunger (Permanent type), L11122 fuel pump

1шт.

49

A40315

GASKET

- cover, L11122 fuel pump

1шт.

50

A40312

COVER

- fuel pump, L11122

1шт.
