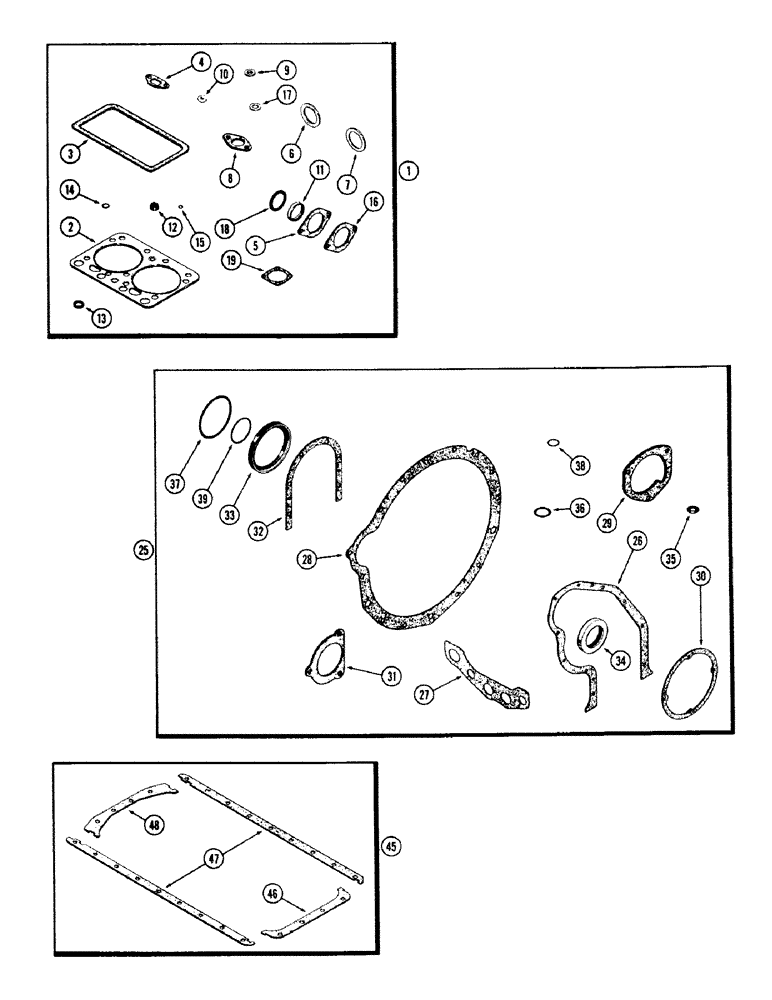

Запчасти Case 680CK (054) - ENGINE GASKET KITS, (251) SPARK IGNITION ENGINE (10) - ENGINE

1

A40899

KIT

VALVE GRIND KIT (See note)

1шт.

2

A23118

GASKET

- cylinder head

2шт.

3

A57593

GASKET

- cylinder head cover

2шт.

4

A27905

GASKET

- water manifold

4шт.

5

A28113

GASKET

- thermostat housing (Discard)

1шт.

6

A27909

GASKET

- exhaust manifold

4шт.

7

A7363

MANIFOLD GASKET

- intake manifold

2шт.

8

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

9

A23685

GASKET

- breather tube (11/16 x 1-1/16 x 1/16" rubber)

2шт.

10

A23684

GASKET

GASKET - cover studs

4шт.

11

A21034

SEAL

SEAL - thermostat

1шт.

12

A10726

SEAL

SHIELD - oil, intake valve

4шт.

13

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber)

4шт.

14

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

2шт.

15

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

2шт.

16

A21035

GASKET

- thermostat housing

1шт.

17

A34133

GASKET

- breather tube (9/32 x 1/2 x 3/64" fiber)

2шт.

18

A30954

GASKET

SEAL - thermostat (Discard)

1шт.

19

A27539

GASKET

- carburetor elbow (Discard)

1шт.

25

A40349

KIT

CYLINDER BLOCK KIT (See note)

1шт.

26

A33018

GASKET

- timing gear cover

1шт.

27

A21084

GASKET

- oil filter base

1шт.

28

A11649

GASKET

- coverter housing (Discard)

1шт.

29

A57596

GASKET

- water pump body

1шт.

30

A27867

GASKET

- timing gear cover cap

1шт.

31

A27933

GASKET

- starter

1шт.

32

A32830

GASKET

- rear oil seal retainer

1шт.

33

A23085

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2")

1шт.

34

A57342

SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2")

1шт.

35

A7292

SEAL

- oil, governor

1шт.

36

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - oil pump (1-3/16 x 1-7/16 x 1/8") (Discard)

1шт.

37

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - hyd, pump hole cover (4-1/2 x 4-3/4 x 1/8")

1шт.

38

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor (1 x 1-1/4 x 1/8") (Discard)

1шт.

39

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel (2-3/4 x 3 x 1/8") (Discard)

1шт.

45

A7616

GASKET KIT

OIL PAN KIT (See note)

1шт.

46

NSS

NOT SOLD SEPARAT

GASKET - oil pan, front

1шт.

47

NSS

NOT SOLD SEPARAT

GASKET - oil pan, sides

2шт.

48

NSS

NOT SOLD SEPARAT

GASKET - oil pan, rear

1шт.
