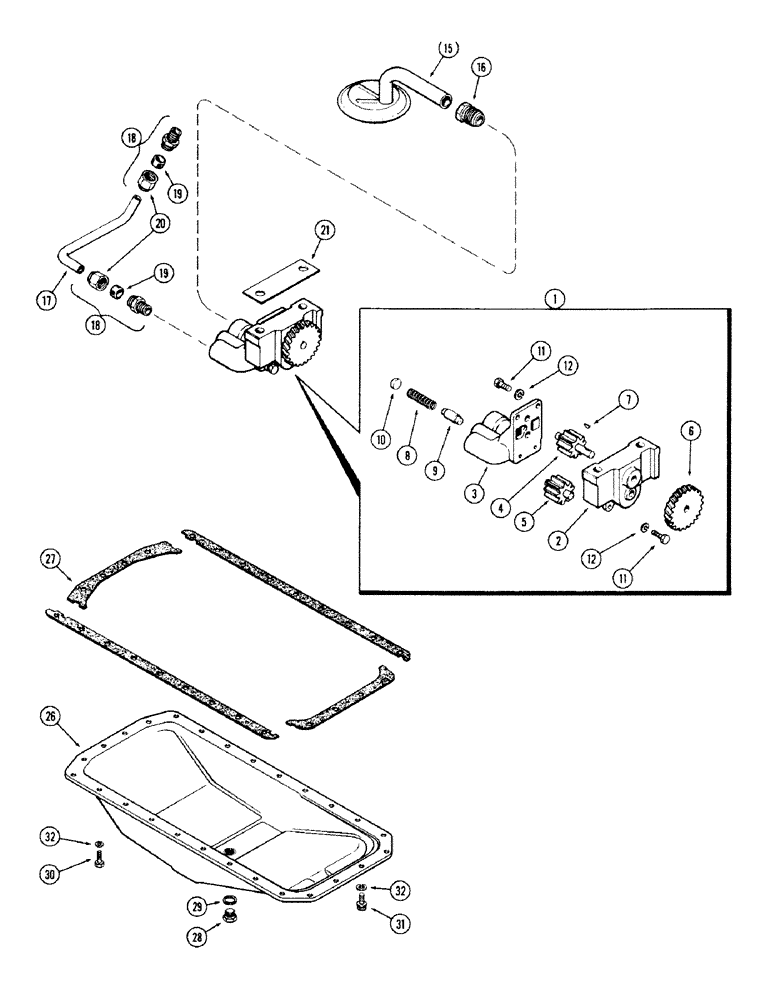

Запчасти Case 680CK (050) - OIL PUMP, (251) SPARK IGNITION ENGINE, 1ST USED ENG. SER. NO 2202205 (10) - ENGINE

1

A57486

PUMP

ASSY. - oil

1шт.

2

A27487

BODY - oil pump

1шт.

3

A57488

COVER

- pump body

1шт.

4

A34942

GEAR ASSY. - w/shaft & key (Lead gear)

1шт.

5

A34945

GEAR ASSY. - w/shaft (Follow gear)

1шт.

6

A34947

GEAR - pump drive (External)

1шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

Drive gear #3, 1/8" x 1/2"

1шт.

8

A34993

RING

SPRING - relief valve

1шт.

9

A34992

PISTON

VALVE - relief

1шт.

10

A34951

X

PLUG - relief valve, 45/64" pump type

1шт.

11

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

15

A34953

SCREEN

TUBE - oil suction, w/screen

1шт.

16

222-510

TUBE NUT,1 1/4"-18

NUT - suction tube to pump

1шт.

17

A57388

TUBE

-, Serial Range: pump-filter

1шт.

18

222-51

ELBOW,90 Degree, 1"-18 Fem x 1/2" NPTF

CONNECTOR ASSY. - tube

2шт.

19

222-106

SLEEVE,5/8" Tube

- for 5/8" Tube

1шт.

20

222-116

TUBE NUT,1"-18

NUT - for 5/8" tube

1шт.

21

A57454

SHIM,.005" Thk

Pump to front brg. cap .005" Thk

1шт.

21

A57455

SHIM,.010" Thk

Pump to frt. brg. cap .010" Thk

1шт.

21

A57456

SHIM,.025" Thk

Pump to frt. brg. cap .025" Thk

1шт.

26

NLS

NO LONGER SERVICED

PAN - oil

1шт.

27

A7616

GASKET KIT

- oil pan

1шт.

28

A14280

PLUG

- drain, oil pan

1шт.

29

A58608

GASKET

- drain plug, oil pan

1шт.

30

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

22шт.

31

A34929

BOLT (SPREADER)

BOLT - oil pan, 3/8 x 1-1/8" N.C., 12 pt. hd.

2шт.

32

92-6

LOCK WASHER,3/8"

oil pan 3/8"

24шт.
