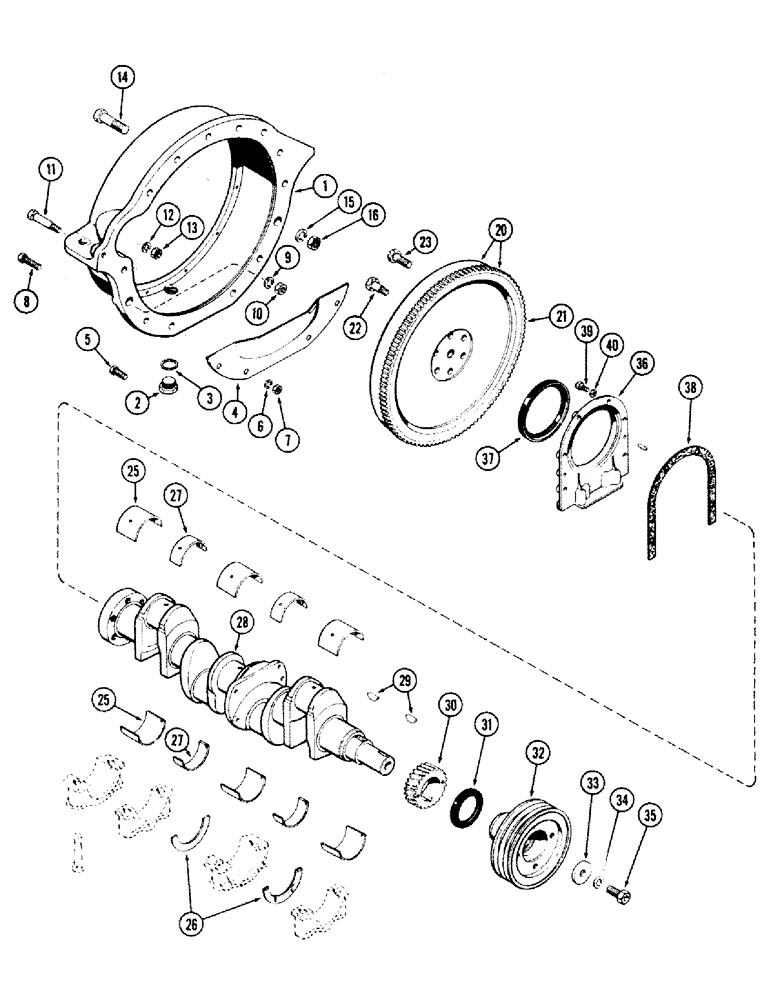

Запчасти Case 680CK (046) - FLYWHEEL AND HOUSING, (251) SPARK IGNITION ENGINE (10) - ENGINE

1

A34710

HOUSING - flywheel

1шт.

2

A20917

PLUG

- drain, flywheel housing

1шт.

3

A20916

MANIFOLD GASKET

WASHER - drain plug

1шт.

4

A58931

GUARD

SHIELD - dust, clutch housing

1шт.

5

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Shield Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

6

92-8

LOCK WASHER,1/2"

4шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

8

A20108

BOLT - housing, 3/4 x 2-3/4" N.F. hex., special

2шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

10

25-1112

NUT,3/4"-16, G5

- 3/4" N.F. hex.

2шт.

11

A32607

STEP BOLT

- shoulder, 1/2 x 3" N.C. special

1шт.

11

A32608

STEP BOLT

BOLT - shoulder, 1/2 x 2-3/16" N.C. special

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

2шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Housing to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

14

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- housing to block, 1/2 x 1-3/4" N.F. hex.

3шт.

15

92-8

LOCK WASHER,1/2"

6шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

3шт.

20

A34711

FLYWHEEL ASSY

1шт.

21

A20875

GEAR, RING

GEAR - ring, flywheel starter

1шт.

22

A11549

STEP BOLT

BOLT - dowel, flywheel, 9/16 x 1-17/32" N.F. special

2шт.

23

A11550

BOLT (SPREADER)

BOLT - flywheel, 5/8 x 1-1/2" N.F. special

4шт.

25

A28687

LINING

LINER KIT - main brg. (Wide) (Std.), crankshaft

3шт.

25

A7182

KIT

LINER KIT - main brg. (Wide) (-.002"), crankshaft

3шт.

25

A7188

BEARING LINER

LINER KIT - main brg. (Wide) (-.010"), crankshaft

3шт.

25

A7194

KIT

LINER KIT - main brg. (Wide) (-.020"), crankshaft

3шт.

25

A7200

KIT

LINER KIT - main brg. (Wide) (-.030"), crankshaft

3шт.

26

A27835

WASHER

- thrust, main brg., center (Std.), crankshaft

2шт.

26

A7204

WASHER

- thrust, main brg., center (+.006"), crankshaft

2шт.

27

A20394

LINING

LINER KIT - main brg. (Narrow) (Std.), crankshaft

2шт.

27

A20579

LINING

LINER KIT - main brg. (Narrow) (-.002"), crankshaft

2шт.

27

A20582

LINING

LINER KIT - main brg. (Narrow) (-.010"), crankshaft

2шт.

27

A20585

KIT

LINER KIT - main brg. (Narrow) (-.020"), crankshaft

2шт.

27

A20588

KIT

LINER KIT - main brg. (Narrow) (-.030"), crankshaft

2шт.

28

A22578

CRANKSHAFT

1шт.

29

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crankshaft gear & fan drive pulley #C, 5/16" x 1 1/8", HT

2шт.

30

A27837

GEAR

- crankshaft

1шт.

31

A57342

SEAL

- oil, front (2-5/8 x 3-5/8 x 1/2"), crankshaft

1шт.

32

A60012

PULLEY

- fan drive (Replaces A34702), crankshaft

1шт.

33

A27903

WASHER

- pulley (21/32 x 2-1/8 x 1/4"), crankshaft

1шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

35

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

- drive pulley retaining, 5/8 x 1-1/2" N.F. Special, Crankshaft

1шт.

36

A57457

RETAINER

ASSY. - rear oil seal, crankshaft

1шт.

37

A23085

OIL SEAL

- oil, rear (4-3/4 x 5-3/4 x 1/2"), crankshaft

1шт.

38

A32830

GASKET

- rear oil seal retainer, crankshaft

1шт.

39

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Retainer, crankshaft Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

40

92-6

LOCK WASHER,3/8"

crankshaft 3/8"

6шт.
