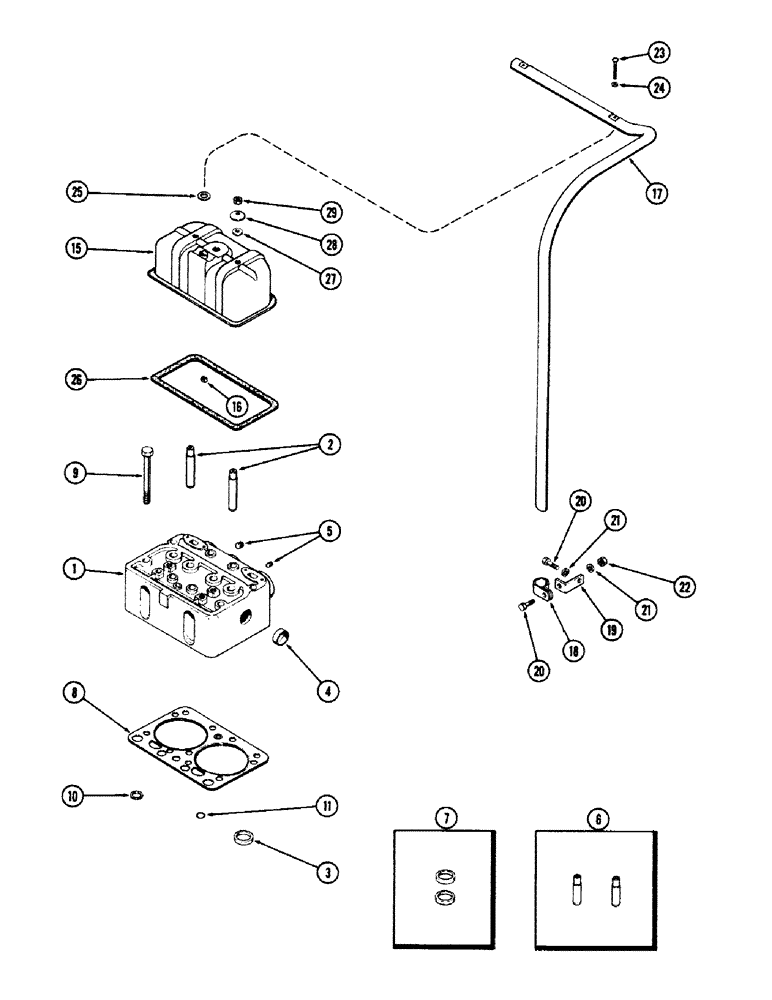

Запчасти Case 680CK (042) - CYLINDER HEAD AND COVER, (251) SPARK IGNITION ENGINE, SEE (10) - ENGINE

1

A24544

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting no. A24543)

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order ref. 6)

4шт.

3

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 7)

2шт.

4

A34124

PLUG,Cup, 1 5/8", Stainless

- cylinder head (1-41/64" cup type)

2шт.

5

221-841

PLUG

- cylinder head (1/4" P.T., sckt. hd.)

2шт.

6

A21673

GUIDE

KIT - valves (Set of 2)

4шт.

7

A33453

KIT

INSERT KIT - exhaust valve seat (Set of 2)

2шт.

8

A23118

GASKET

- cylinder head

2шт.

9

A23355

BOLT

- cylinder head, 9/16 x 6" N.C. hex.

18шт.

10

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber)

4шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

2шт.

15

A23681

COVER ASSY

. - cylinder head

2шт.

16

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube (1/4" N.C. speed)

1шт.

17

A24325

TUBE - breather

1шт.

18

A24324

CLIP - breather tube

1шт.

19

A24294

BRACKET - breather tube clip

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clip & bracket Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

23

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube, 1/4 x 2-1/4" N.C., rd. hd.

2шт.

24

A34133

GASKET

- screw (9/32 x 1/2 x 3/64" fiber)

2шт.

25

A23685

GASKET

- tube (11/16 x 1-1/16 x 1/16" rubber)

2шт.

26

A57593

GASKET

- cylinder head cover

2шт.

27

A23684

GASKET

GASKET - cover stud

4шт.

28

A23683

WASHER

- cover stud

4шт.

29

25-117

NUT,7/16"-20, G5

- cover stud, 7/16" N.F. hex.

4шт.
