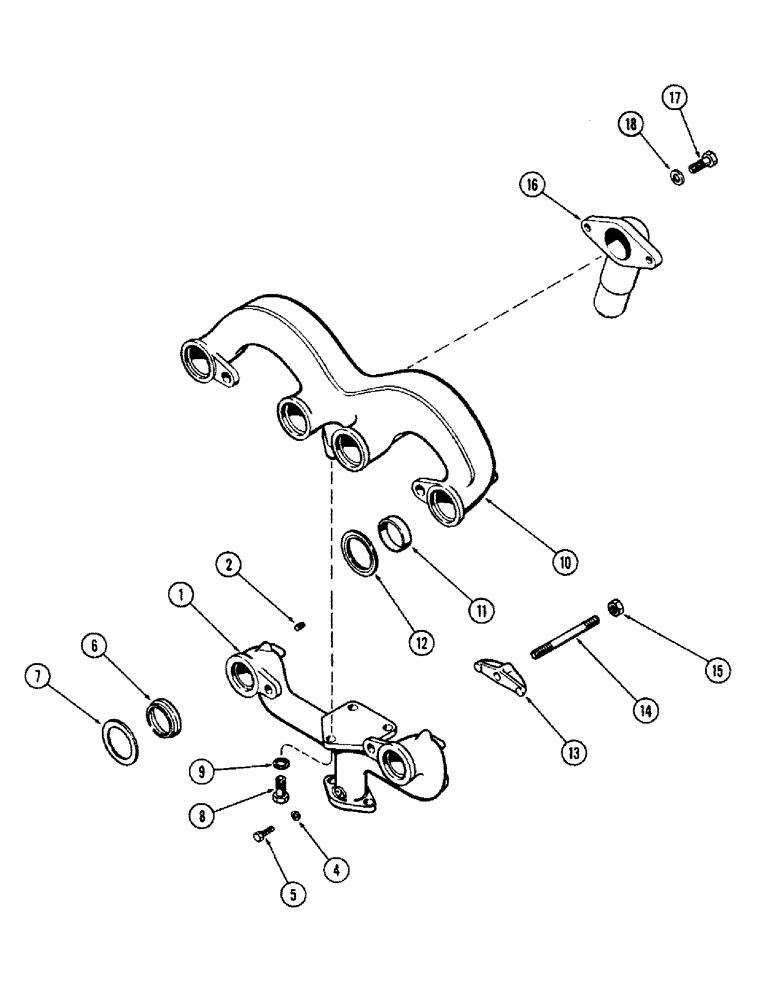

Запчасти Case 680CK (038) - MANIFOLD, (251) SPARK IGNITION ENGINE (10) - ENGINE

1

A18508

MANIFOLD

- intake

1шт.

2

221-13

PLUG,Sq Hd, 3/8"-18

- (3/8" P.T., sq. hd.)

1шт.

3

221-11

PLUG,Sq Hd, 1/8"-27

- (1/8" P.T., sq. hd.)

2шт.

4

A20778

GASKET - intake manifold boss bolt

1шт.

5

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Manifold boss Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

6

A21634

FERRULE

- intake manifold

2шт.

7

A7363

MANIFOLD GASKET

- intake manifold

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Int. to exh. manifold Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

9

92-6

LOCK WASHER,3/8"

3шт.

10

A20811

MANIFOLD - exhaust

1шт.

11

A21635

FERRULE

- exhaust manifold

4шт.

12

A27909

GASKET

- exhaust manifold

4шт.

13

A24368

CLAMP

- intake & exhaust manifold

4шт.

14

A27911

STUD

- clamp, 7/16" N.C./N.F. x 6"

4шт.

15

25-117

NUT,7/16"-20, G5

- clamp stud, 7/16" N.F. hex.

4шт.

16

A17488

ELBOW

- exhaust manifold

1шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Elbow Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

18

92-8

LOCK WASHER,1/2"

2шт.
