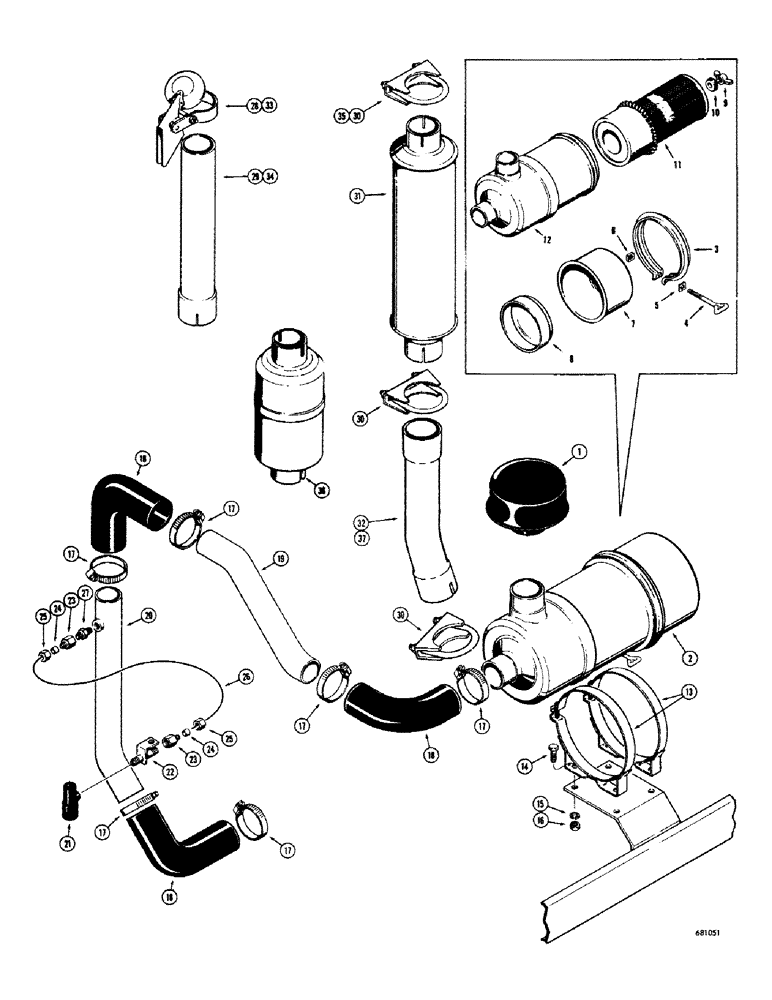

Запчасти Case 680CK (036) - AIR CLEANER AND MUFFLER, (251) SPARK IGNITION ENGINE (10) - ENGINE

1

A21433

CAP

- air cleaner

1шт.

2

F84514

AIR CLEANER

- dry type

1шт.

F84999

CLAMP,168.28mm

ASSEMBLY - air cleaner cup

1шт.

3

NSS

NOT SOLD SEPARAT

CLAMP - air cleaner

1шт.

4

L30338

BOLT,Band Clamp Wing, 1/4" - 20 x 3.875", Gr 2

SCREW - special, clamp

1шт.

5

L30337

WASHER - square

1шт.

6

25-224

SQUARE NUT,Sq, 1/4"-20

- square (1/4" - 20 NC)

1шт.

7

F91760

CUP

- air cleaner

1шт.

8

F22312

BAFFLE

- air cleaner

1шт.

9

D37977

CAP

NUT - winged, special

1шт.

10

D37976

GASKET,14.61mm ID x 27.43mm OD x 3.3mm Thk

- nut

1шт.

11

F84998

FILTER, ELEMENT

ELEMENT - air cleaner

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

13

L11247

BAND

CLAMP - air cleaner mounting

2шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

6шт.

18

L11251

ELBOW

- hose, 90 degrees

3шт.

19

L13630

TUBE - air cleaner to carburetor, at air cleaner 2.25" OD

1шт.

20

L13635

TUBE - air cleaner to carburetor, at carburetor

1шт.

21

A17652

ELECTRICAL GAUGE

GAUGE - air cleaner restriction

1шт.

22

L13632

BRACKET - gauge

1шт.

222-681

FITTING,5/16"-24 x 1/8" NPT Fem, Comp

COUPLING ASSEMBLY - female

2шт.

23

NSS

NOT SOLD SEPARAT

COUPLING - female

1шт.

24

222-650

SLEEVE,1/8" Tube, Comp

1шт.

25

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1шт.

26

L13269

TUBE - gauge to air intake tube 42" L

1шт.

27

L10234

X

CONNECTOR - special, filter type (When stock is exhausted, order D36264 connector for service)

1шт.

D36264

FITTING

CONNECTOR - special, filter type

1шт.

28

74081

X

CAP - exhaust pipe

1шт.

29

L13824

EXTENSION

PIPE - exhaust, upper

1шт.

30

A13240

CLAMP,2-5/8" ID

- tube

3шт.

31

A15163

MUFFLER

- exhaust

1шт.

32

L13643

PIPE

- exhaust, lower

1шт.

33

D28028

CAP

- exhaust, spark arrester

1шт.

34

L15259

PIPE

EXTENSION - exhaust, spark arrester

1шт.

35

L15258

CLAMP

- muffler

1шт.

36

L15256

MUFFLER - spark arrester

1шт.

37

L15257

PIPE - exhaust, spark arrester

1шт.
