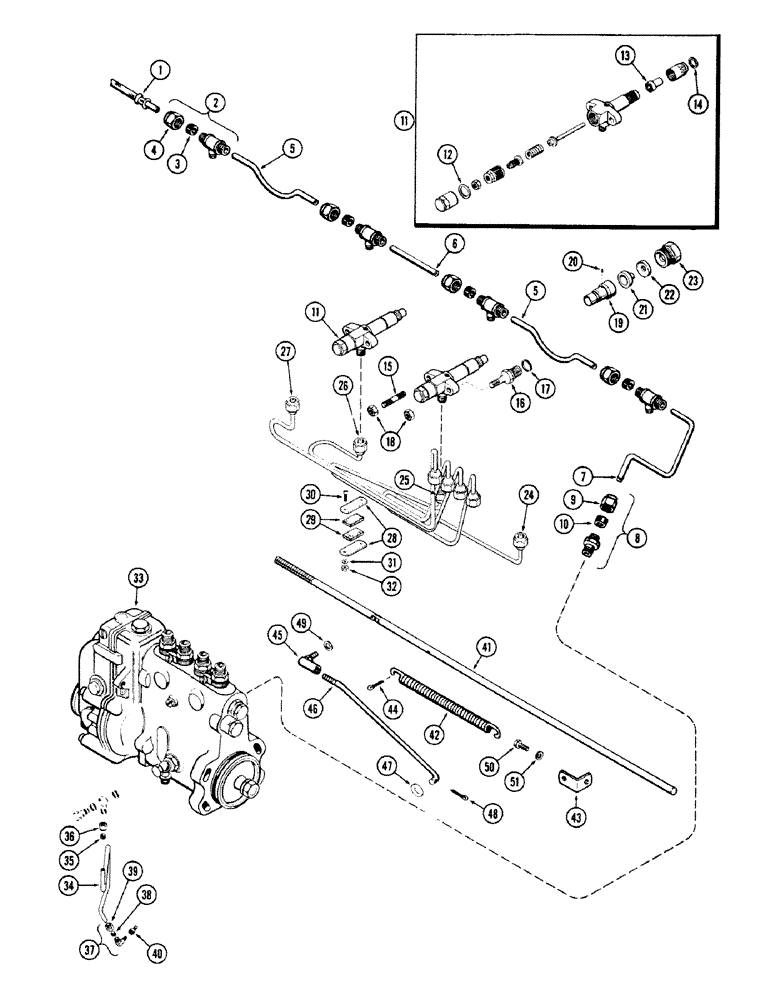

Запчасти Case 680CK (030) - FUEL INJECTION SYSTEM, (267) DIESEL ENGINE (10) - ENGINE

1

L11123

HOSE - leak-off (To fuel tank)

1шт.

2

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSY. - leak-off lines junction

4шт.

3

222-102

SLEEVE,1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" O.D. tube)

1шт.

5

A27981

TUBE

- leak-off, outer

2шт.

6

A20162

TUBE

- leak-off, center

1шт.

7

A22186

TUBE

- leak-off (Pump to no. 1 injector)

1шт.

8

A28098

VALVE

ASSY. - check (One way valve)

1шт.

9

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" O.D. tube)

1шт.

10

222-102

SLEEVE,1/4" Tube

1шт.

11

A8013

NOZZLE INJECTION

INJECTOR ASSY. - nozzle

4шт.

12

A31062

GASKET

- injector cap

1шт.

13

A31159

NOZZLE INJECTION

NOZZLE ASSY. - injector (Atomizer)

1шт.

14

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

GASKET - nozzle seat

1шт.

15

A27929

STUD

- nozzle holder, 3/8" N.C./N.F. x 2-3/16"

4шт.

16

A10678

STUD

- nozzle holder

4шт.

17

A10679

GASKET

- stud (23/32 x 29/32 x 1/32" copper)

4шт.

18

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

8шт.

19

A22978

BODY

- powrcel

4шт.

20

A11810

PIN,3.19mm OD x 6.99mm L

- body locating

4шт.

21

A22975

CAP

- powrcel

4шт.

22

A11812

CLAMP

- powrcel

4шт.

23

A11813

PLUG

SCREW - powrcel retaining

4шт.

24

A20501

TUBE

- injector (No. 1 cylinder)

1шт.

25

A20502

TUBE

- injector (No. 2 cylinder)

1шт.

26

A20503

TUBE

- injector (No. 3 cylinder)

1шт.

27

A20504

TUBE

- injector (No. 4 cylinder)

1шт.

28

A28046

CLAMP

- injection tubes

2шт.

29

A28047

CUSHION

- injection tube clamps

2шт.

30

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamps, #10 x 1" N.C., rd. hd.

4шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

32

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex.

4шт.

33

A22636

PUMP ASSY. - injection (See Figure 34)

1шт.

34

A21786

TUBE - injection pump to oil gallery

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" O.D. tube)

1шт.

37

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - oil tube

1шт.

38

222-102

SLEEVE,1/4" Tube

1шт.

39

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" O.D. tube)

1шт.

40

221-1052

PLUG

BUSHING - reducer, 3/8" to 1/8" (In block)

1шт.

41

A34709

ROD - throttle, front

1шт.

42

A22619

SPRING

- throttle return

1шт.

43

A22620

CLIP

- anchor, return spring

1шт.

44

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

45

A10326

BALL JOINT

JOINT - ball, throttle linkage

1шт.

46

A33953

ROD

LINK - throttle rod

1шт.

47

195-15

WASHER,#12

(1/4 x 1/2 x 1/16")

1шт.

48

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

49

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

50

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

51

92-6

LOCK WASHER,3/8"

1шт.
