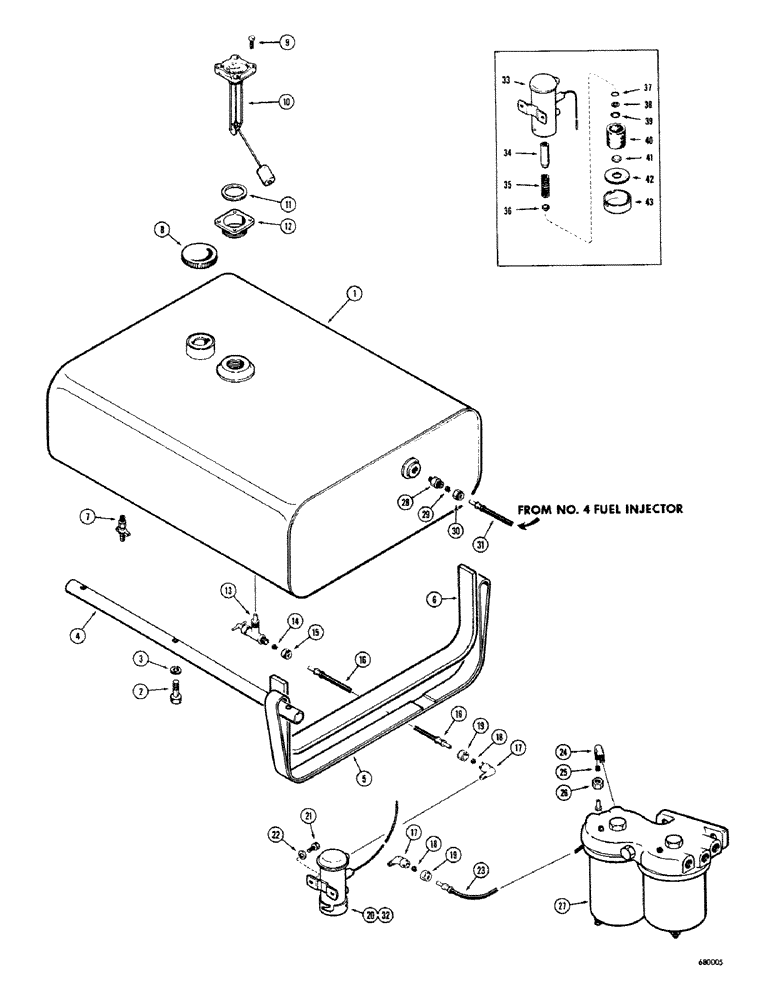

Запчасти Case 680CK (028) - FUEL TANK, (267) DIESEL ENGINE (10) - ENGINE

1

L11113

TANK ASSEMBLY - fuel

1шт.

2

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd

6шт.

3

92-8

LOCK WASHER,1/2"

6шт.

4

L11119

ROD - fuel tank support

2шт.

5

L11114

STRAP - fuel tank mounting

2шт.

6

L11115

PAD - fuel tank

2шт.

7

217-102

PLUG, DRAIN

DRAIN COCK - fuel tank

1шт.

8

A18870

FILLER CAP

CAP - fuel tank, filler neck

1шт.

L11118

GAUGE

ASSEMBLY - fuel level

1шт.

9

71-410

SCREW

- fillister head (1/4" - 20 NC x 5/8")

4шт.

10

NSS

NOT SOLD SEPARAT

GAUGE - fuel level

1шт.

11

L11117

GASKET

- fuel gauge

1шт.

12

L11116

ADAPTER

- fuel gauge

1шт.

A27955

VALVE

ASSEMBLY - needle, fuel tank

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE - needle, fuel tank

1шт.

14

222-104

SLEEVE,3/8" Tube

- flex tube fitting (3/8" tube O.D.)

1шт.

15

222-114

NUT,5/8"-24

NUT - flex tube fitting (3/8" tube O.D.)

1шт.

16

L11120

HOSE ASSY.

HOSE - needle valve to fuel pump (20-1/2" long)

1шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - flex tube, 90 degrees

2шт.

17

NSS

NOT SOLD SEPARAT

ELBOW - flex tube, 90 degrees

1шт.

18

222-104

SLEEVE,3/8" Tube

- flex tube fitting (3/8" tube O.D.)

1шт.

19

222-114

NUT,5/8"-24

NUT - flex tube fitting (3/8" tube O.D.)

1шт.

20

L11122

FUEL PUMP

PUMP - fuel, electric (Parts list ref. no. 32 thru 43)

1шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

L11121

HOSE

- fuel pump to filter (56" long)

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - flex tube, 90 degrees

1шт.

24

NSS

NOT SOLD SEPARAT

ELBOW - flex tube, 90 degrees

1шт.

25

222-104

SLEEVE,3/8" Tube

- flex tube fitting (3/8" tube O.D.)

1шт.

26

222-114

NUT,5/8"-24

NUT - flex tube fitting (3/8" tube O.D.)

1шт.

27

A40435

FILTER

ASSEMBLY - fuel, primary (1st and 2nd stage) Parts list Figure 34

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - flex tube, straight

1шт.

28

NSS

NOT SOLD SEPARAT

CONNECTOR - flex tube, straight

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting (1/4" tube O.D.)

1шт.

31

L11123

HOSE - fuel injector leak-off return (54" long)

1шт.

32

L11122

FUEL PUMP

PUMP - fuel, electric, L11122

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - fuel pump, L11122

1шт.

34

A40310

PLUNGER

- fuel pump, L11122

1шт.

35

A40207

SPRING

- plunger, L11122 fuel pump

1шт.

36

A40313

CUP

VALVE - cup, L11122 fuel pump

1шт.

37

A40318

O-RING,0.429" ID x 0.106"

SEAL - "O" ring, L11122 fuel pump

1шт.

38

A40317

WASHER

- "O" ring retaining, L11122 fuel pump

1шт.

39

A40316

RETAINER

- washer, L11122 fuel pump

1шт.

40

A40314

FILTER CARTRIDGE

FILTER - fuel pump, L11122

1шт.

41

A40311

MAGNET

- plunger (Permanent type), L11122 fuel pump

1шт.

42

A40315

GASKET

- cover, L11122 fuel pump

1шт.

43

A40312

COVER

- fuel pump, L11122 fuel pump

1шт.
