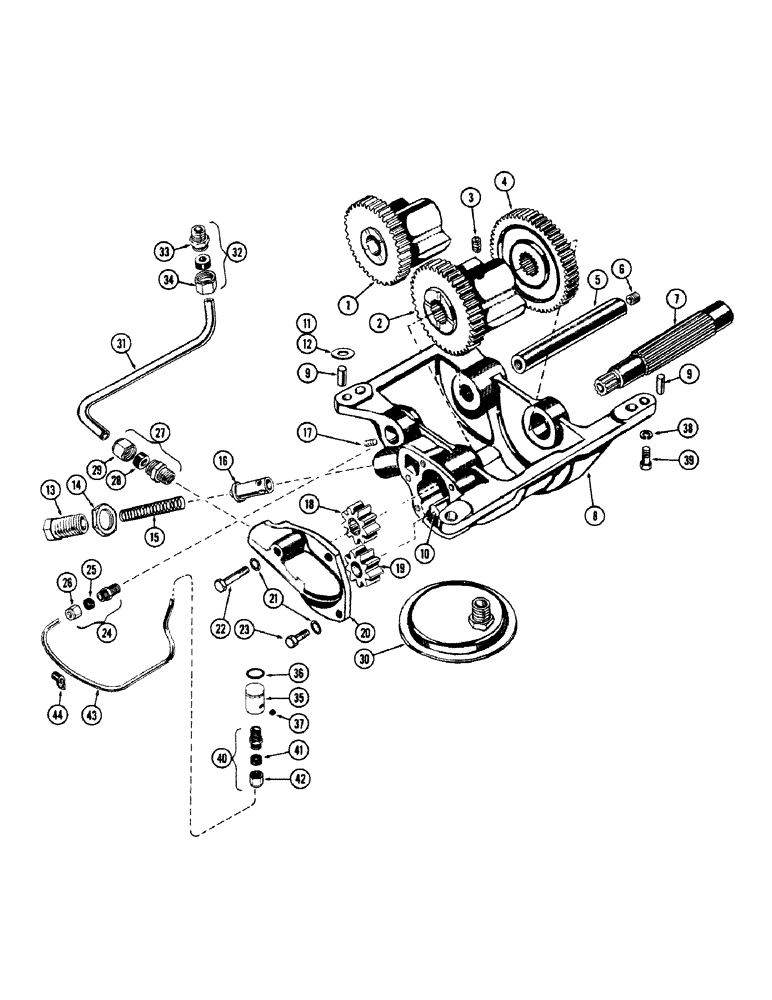

Запчасти Case 680CK (022) - BALANCER AND OIL PUMP, (267) DIESEL ENGINE (10) - ENGINE

A22540

BALANCER

& OIL PUMP ASSY.

1шт.

NOTE:ANOTHER BALANCER USED(NOT A SUB) PART A57960 10/31/96

1шт.

1

A22546

FILTER ASSY

COUNTERWEIGHT - driven (w/out spline)

1шт.

2

A22561

COUNTERWEIGHT - drive (Splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8 x 3/8" N.C., cup pt., sckt, hd.

1шт.

4

A22562

X

GEAR - drive, counterweight

1шт.

5

A22563

SHAFT

- stationary

1шт.

6

221-841

PLUG

- shaft end (1/2" P.T., sckt. hd.)

1шт.

7

A22558

SHAFT

- drive, counterweight

1шт.

8

A22541

HOUSING ASSY. - balancer

1шт.

9

A8134

PIN

- housing locating

2шт.

10

A22543

SHAFT

- oil pump idler gear

1шт.

11

A22670

SHIM,.005" Thk

Hsg. to cyl. block .005" Thk

1шт.

12

A22671

SHIM,.010" Thk

Hsg. to cyl. block .010" Thk

1шт.

13

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil pump relief valve

1шт.

14

A27858

NUT

- lock, adjusting screw

1шт.

15

A23598

VALVE SPRING

SPRING - relief, oil pump

1шт.

16

A22566

PLUNGER

- relief, oil pump

1шт.

17

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, 5/16 x 3/8" cone pt., sckt. hd.

1шт.

18

A22564

GEAR

- drive, oil pump (Splined)

1шт.

19

A22555

GEAR

ASSY. - idler, oil pump, w/bushing

1шт.

20

A22565

COVER ASSY

COVER - oil pump

1шт.

21

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

5шт.

22

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cover Hex, 5/16"-18 x 2", G5

2шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover Hex, 5/16"-18 x 7/8", G5, Full Thd

3шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSY. - (1/4" P.T.)

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

26

87017024

TUBE NUT,1/2"-24

NUT (For 1/4" O.D. tube)

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. (1/2" P.T.)

1шт.

28

222-106

SLEEVE,5/8" Tube

- (For ) 5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

30

A22590

FILTER SCREEN

SCREEN - oil inlet

1шт.

31

A22595

TUBE

- oil pump to filter (5/8" tube)

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - (1/2" P.T.)

1шт.

33

222-106

SLEEVE,5/8" Tube

- (For 5/8" O.D. tube)

1шт.

34

222-116

TUBE NUT,1"-18

NUT - (For 5/8" O.D. tube)

1шт.

35

A57075

PLUG

- oil gallery, cyl. block

1шт.

36

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

"O" RING - plug (1-3/16 x 1-7/16 x 1/8")

1шт.

37

A22593

SET SCREW,1/4" - 18 x 7/8"

- set, plug

1шт.

38

92-8

LOCK WASHER,1/2"

4шт.

39

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Balancer to block Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

40

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR ASSY. - (1/8" P.T.)

1шт.

41

222-102

SLEEVE,1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

NUT - (For 1/4" O.D. tube)

1шт.

43

A22596

TUBE

- oil gallery to balancer shaft (1/4" tube)

1шт.

44

A20541

CLIP

- oil tube

1шт.
