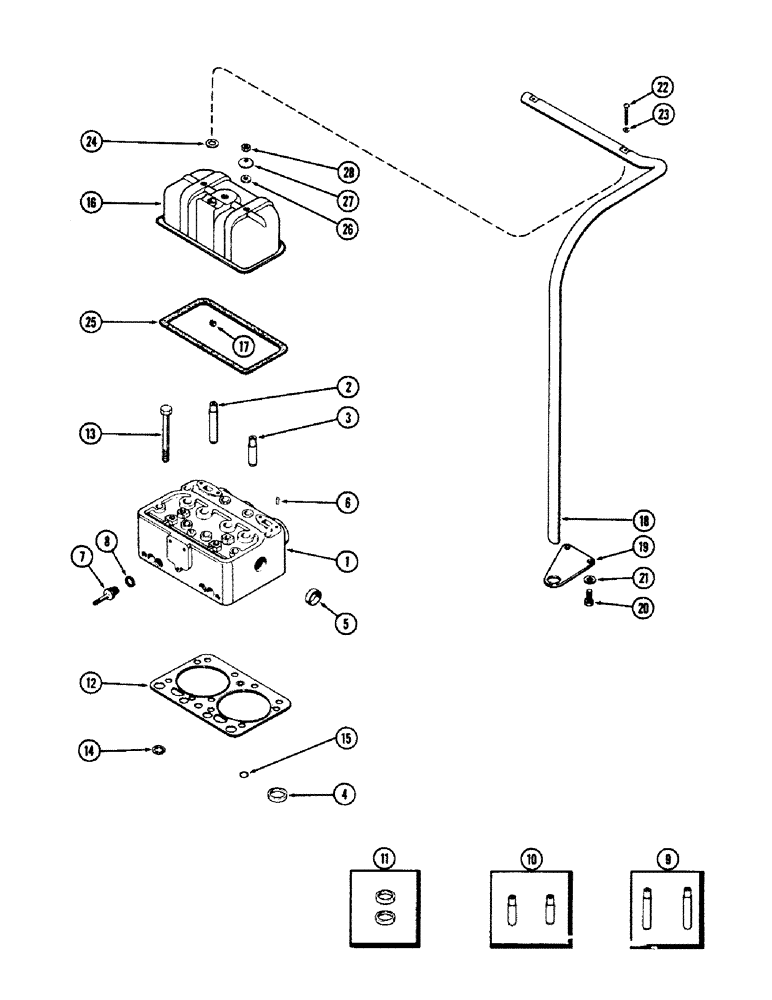

Запчасти Case 680CK (014) - CYLINDER HEAD AND COVER, (267) DIESEL ENGINE (10) - ENGINE

1

A33643

HEAD (CYLINDER)

HEAD ASSY. - cylinder (Casting no. A33613)

2шт.

2

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 9)

2шт.

3

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 10)

2шт.

4

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 11)

2шт.

5

A34124

PLUG,Cup, 1 5/8", Stainless

- cyl. head (1-41/64" cup type)

2шт.

6

A11810

PIN,3.19mm OD x 6.99mm L

- powrcel locating (1/8 x 17/64")

2шт.

7

A10678

STUD

- nozzle holder

2шт.

8

A10679

GASKET

- stud (23/32 x 29/32 x 1/32" copper)

2шт.

9

A21671

GUIDE

KIT - intake valve (Set of 2)

2шт.

10

A21674

GUIDE

KIT - exhaust valve (Set of 2)

2шт.

11

A57484

INSERT

KIT - exhaust valve (Set of 2)

2шт.

12

A23118

GASKET

- cyl. head

2шт.

13

A23355

BOLT

- cyl. head, 9/16 x 6" N.C. hex.

18шт.

14

A7669

RING

- water passage (7/8 x 1-3/32 x 5/64" rubber)

4шт.

15

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - oil passage (1/2 x 11/16 x 3/32")

2шт.

16

A23681

COVER ASSY

. - cyl head

2шт.

17

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube screw, 1/4" N.C. speed

1шт.

18

A34780

TUBE - breather

1шт.

19

A34781

BRACKET - breather tube

1шт.

20

A9936

BOLT - bracket, 3/8 x 1-1/2" N.C. hex.

2шт.

21

195-25

WASHER,3/8"

(13/32 x 13/16 x 1/16")

5шт.

22

75-436

SCREW,Rd, 1/4" - 20 x 2 1/4"

- breather tube, 1/4 x 2" N.C., rd. hd.

2шт.

23

A34133

GASKET

- (9/32 x 1/2 x 3/64" fiber)

2шт.

24

A23685

GASKET

- (11/16 x 1-1/16 x 1/16" rubber)

2шт.

25

A57595

CYLINDER HEAD GASKET

- cyl. head cover

2шт.

26

A23684

GASKET

GASKET - cover stud

4шт.

27

A23683

WASHER

- cover stud

4шт.

28

25-117

NUT,7/16"-20, G5

- cover stud, 7/16" N.F. hex.

4шт.
