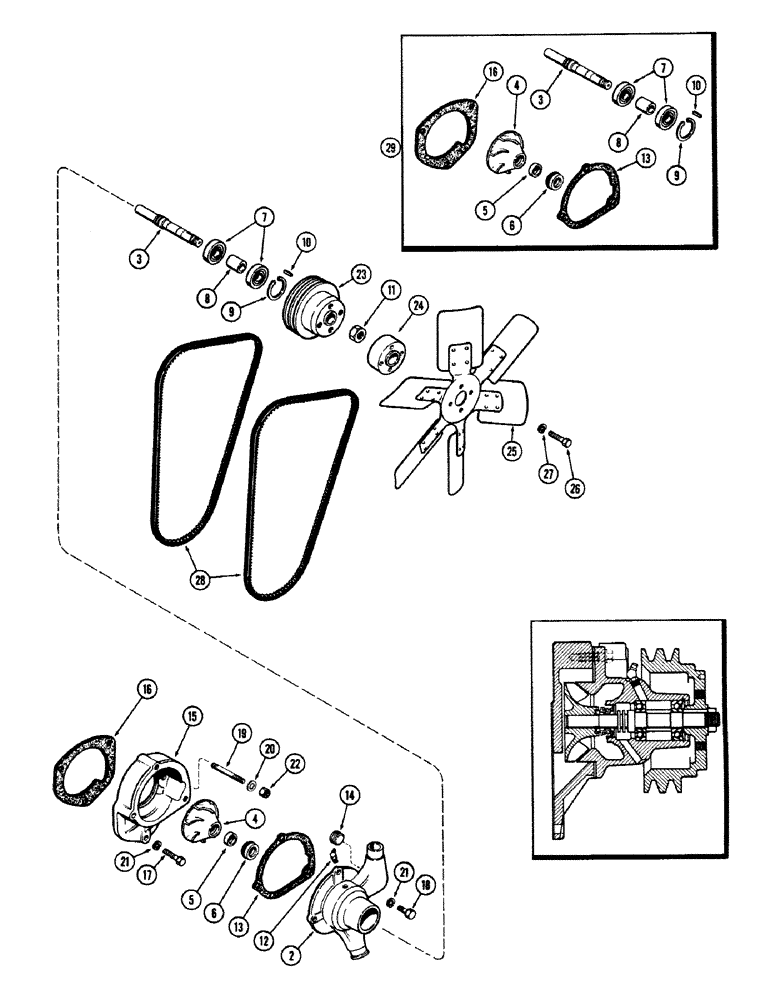

Запчасти Case 680CK (006) - WATER PUMP AND ATTACHING PARTS (10) - ENGINE

A34009

PUMP

ASSY. - water (Not illust.)

1шт.

2

A33998

BODY - water pump

1шт.

3

A21044

SHAFT

- water pump & fan

1шт.

Part of water pump repair kit P/N A40744

1шт.

4

A33999

IMPELLER

- water pump

1шт.

Part of water pump repair kit P/N A40744

1шт.

5

A34000

SEAL

SEAT - impeller

1шт.

Part of water pump repair kit P/N A40744

1шт.

6

A24995

SEAL

ASSY. - water

1шт.

Part of water pump repair kit P/N A40744

1шт.

7

A21045

BALL BEARING,19.99mm ID x 47mm OD x 14mm W

BEARING - ball, pump shaft

2шт.

Part of water pump repair kit P/N A40744

1шт.

8

A24600

SPACER

- bearing (51/64 x 1 x 1-13/64")

1шт.

Part of water pump repair kit P/N A40744

1шт.

9

A22572

SNAP RING,1.85", Int, #185

Ring, Snap, , brg 1.85", Int, #185

1шт.

Part of water pump repair kit P/N A40744

1шт.

10

A21075

KEY

- pulley (3/16" sq. x 5/8")

1шт.

Part of water pump repair kit P/N A40744

1шт.

11

131-580

LOCK NUT,5/8"-18

NUT - pulley ret., 5/8" N.F. Flexloc

1шт.

12

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease (1/8" P.T., 67-1/2 degrees)

1шт.

13

A22600

GASKET

- water, Serial Range: pump-adapter

1шт.

Part of water pump repair kit P/N A40744

1шт.

14

221-845

PLUG,Hex Soc, 3/4"-14

- body (3/4" P.T., sckt. hd.)

1шт.

15

A34441

ADAPTER

- water pump

1шт.

16

A57596

GASKET

- adapter to cyl. block (Replaces A27899)

1шт.

Part of water pump repair kit P/N A40744

1шт.

17

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Adapter Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Adapter Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pump Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Pump Hex, 3/8"-16 x 2", G5

1шт.

19

A33997

STUD

- pump & adapter, 3/8 N.C. x 3-9/16"

1шт.

20

A22317

WASHER

- stud (25-64 x 9/16 x 18 Ga. copper)

1шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

23

A34439

PULLEY - water pump

1шт.

24

L11579

SPACER (Used w/L13551 suction fan) (1-5/16" wide)

1шт.

24

A14887

SPACER (Used w/A17509 pusher fan) (11/16" wide)

1шт.

25

L15290

FAN - radiator (Suction type) (Replaces L13551)

1шт.

25

A17509

FAN

- radiator (Pusher type)

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Used w/L11579 spacer) Hex, 3/8"-16 x 2", G5

4шт.

26

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- fan, 3/8 x 1-3/8" N.C. hex. (Used w/A14887 spacer)

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

L11705

SET OF BELTS,0.50" W x 54.00" L

V-Belt, Fan (2) 0.50" W x 54.00" L

1шт.

29

A40744

KIT

REPAIR KIT - water pump, Includes: Ref. 3 thru 10, 13 and 16

1шт.
