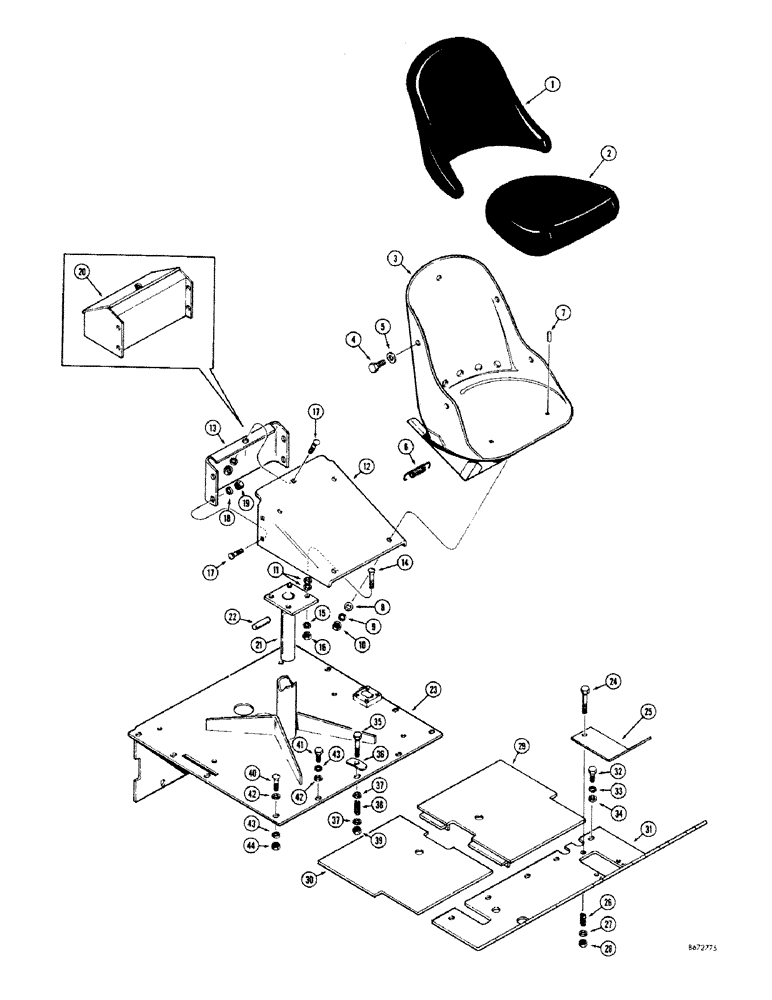

Запчасти Case 680CK (138) - SEAT PLATFORM, FLOOR PLATES AND SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

L11074

SEAT

ASSEMBLY - operator's

1шт.

1

L30536

BACKREST

- seat

1шт.

2

L30535

SEAT CUSHION

CUSHION - seat

1шт.

3

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

5

195-525

WASHER,3/8", SAE

- plain (3/8") Zinc plated

5шт.

6

L30533

VALVE SPRING

SPRING - adjusting

2шт.

7

L30534

X

PIN - cushion alignment

2шт.

8

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

9

92-5

LOCK WASHER,5/16"

4шт.

10

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

11

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

12

L11421

SUPPORT - seat

1шт.

13

L11422

PANEL - seat (For use without tool box)

1шт.

14

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - carriage (3/8" - 16 NC x 1-1/4")

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

17

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

5шт.

18

92-5

LOCK WASHER,5/16"

5шт.

19

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

5шт.

20

L12328

BOX - tool

1шт.

21

L11415

POST - inside, seat

1шт.

22

L11072

PIN - pivot, seat

1шт.

23

L11063

PLATFORM - seat

1шт.

24

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

25

L11171

COVER - access, forward and reverse transmission dipstick

1шт.

26

A33749

SPRING

- compression

1шт.

27

195-21

WASHER,5/16"

- plain () 5/16"

1шт.

28

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

29

L11535

PLATE - floor, L.H.

1шт.

30

L11054

PLATE - floor, R.H

1шт.

31

L11058

PLATE

- floor board, front (When stock is exhausted, order L15292 plate for service)

1шт.

L15292

PLATE

- floor board, front

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

9шт.

33

92-5

LOCK WASHER,5/16"

9шт.

34

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

9шт.

35

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

36

L11056

LATCH - floor plates, battery access

2шт.

37

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

38

A33749

SPRING

- compression, latch

2шт.

39

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), If used with front latch

1-2шт.

40

12-516

BOLT (MACHINE)

BOLT - short carriage (5/16" - 18 NC x 1")

12шт.

41

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

42

195-21

WASHER,5/16"

- plain () 5/16"

14шт.

43

92-5

LOCK WASHER,5/16"

14шт.

44

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

12шт.
