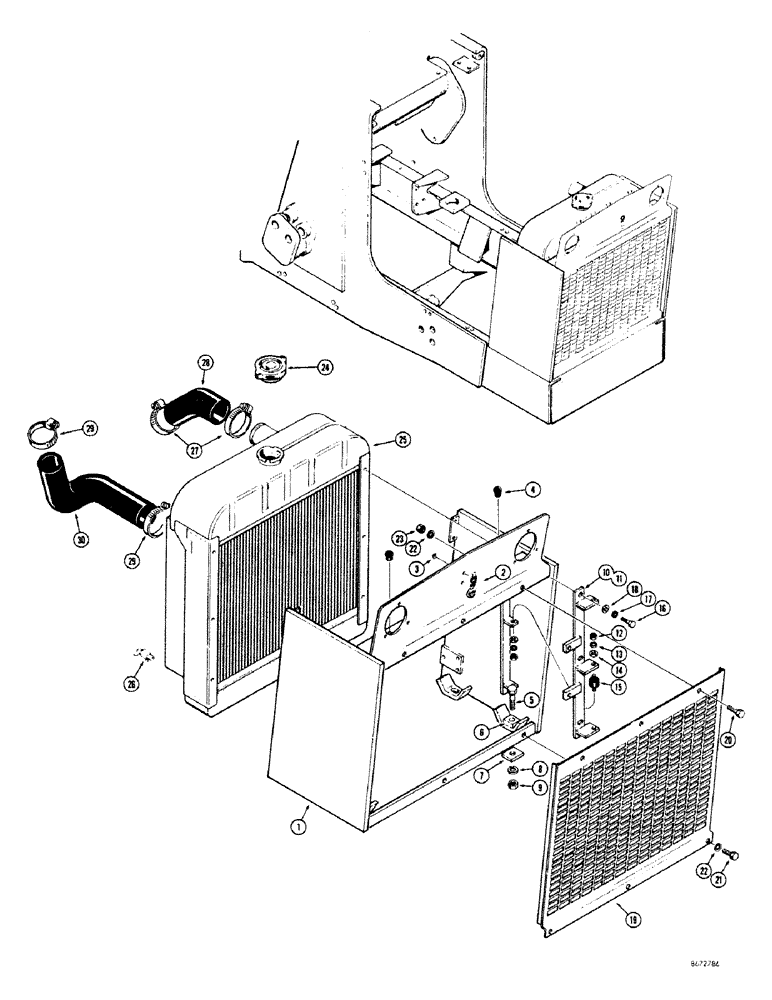

Запчасти Case 680CK (134) - RADIATOR FRAME AND GRILL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L13637

FRAME - radiator guard

1шт.

2

A24526

MEDALLION - CASE

1шт.

3

131-138

PUSH-ON NUT

- Tinnerman, push type (1/4")

2шт.

4

L13638

BUMPER - hood, vibration dampener

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

6

L13644

LARGE PLATE

PLATE - spacer, frame

4шт.

7

195-902

WASHER

- square, beveled (1/2")

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

10

L13811

BRACKET - radiator and hydraulic oil cooler mounting, L. H.

1шт.

11

L13810

BRACKET - radiator and hydraulic oil cooler mounting, R. H. (Not illustrated)

1шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

12шт.

13

92-5

LOCK WASHER,5/16"

12шт.

14

G49411

WASHER - special

12шт.

15

L11236

BOLT

BOLT - special, flex type (Bracket mounting)

6шт.

16

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

6шт.

17

92-5

LOCK WASHER,5/16"

6шт.

18

195-21

WASHER,5/16"

- plain () 5/16"

6шт.

19

L11237

GRILL - radiator guard

1шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

22

92-5

LOCK WASHER,5/16"

6шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

24

D25826

CAP

- radiator, 7 P.S.I.

1шт.

25

L11240

RADIATOR ASSEMBLY - engine cooling

1шт.

26

A23655

VALVE

- radiator drain

1шт.

27

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

2шт.

28

L11242

RADIATOR HOSE,2.50" ID x 6.10", SAE 20R4 Class SC

Upper 2.50" ID x 6.10", SAE 20R4 Class SC

1шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

30

L11241

RADIATOR HOSE,2.00" ID x 8.10", SAE 20R4 Class SC

Lower (Outlet) 2.00" ID x 8.10", SAE 20R4 Class SC

1шт.
