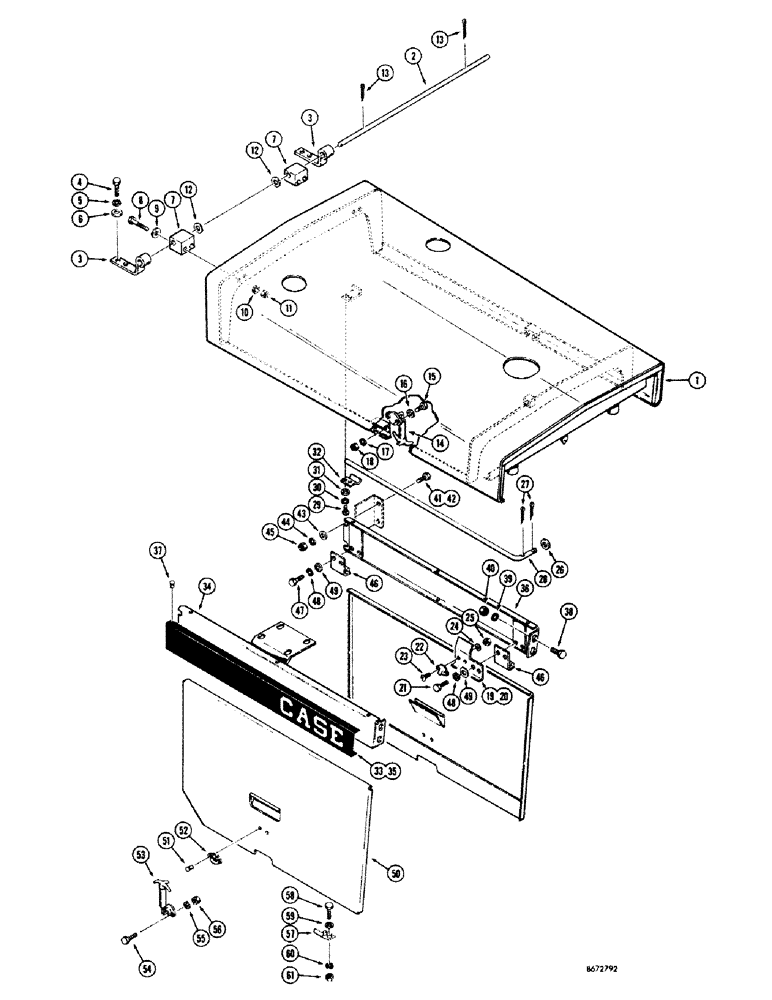

Запчасти Case 680CK (130) - HOOD AND ENGINE SIDE PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

L13616

HOOD - engine

1шт.

2

L13617

PIN - hinge, hood

1шт.

3

L13818

SUPPORT

BRACKET - hood

2шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

195-25

WASHER,3/8"

- plain () 3/8"

4шт.

7

L13618

PIVOT BLOCK - hood

2шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

4шт.

9

195-22

WASHER

- plain (3/8")

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

12

95-10

WASHER,5/8"

- standard wrot () 5/8"

2шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

14

A17232

LATCH ASSY.

LATCH - hood

2шт.

15

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

16

195-15

WASHER,#12

- plain (1/4")

4шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

25-104

NUT,1/4"-20, G5

4шт.

19

L13831

BRACKET - hood latch catch, R.H.

1шт.

20

L13832

BRACKET - hood latch catch, L.H.

1шт.

21

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

22

A17237

HOOK

CATCH - hood latch

2шт.

23

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- round head machine (#10 - 24 NC x 1/2") Zinc plated

4шт.

24

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

25

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated

4шт.

26

195-41

WASHER,5/8"

2шт.

27

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

28

L11139

ROD - hood support

1шт.

29

75-46

SCREW

- round head machine (1/4" - 20 NC x 3/8")

2шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

195-18

WASHER,1/4"

- plain () 1/4"

2шт.

32

L11140

CLAMP - hood support rod

1шт.

33

L11150

PLATE - identification, CASE (R.H.)

1шт.

34

L11143

CHANNEL - hood side

1шт.

35

L11149

PLATE - identification, CASE (L.H.)

1шт.

36

L11142

CHANNEL - hood side, L. H.

1шт.

37

151-550

RIVET - button head (1/8" dia. x 1/8")

12шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

39

92-5

LOCK WASHER,5/16"

4шт.

40

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

41

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

3шт.

42

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

43

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

44

92-5

LOCK WASHER,5/16"

4шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

46

L11441

BRACKET - side panel mounting, at channel

4шт.

47

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

48

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

49

195-18

WASHER,1/4"

- plain () 1/4"

8шт.

50

L11775

PANEL - engine side, R. H.

1шт.

L11776

PANEL - engine side, L. H. (Not illustrated)

1шт.

51

151-551

RIVET - button head (3/16" dia. x 1/8")

2шт.

52

A17237

HOOK

CATCH - side panel latch

1шт.

53

A17232

LATCH ASSY.

LATCH - engine side panel

2шт.

54

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

55

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

56

25-104

NUT,1/4"-20, G5

4шт.

57

L11440

RETAINER

- side panels

4шт.

58

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

8шт.

59

195-18

WASHER,1/4"

- plain () 1/4"

8шт.

60

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

61

25-104

NUT,1/4"-20, G5

8шт.
