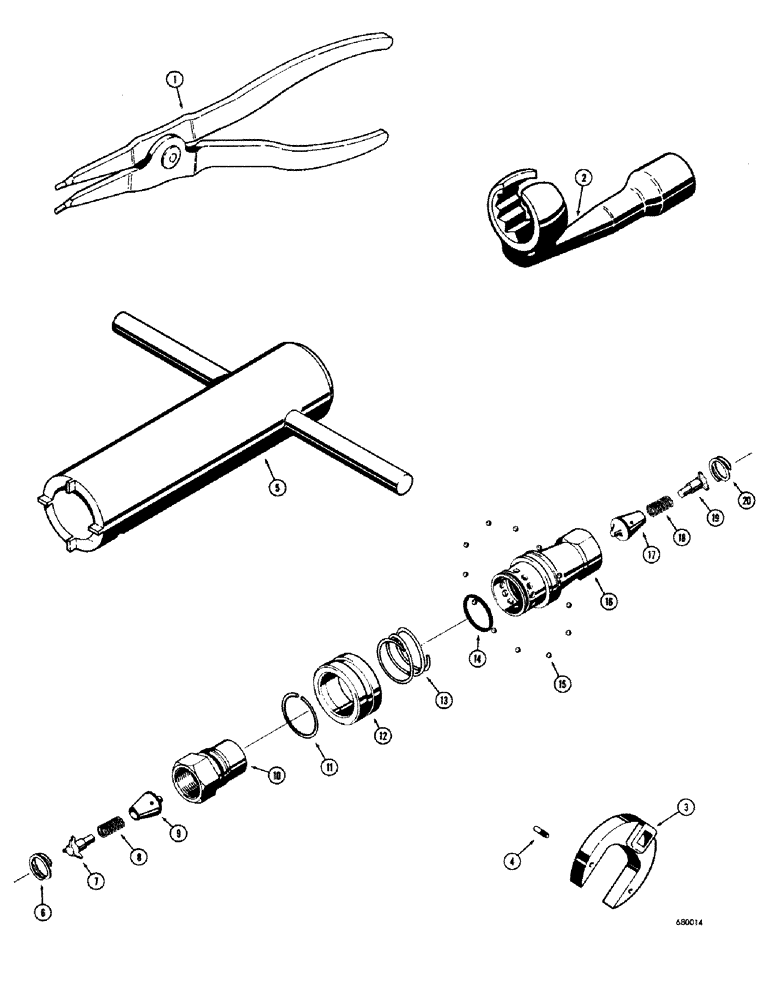

Запчасти Case 680CK (256) - TOOLS (88) - ACCESSORIES

1

D32049

TOOL

PLIERS - snap ring

1шт.

2

D38971

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1" fittings)

1шт.

D27216

TOOL

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/16" fittings)

1шт.

D28774

TOOL ASSY.

WRENCH - crowfoot, 1/2" drive (For backhoe hose 1-1/4" fittings)

1шт.

D44110

OPEN END WRENCH

SET - spanner wrench (For removing and installing packing gland in threaded gland type hydraulic cylinders)

1шт.

3

D44111

OPEN END WRENCH

WRENCH - spanner, for 2-1/2" I.D. cylinder with 1-1/4" or 1-1/2" piston rods (Includes ref. no. 4)

1шт.

D44112

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-1/2" piston rod (Includes ref. no. 4)

1шт.

D44113

OPEN END WRENCH

WRENCH - spanner, for 3" I.D. cylinders with 1-3/4" piston rod (Includes ref. no. 4)

1шт.

D44114

OPEN END WRENCH

WRENCH - spanner, for 3-1/2" I.D. cylinders with 1-3/4" or 2" piston rods (Includes ref. no. 4)

1шт.

D44115

OPEN END WRENCH

WRENCH - spanner, for 4" I.D. cylinders with 2" or 2-1/4" piston rods (Includes ref. no. 4)

1шт.

D44116

OPEN END WRENCH

WRENCH - spanner, for 4-1/2" I.D. cylinders with 2-1/2" piston rods (Includes ref. no. 4)

1шт.

4

D30107

PIN

- spanner wrench, for 2-1/2" I.D. thru 4" I.D. cylinders

3шт.

D44118

SPARE PART

PIN - spanner wrench, for 4-1/2" I.D. cylinders

3шт.

5

D40608

OPEN END WRENCH

WRENCH - spool gland, loader control valve

1шт.

L10904

COUPLING

- male half, hydraulic

1шт.

6

L30617

RING - spiral, valve retaining, hydraulic couplings

1шт.

7

L30616

GUIDE

- valve, hydraulic couplings

1шт.

8

L30618

SPRING - valve, hydraulic couplings

1шт.

9

L30619

VALVE - coupling, hydraulic

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - coupling, male, hydraulic

1шт.

L10905

COUPLING

- female half, hydraulic

1шт.

11

L30621

RING

- retaining, sleeve, hydraulic couplings

1шт.

12

L30623

SLEEVE - ball retaining, hydraulic couplings

1шт.

13

L30622

SPRING - sleeve, hydraulic couplings

1шт.

14

L30620

X

SEAL - "O"ring, hydraulic couplings

1шт.

15

L30157

BALL - coupling, hydraulic

12шт.

16

NSS

NOT SOLD SEPARAT

BODY - coupling, female, hydraulic

1шт.

17

L30619

VALVE - coupling, hydraulic

1шт.

18

L30618

SPRING - valve, hydraulic couplings

1шт.

19

L30616

GUIDE

- valve, hydraulic couplings

1шт.

20

L30617

RING - spiral, valve retaining, hydraulic couplings

1шт.
