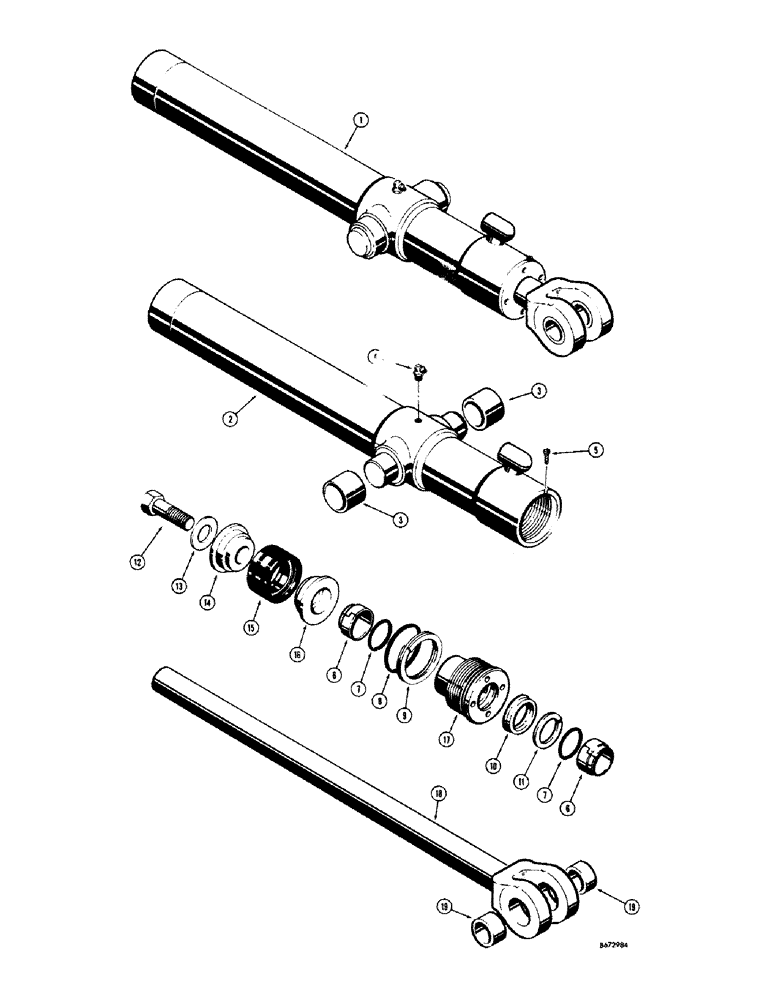

Запчасти Case 680CK (210) - D34739 AND D34740 LOADER DUMP CYLINDERS (84) - BOOMS, DIPPERS & BUCKETS

1

D34739

HYDRAULIC CYLINDER

CYLINDER - hydraulic, dump (R.H.) 3" I.D. x 23-9/16" stroke

1шт.

D34740

HYDRAULIC CYLINDER

CYLINDER - hydraulic, dump (L.H.) 3" I.D. x 23-9/16" stroke (Not illustrated)

1шт.

2

D35102

TUBE

- cylinder, R.H.

1шт.

D35103

TUBE

- cylinder, L.H.(Not illustrated)

1шт.

3

D31511

BUSHING

- tube

2шт.

4

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees (1/8" NPT)

1шт.

D42872

GLAND

KIT - packing, gland type cylinder

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

8

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

9

D28049

RING

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

14

D28896

PISTON

- split, bolt end

1шт.

15

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

16

D28897

PISTON

- split, yoke end

1шт.

17

D45068

GLAND

- packing

1шт.

18

D35098

PISTON

ROD - piston (1-3/4" dia.)

1шт.

19

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod

2шт.
