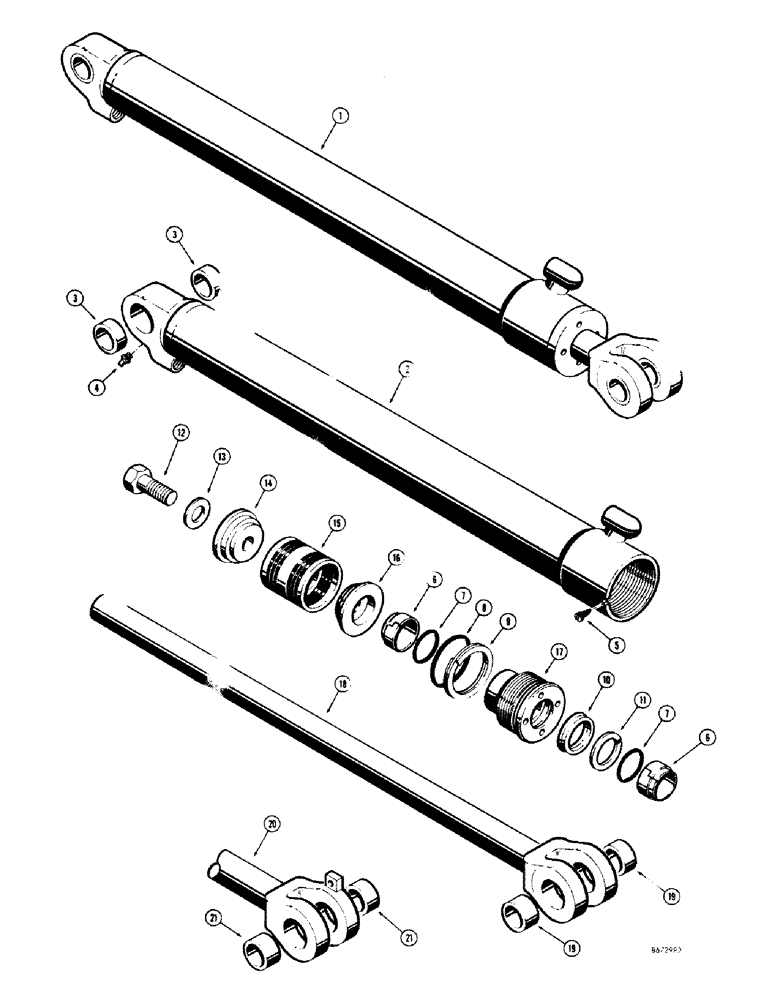

Запчасти Case 680CK (208) - D34742 AND D42738 LOADER LIFT CYLINDERS (84) - BOOMS, DIPPERS & BUCKETS

1

D34742

CYLINDER

- hydraulic, loader lift (L.H.) 3-1/2" I.D. x 31" stroke

1шт.

D42738

CYLINDER ASSY.

CYLINDER - hydraulic, loader lift (R.H.) 3-1/2" I.D. x 31" stroke (Not illustrated)

1шт.

2

D35063

TUBE

- cylinder (L.H.)

1шт.

D35064

TUBE

- cylinder (R.H.) Not illustrated

1шт.

3

D35071

BUSHING

- tube

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

D42874

PACKING GLAND

KIT - packing, gland type cylinder

1шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27380

SCRAPER RING

WIPER - rod

2шт.

7

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O"ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36971

RING

SEAL - rod

1шт.

11

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, rod seal

1шт.

12

D32861

BOLT

- special

1шт.

13

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

1шт.

14

D28367

PISTON

- split, bolt end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28368

PISTON

- split, rod end

1шт.

17

D45070

GLAND

- packing

1шт.

18

D35057

PISTON ROD

ROD - piston, 2" dia. (D34742 L.H. cylinder only)

1шт.

19

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.

20

D42739

ROD ASSY.

ROD - piston, 2" dia. (D42738 R.H. cylinder only)

1шт.

21

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- rod

2шт.
