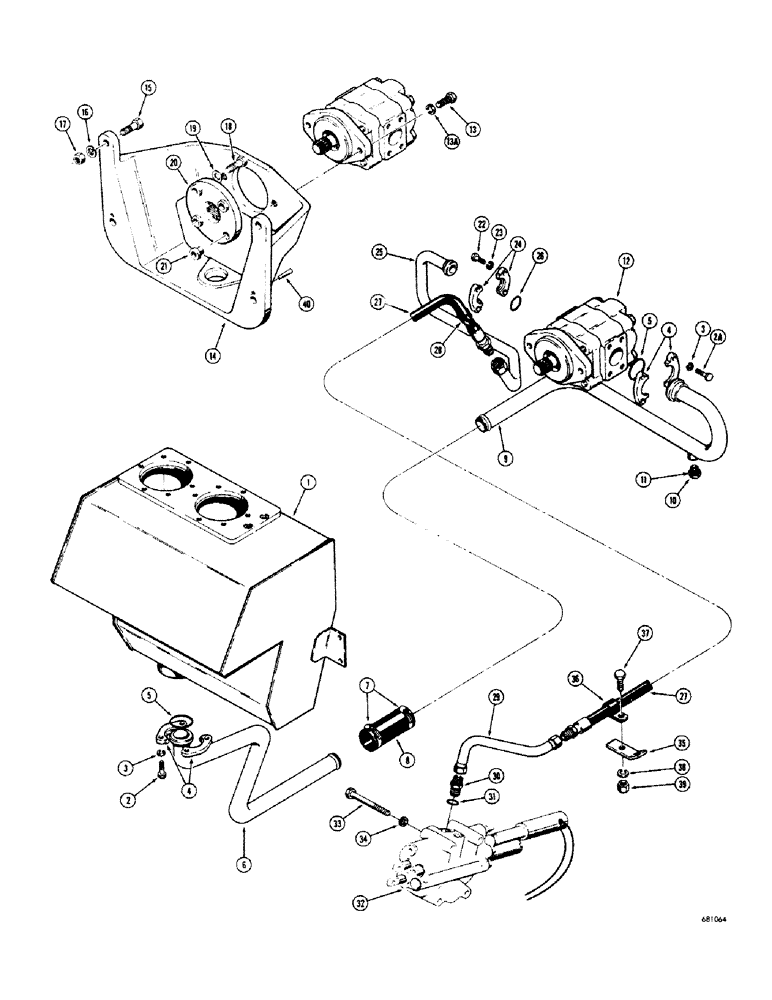

Запчасти Case 680CK (204) - EQUIPMENT HYD., PUMP SUCTION & PRESSURE LINE HYD., USED ON TRAC. S.N. 91019050 & AFTER (84) - BOOMS, DIPPERS & BUCKETS

1

L15192

TANK - hydraulic oil reservior, See Figure 136 for related parts

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

2a

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

A14157

FLANGE

- split, tube (1-1/2")

4шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, flange

2шт.

6

L13705

TUBE - tank to pump, at tank

1шт.

7

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose

2шт.

8

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Low pressure, Tank to pump 1.50" ID

1шт.

9

L15051

TUBE ASSY.

TUBE - tank to pump, at pump

1шт.

10

129998

PLUG,1/2" - 20 ORB

Drain Hex Hd, 1/2"-20 ORB

1шт.

12

L15047

PUMP, HYDRAULIC

PUMP - hydraulic, equipment (32 G.P.M. at 2000 R.P.M. at 2000 P.S.I.), Parts list Figure 252

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13a

92-8

LOCK WASHER,1/2"

2шт.

14

L10793

BRACKET

- pump and engine mounting

1шт.

15

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

17

25-1012

NUT,3/4"-10, G5

4шт.

18

L11274

LOCK BOLT

BOLT - coupling mounting, special

4шт.

19

195-29

WASHER,7/16"

- plain () 7/16"

4шт.

L15046

COUPLING

- pump to crankshaft pulley

1шт.

20

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

21

G36905

BLOCK

BUSHING - hub

4шт.

22

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

23

92-7

LOCK WASHER,7/16"

4шт.

24

A12301

CLAMP,Half

- split, tube (1-1/4")

2шт.

25

L15048

TUBE

- pump to valve, at pump

1шт.

26

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "O"ring

1шт.

27

L11315

HOSE

- pump to valve (39" long)

1шт.

28

R13931

CLAMP

- hose

1шт.

29

L11472

TUBE,1" OD x 12.44, 6.06" L

- pump to valve, at valve

1шт.

30

L12050

CONNECTOR, ELEC

ADAPTER - male, straight (Special)

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

L13755

X

VALVE - hydraulic, loader control (2 spool) Used on models with return to dig feature, Parts list Figure 226

1шт.

33

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

34

92-6

LOCK WASHER,3/8"

3шт.

35

L12696

BRACKET - hose mounting

1шт.

36

R14668

CLAMP

- hose

1шт.

37

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

40

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, alignment

2шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal

1шт.
