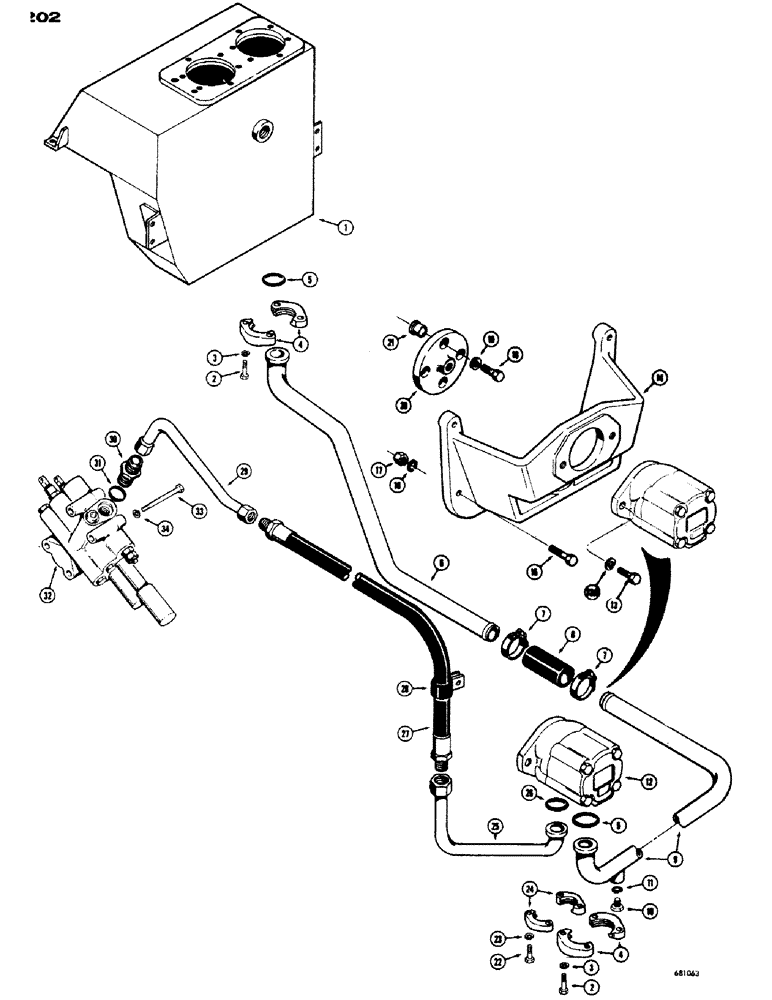

Запчасти Case 680CK (202) - EQUIPMENT HYD., PUMP SECTION & PRESSURE LINE HYD., *USED BEFORE TRACTOR S.N. 9101905 (84) - BOOMS, DIPPERS & BUCKETS

1

L13680

TANK - hydraulic oil reservoir (Order L15192 tank and its related parts for service), See Figure 136 for related parts

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

3

92-8

LOCK WASHER,1/2"

8шт.

4

A14157

FLANGE

- split, tube (1-1/2")

4шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, flange

2шт.

6

L13705

TUBE - tank to pump, at tank

1шт.

7

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

8

A12303

INTAKE AIR HOSE,1.50" ID

x 7.50", SAE 20R1 - Low pressure, Tank to pump 1.50" ID

1шт.

9

L11318

TUBE - tank to pump, at pump 9.44" L

1шт.

10

129998

PLUG,1/2" - 20 ORB

Drain Hex Hd, 1/2"-20 ORB

1шт.

12

L11273

PUMB - hydraulic, equipment (27 G.P.M. at 2000 R.P.M. at 2000 P.S.I.), Parts list Figure 250

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

13a

92-8

LOCK WASHER,1/2"

2шт.

14

L10793

BRACKET

- pump and engine mounting

1шт.

15

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

17

25-1012

NUT,3/4"-10, G5

4шт.

18

L11274

LOCK BOLT

BOLT - coupling mounting, special

4шт.

19

195-29

WASHER,7/16"

- plain () 7/16"

4шт.

L11262

COUPLING - pump to crankshaft pulley

1шт.

20

NSS

NOT SOLD SEPARAT

HUB - splined

1шт.

21

G36905

BLOCK

BUSHING - hub

4шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

23

92-6

LOCK WASHER,3/8"

4шт.

24

A12306

FLANGE

- split, tube (1")

2шт.

25

L11316

TUBE - pump to valve, at pump 1" OD x 6.5, 11.75" L

1шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

27

L11315

HOSE

- pump to valve, (39" long)

1шт.

28

R13931

CLAMP

- hose

1шт.

29

L11472

TUBE,1" OD x 12.44, 6.06" L

- pump to valve, at valve

1шт.

30

L12050

CONNECTOR, ELEC

ADAPTER - male, straight (Special)

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

32

L13755

X

VALVE - hydraulic, loader control (2 spool) Used on models with return to dig feature, Parts list Figure 226

1шт.

33

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

34

92-6

LOCK WASHER,3/8"

3шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, seal

1шт.
