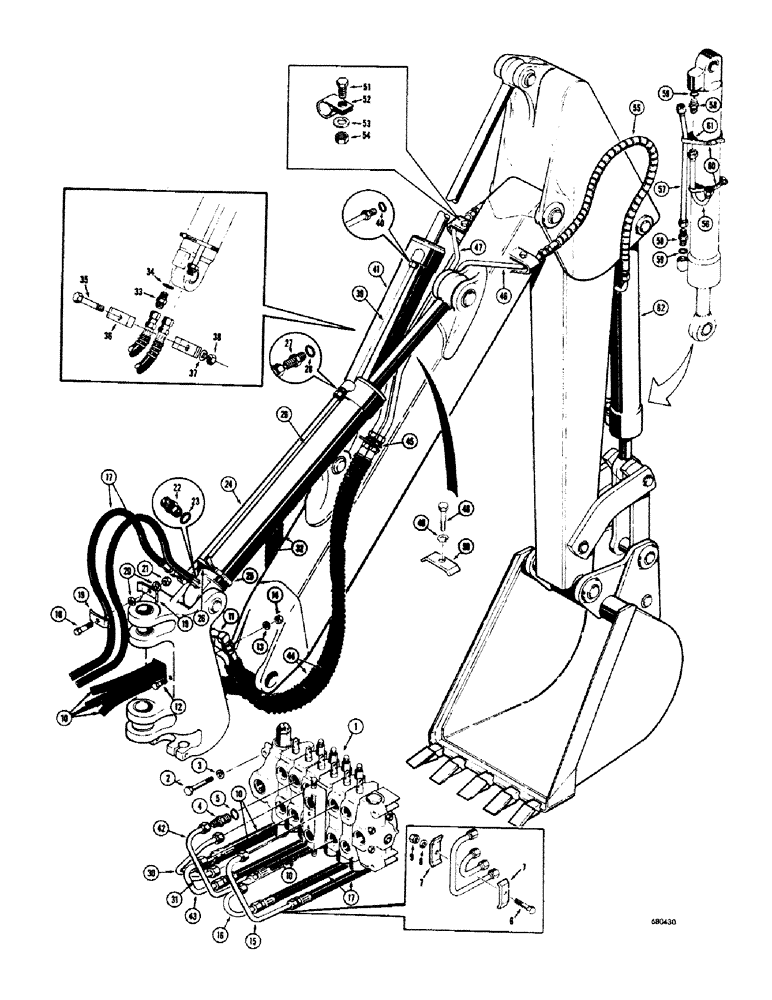

Запчасти Case 680CK (198) - BACKHOE HYD., BOOM, CROWD & BUCKET CYL. HYD., LATE PROD (HOSES ROUTED OUTSIDE OF LOWER BOOM CASTING) (84) - BOOMS, DIPPERS & BUCKETS

1

D38705

VALVE - backhoe control (Parts list Figure 238) Order D44379 backhoe control valve for service

1шт.

D44379

LOCK VALVE

VALVE - backhoe control, Parts list Figure 238

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Lower mounting hole in valve inlet section) Hex, 1/2"-13 x 4", G5

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

(Upper mounting hole in valve inlet section, mounting hole in valve outlet section Hex, 1/2"-13 x 4 1/4", G5

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight

6шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

6

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

3шт.

7

D20045

PLATE ASSY.

CLAMP - tube

6шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

3шт.

9

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16 - 18 NC)

3шт.

10

D42600

HOSE

- crowd and bucket section ports manifold (22-1/2" long)

4шт.

11

D44652

MANIFOLD

- hydraulic routing

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

15

D40649

TUBE

- boom section, upper port, cylinder hydraulics

1шт.

16

D40642

TUBE

- boom section, lower port, cylinder hydraulics

1шт.

17

D42934

HOSE ASSY.

HOSE - boom section ports to boom cylinder (61" long), hydraulics

2шт.

18

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5, Boom cylinder hydraulics

1шт.

19

D42833

CLAMP

- hose, boom cylinder hydraulics

2шт.

20

92-7

LOCK WASHER,7/16"

boom cylinder hydraulics 7/16"

2шт.

21

131-8

LOCK NUT,7/16"-14, GB

NUT, LOCK, , Boom cylinder hydraulics 7/16"-14, GB

1шт.

22

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, boom cylinder hydraulics

1шт.

24

D40653

TUBE - boom cylinder, rod end, hydraulics

1шт.

25

214-275

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

CLAMP - tube to cylinder, boom hydraulics

1шт.

26

D38648

BLOCK

SPACER - clamp, boom cylinder hydraulics

1шт.

27

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., male, straight, boom cylinder

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, boom cylinder hydraulics

1шт.

29

D45503

CYLINDER ASSY.

CYLINDER - hydraulic, boom (4-1/2" I.D. x 39-3/16" stroke), Parts list Figure 222

1шт.

30

D40649

TUBE

- crowd section, upper port, cylinder hydraulics

1шт.

31

D40642

TUBE

- crowd section, lower port, cylinder hydraulics

1шт.

32

D42599

TYRE/TIRE

HOSE - manifold to crowd cylinder (46" long), hydraulics

2шт.

33

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, boom cylinder hydraulics

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, boom cylinder hydraulics

1шт.

35

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Boom cylinder hydraulics Hex, 5/16"-18 x 2", G5

1шт.

36

D33316

CLAMP

- hose, boom cylinder hydraulics

2шт.

37

195-21

WASHER,5/16"

- plain (), Boom cylinder hydraulics 5/16"

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" 18 NC), boom cylinder hydraulics

1шт.

39

D40644

TUBE - crowd cylinder, rod end, hydraulics

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, boom cylinder hydraulics

1шт.

41

D43575

CYLINDER ASSY.

CYLINDER - hydraulic, crowd (4-1/2" I.D. x 35-1/8" stroke), Parts list Figure 224

1шт.

42

D40640

TUBE - bucket section, upport port

1шт.

43

D40651

TUBE

- bucket section., lower port

1шт.

44

D44131

HOSE ASSY.

HOSE - manifold to bucket cylinder, rod end (57" long)

2шт.

45

D26231

NUT

- hex., jam (Special)

2шт.

46

D44132

TUBE - valve to bucket cylinder, R.H.

1шт.

47

D44134

TUBE - valve to bucket cylinder, L.H.

1шт.

48

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

49

92-6

LOCK WASHER,3/8"

1шт.

50

D40236

CLAMP

- tube

1шт.

51

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

52

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- tube

2шт.

53

195-21

WASHER,5/16"

- plain () 5/16"

2шт.

54

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

55

D40657

HOSE ASSY.

HOSE - valve to bucket cylinder (40" long)

2шт.

56

D40655

TUBE

- bucket cylinder, closed end

1шт.

57

D40647

TUBE

- bucket cylinder, rod end

1шт.

58

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight

2шт.

59

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

60

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

61

D38648

BLOCK

SPACER - clamp

2шт.

62

D42628

CYLINDER

- hydraulic, bucket (4" I.D. x 27-1/4 stroke), Parts list Figure 218

1шт.
