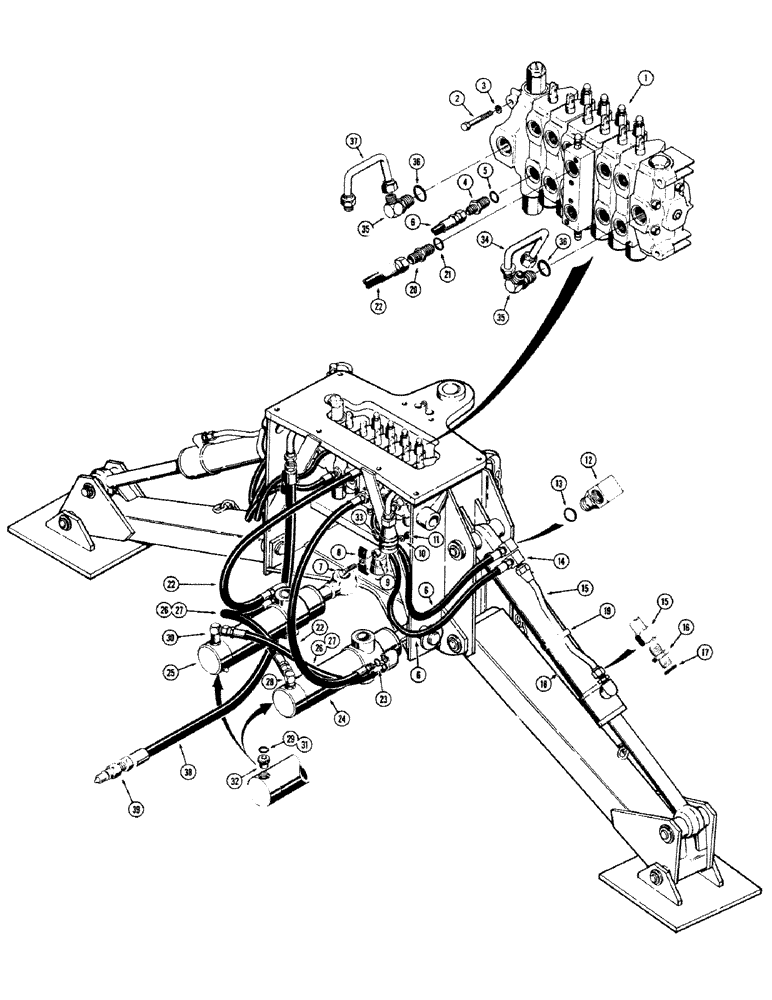

Запчасти Case 680CK (192) - BACKHOE HYDRAULICS, SWING, STABILIZER (84) - BOOMS, DIPPERS & BUCKETS

1

D38705

VALVE - backhoe control (Parts list Figure 238) Order D44379 backhoe control valve for service

1шт.

D44379

LOCK VALVE

VALVE - backhoe control, Parts list Figure 238

1шт.

2

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Lower mounting hole in valve inlet section) Hex, 1/2"-13 x 4", G5

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

(Upper mounting hole in valve inlet section, mounting hole in valve outlet section) Hex, 1/2"-13 x 4 1/4", G5

2шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, stabilizer cylinder hydraulics

4шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

6

D40809

HOSE

- valve to stabilizer cylinders (33-1/2" long), hydraulics

4шт.

7

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Stabilizer cylinder hydraulics Hex, 5/16"-18 x 2 1/4", G5

2шт.

8

D33316

CLAMP

- hose, stabilizer cylinder hydraulics

2шт.

9

D33829

BUSHING

SPACER - clamp, stabilizer cylinder hydraulics

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16"), stabilizer cylinder hydraulics

2шт.

11

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), stabilizer cylinder hydraulics

2шт.

12

D23974

ELBOW

- adjustable, 90 degrees (Stabilizer cylinder-closed end), hydraulics

2шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

14

D26361

FITTING

ELBOW - female, 90 degrees, stabilizer cylinder hydraulics

2шт.

15

D43621

TUBE

- valve to stabilizer cylinder, rod end, stabilizer cylinder hydraulics

2шт.

REF#15 COULD USE D40810 10/31/96

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, stabilizer cylinder hydraulics

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, stabilizer cylinder hydraulics

1шт.

18

D42708

CYLINDER - hydraulic, stabilizer (4" I.D. x 21-3/8" stroke), Parts list Figure 214

2шт.

19

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - hose, stabilizer cylinder hydraulics

2шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight, swing cylinder hydraulics

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

22

D37219

HOSE

- valve to swing cylinders (30" long)

2шт.

24

D37626

HYDRAULIC CYLINDER

CYLINDER - hydraulic, R.H. swing (4" I.D. x 11" stroke), Parts list Figure 220

1шт.

25

D37625

CYLINDER ASSY.

CYLINDER - hydraulic, L.H. swing (4" I.D. x 11" stroke), Parts list Figure 220

1шт.

26

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- crossover, swing cylinders (23-1/2" long), hydraulics

2шт.

28

D25667

ELBOW

- ajustable, 90 degrees (R.H. swing cylinder), hydraulics

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

30

D36934

FITTING

ELBOW - adjustable, 90 degrees (L.H. swing cylinder), hydraulics

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

32

D41462

FITTING

RESTRICTOR - flow control, swing cylinder hydraulics

2шт.

33

L10905

COUPLING

- female, Parts list Figure 256, inlet and outlet hydraulics

1шт.

34

D43517

TUBE

- inlet, inlet and outlet hydraulics

1шт.

35

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, inlet and outlet hydraulics 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

36

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, inlet and outlet hydraulics

1шт.

37

D43518

TUBE

- outlet, inlet and outlet hydraulics

1шт.

38

L10903

HOSE ASSY.

HOSE - valve to reservoir, inlet and outlet hydraulics

1шт.

39

L10904

COUPLING

- male, Parts list Figure 256, inlet and outlet hydraulics

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O"ring, swing cylinder hydraulics

1шт.
