(182) - BACKHOE BUCKETS (OPTIONAL TYPES), TRENCHING BUCKETS (MACHINERY ITEM)

Запчасти Case 680CK (182) - BACKHOE BUCKETS (OPTIONAL TYPES), TRENCHING BUCKETS (MACHINERY ITEM) (84) - BOOMS, DIPPERS & BUCKETS

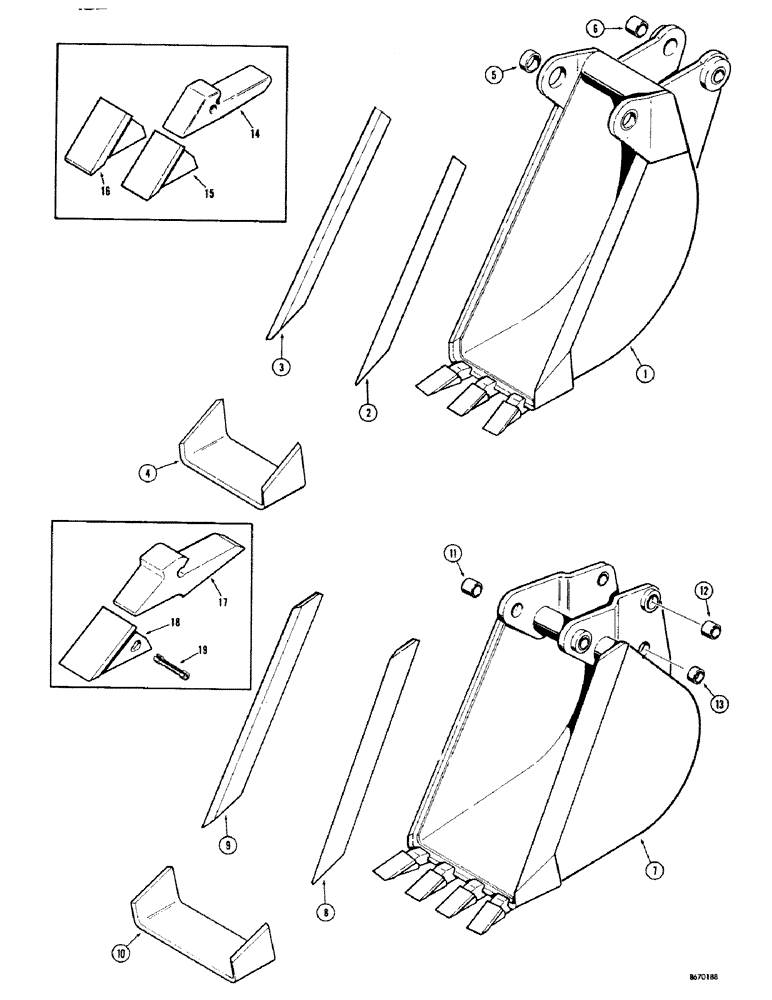

Схема запчастей Case 680CK - (182) - BACKHOE BUCKETS (OPTIONAL TYPES), TRENCHING BUCKETS (MACHINERY ITEM) (84) - BOOMS, DIPPERS & BUCKETS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D37472

BUCKET - backhoe, trenching (12 inch)

1шт.

2

D29424

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

3

D29423

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

4

D37464

EDGE, CUTTING

BLADE - cutting, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper arm

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

2шт.

7

D37473

BUCKET

- backhoe, trenching (18 inch)

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37642

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper bucket link pin hole

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole

2шт.

7

D37474

BUCKET

- backhoe, trenching (24 inch)

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37507

EDGE

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper bucket link pin hole

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole

2шт.

7

D37475

BUCKET

- backhoe, trenching (30 inch)

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37505

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper bucket link pin hole

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole

2шт.

7

D37476

BUCKET

- backhoe, trenching (36 inch)

1шт.

8

D21606

EDGE, CUTTING

BLADE - cutting, R.H. side

1шт.

9

D21605

EDGE, CUTTING

BLADE - cutting, L.H. side

1шт.

10

D37471

EDGE, CUTTING

BLADE - cutting, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper arm

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper bucket link pin hole

2шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- bucket, lower bucket link pin hole

2шт.

14

D26368

SUPPORT

SHANK - tooth, bucket teeth (standard)

1шт.

15

D27748

TOOTH

POINT - tooth (Standard), bucket teeth

1шт.

16

D36720

TOOTH

POINT - tooth, service option (Heavy duty), bucket teeth (standard)

1шт.

D41659

TOOTH

ASSEMBLY - backhoe bucket (Service option on all buckets), teeth (service option)

1шт.

17

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket teeth (service option)

1шт.

18

D39093

TOOTH

POINT - tooth, bucket teeth (service option)

1шт.

19

D39094

BUCKET TOOTH KEY

FLEX PIN - point, bucket teeth (service option)

1шт.
