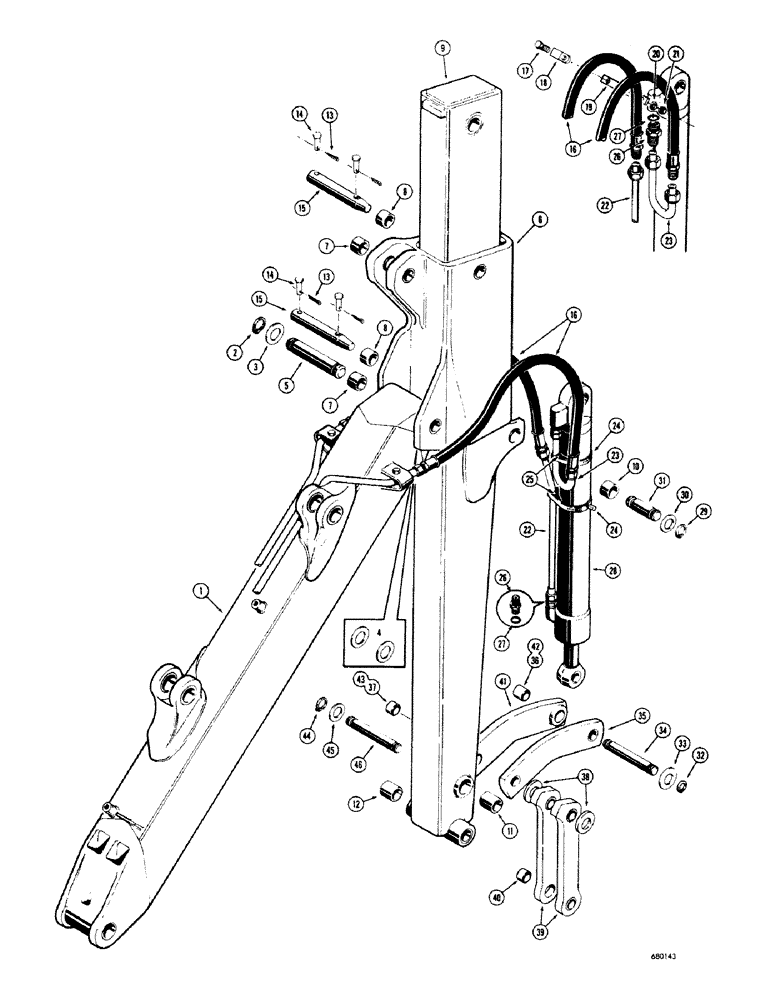

Запчасти Case 680CK (178) - EXTENDABLE DIPPER (84) - BOOMS, DIPPERS & BUCKETS

1

D44363

BOOM - backhoe, See Figure 174 for bushings and spacers

1шт.

2

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, steel (2-1/16")

2шт.

4

D37449

SHIM,.0747" Thk

- 1/16" thick

1шт.

5

D37609

PIN

- boom to dipper arm

1шт.

D38900

COLLAR ASSEMBLY - dipper extension

1шт.

6

NSS

NOT SOLD SEPARAT

COLLAR - dipper extension

1шт.

7

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- collar, at crowd cylinder and boom

4шт.

8

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- collar, positioning pin

4шт.

D38906

DIPPER ARM ASSEMBLY - extension

1шт.

9

NSS

NOT SOLD SEPARAT

DIPPER ARM - extension

1шт.

10

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper arm, at bucket cylinder

2шт.

11

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- dipper arm, at bucket link

2шт.

12

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper arm, at bucket

2шт.

13

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

14

A10123

PIN - clevis

4шт.

15

D38902

PIN - dipper extension positioning

2шт.

16

D40727

HOSE - to bucket cylinder (60" long)

2шт.

17

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

18

D39138

CLAMP

- hose

2шт.

19

D39124

SPACER BAR - hose

1шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

21

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

22

D40647

TUBE

- to bucket cylinder, rod end

1шт.

23

D40655

TUBE

- to bucket cylinder, closed end

1шт.

24

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - tube to cylinder

2шт.

25

D38648

BLOCK

SPACER - tube clamp

2шт.

26

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - male, straight

2шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

28

D42628

CYLINDER

- hydraulic, bucket (4" I.D. x 27-1/4" stroke), Parts list Figure 218

1шт.

29

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

30

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- falt, steel (1-13/16")

2шт.

31

D38907

PIN,1.75" OD x 5 5/16 L

- bucket cylinder to dipper arm

1шт.

32

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

33

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

2шт.

34

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - bucket cylinder to bucket linkage

1шт.

35

D37445

LINK

- bucket cylinder to dipper arm, R.H.

1шт.

36

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket cylinder

1шт.

37

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, at dipper arm

1шт.

38

D39261

WASHER

SPACER - bucket linkage, 5/16" thick

2шт.

39

D37452

LINK

- bucket, Serial Range: cylinder-bucket

2шт.

40

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

2шт.

41

D37444

LINK

- bucket cylinder to dipper arm, L.H.

1шт.

42

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket cylinder

1шт.

43

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, at dipper arm

1шт.

44

D25279

SNAP RING,M35, Int

RING - retaining

2шт.

45

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special, 1/8" thick

2шт.

46

D39256

AXLE PIN,38.1mm OD x 238.13mm L

PIN - bucket linkage to dipper arm

1шт.
